Dorner FlexMove Gearmotors

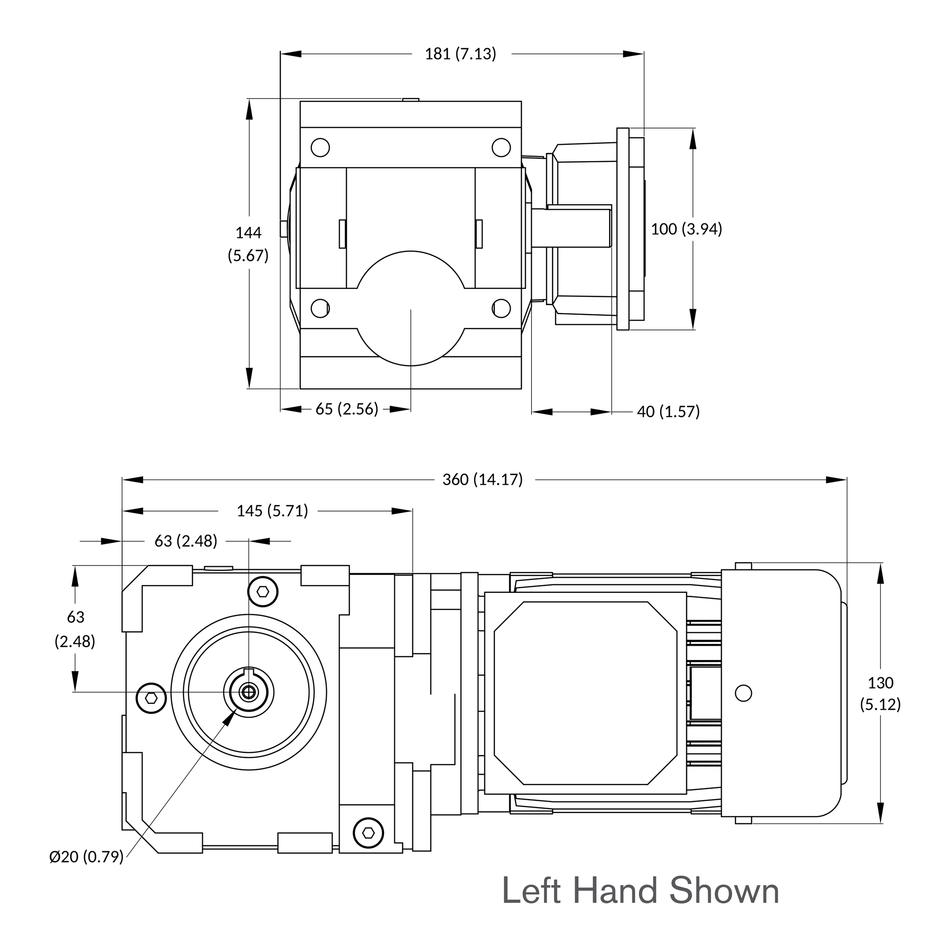

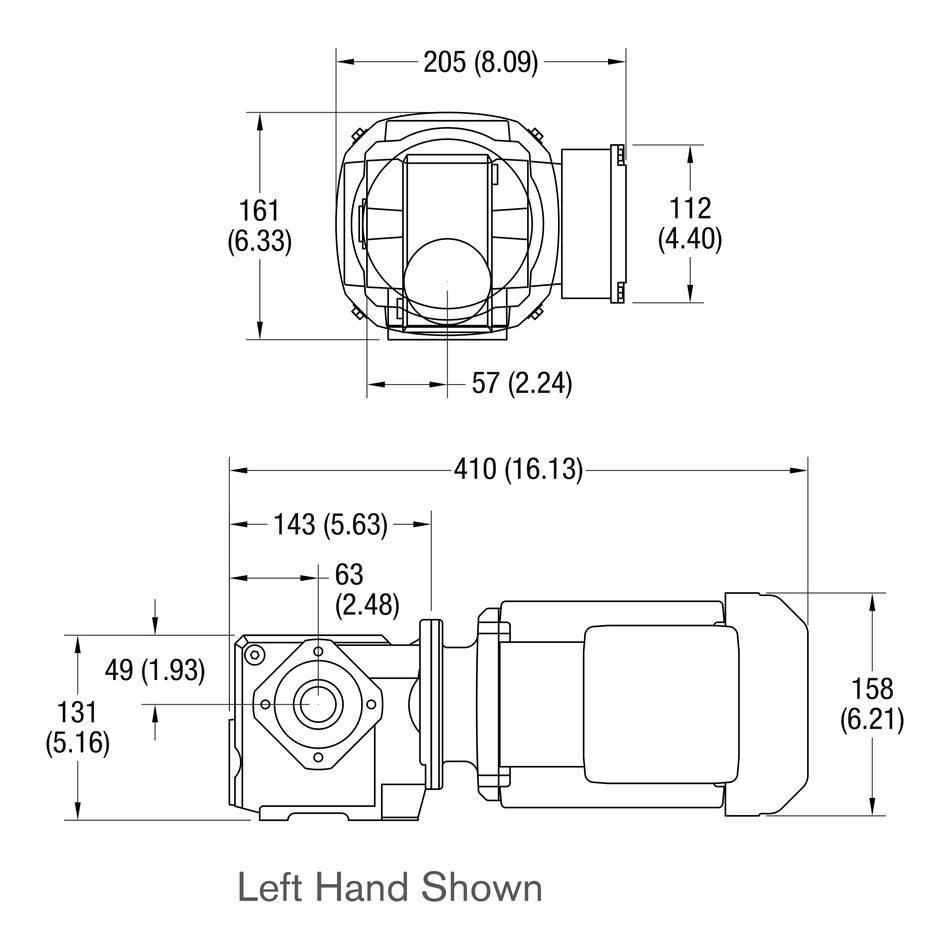

Shop gearmotors for Dorner FlexMove conveyor drive units. The FMM (60 Hz, 0.25 to 1.5 Hp, 13 to 171 RPM) and FMZ (50 Hz, 0.25 to 1.5 kW, 13 to 216 RPM) series are SEW gearmotors for fixed-speed or VFD operation, offered in direct and suspended mount and in left- and right-hand versions. They pair with FlexMove drive units that use a 20 mm shaft. Dorner's 32M NEMA 56C 90° right angle gearmotors, in 0.5 Hp fixed-speed and 0.75 Hp VFD models, pair with FlexMove drive units that use a 3/4 in shaft.

Match the hand, mounting style and output speed to your drive unit before ordering; each product page lists the full motor specs. These motors are listed for FlexMove drive units. Dorner's FlexLink interchangeability list doesn't cover motors, so if you're powering a FlexLink line, contact us with your drive details first. The 32M units also fit Dorner 2200 and 3200 Series conveyors; see all conveyor gearmotors, or return to Dorner FlexMove parts.
