Home» Conveyor Gearmotors» Dorner FlexMove Gearmotors» Dorner FMM129RDS423EN FlexMove Gearmotor, Fixed Speed or VFD, Direct Mount SEW, Right Hand, 0.25 Hp, 13 RPM

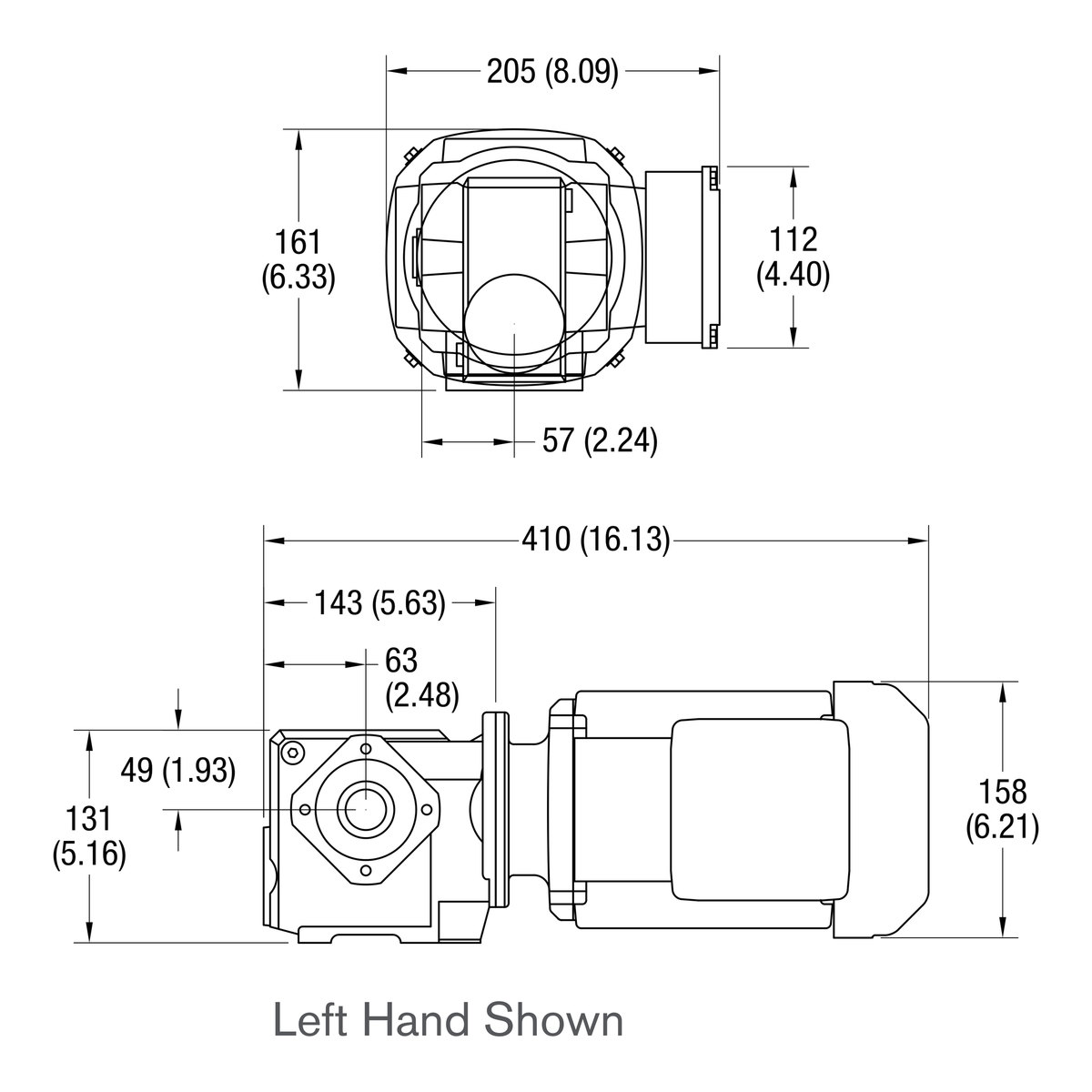

Dorner FlexMove Direct Mount SEW gearmotor dimensional drawing

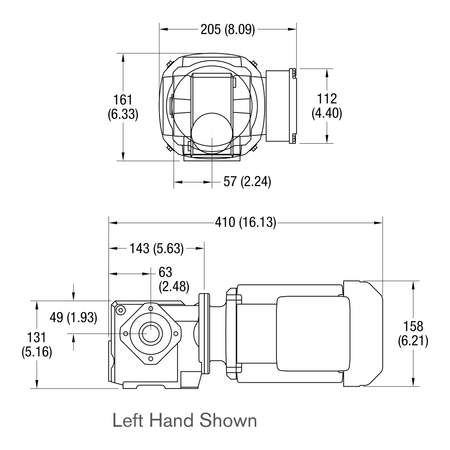

Dorner FlexMove Direct Mount SEW gearmotor dimensional drawing
Dorner

Dorner FMM129RDS423EN FlexMove Gearmotor, Fixed Speed or VFD, Direct Mount SEW, Right Hand, 0.25 Hp, 13 RPM

SKU: FMM129RDS423EN
Estimated ship time:30 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,492.00

Dorner FlexMove direct mount SEW SA37-size gearmotor, right-hand, for FlexMove direct-drive units ordered with a 20 mm drive shaft. Rated for fixed-speed operation or variable-speed operation with a VFD.

0.25 Hp (0.18 kW), 13 RPM, 837 in-lb (95 Nm), 230/460 V, 3 phase, 60 Hz, 1.1 / 0.56 A.

Chain speed at 60 Hz: 17.1 ft/min (5.2 m/min) on FK, FS, FM, FU and FV systems; 18 ft/min (5.5 m/min) on FC and FL systems.

Sealed, totally enclosed fan-cooled. Wiring by others. Right-hand gearmotors match right-hand drive units. When buying a gearmotor without a starter, supply your own on/off switch and motor overload protection.
  • Conveyor Series
    • FlexMove
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 13
  • Output Torque (in-lb) 837
  • Output Torque (Nm) 95
  • Motor Power (Hp) 0.25 Hp
  • Motor Power (kW) 0.18
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible)
  • Full Load Amps 1.1 / 0.56 A
  • Motor Mount SEW SA37
