Home » Dorner 32M020ES411FN Gearmotor, Fixed Speed, 90° Right Angle, 0.5 Hp, 86 RPM

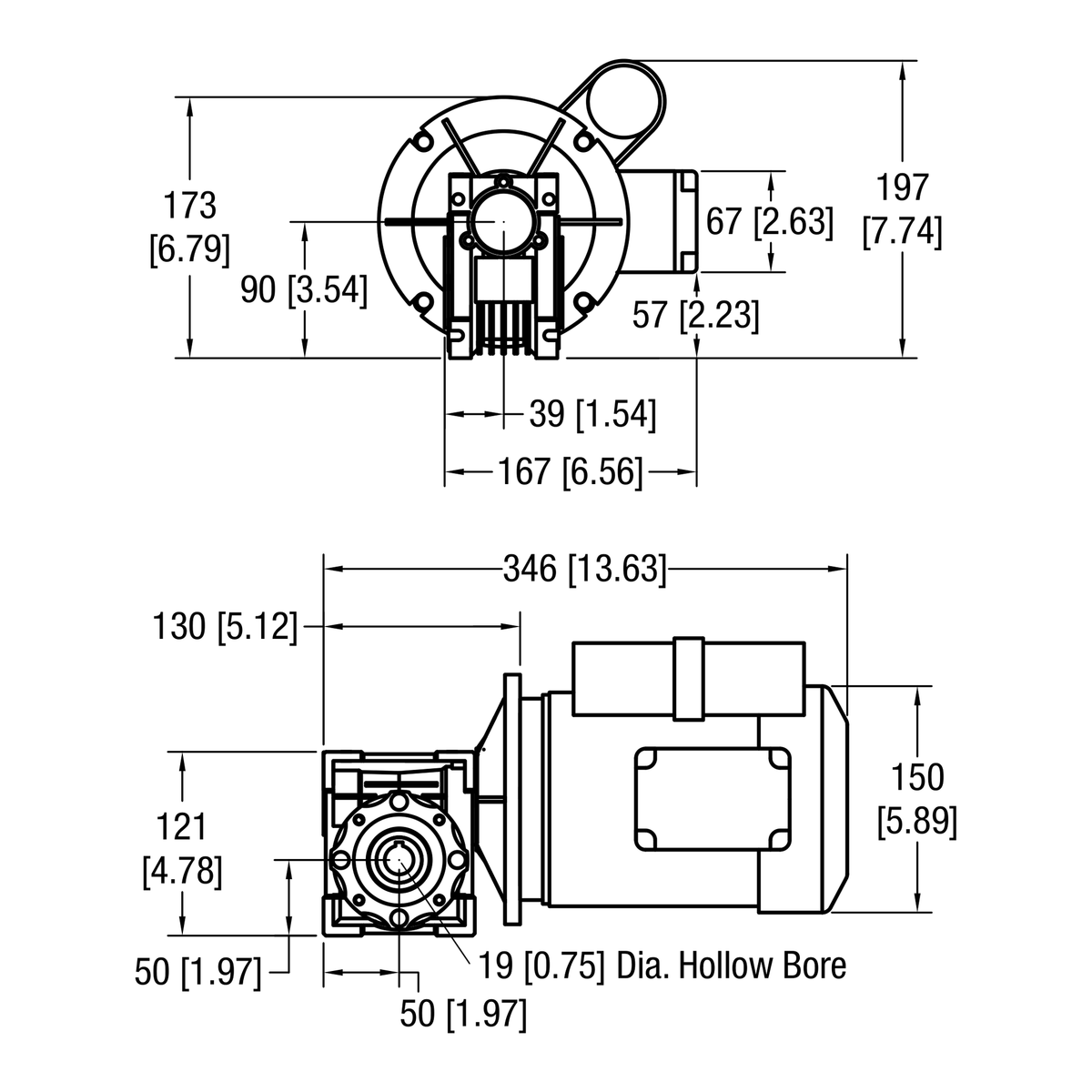

Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing

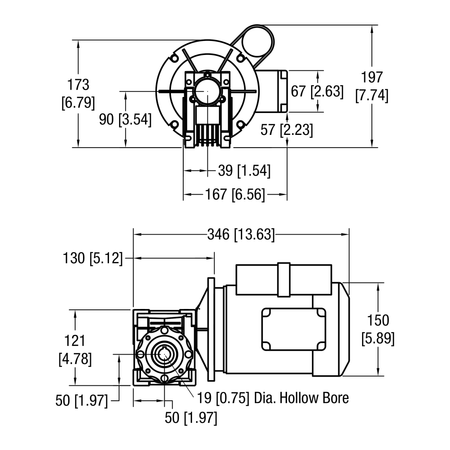

Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner

Dorner 32M020ES411FN Gearmotor, Fixed Speed, 90° Right Angle, 0.5 Hp, 86 RPM

SKU: 32M020ES411FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$986.00

Standard load E-Drive 90 Degree Fixed Speed gearmotor, .5 Hp (.37kw), 115 volt, 1 phase, 60 Hz, 86 RPM. Includes on/off switch, cord, and overload protection. Uncrated weight = 31lb (14kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 86
  • Gear Ratio 20:1
  • Output Torque (in-lb) 285
  • Output Torque (Nm) 32.2
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 115V
  • Phase 1 phase
  • Frequency 60 Hz
  • Full Load Amps 5.7 A
  • Motor Mount NEMA 56C
  • Weight 31 lb
