PM635KT Motorized Conveyor Roller
Couldn't load pickup availability
- Manufacturer Catalog Download

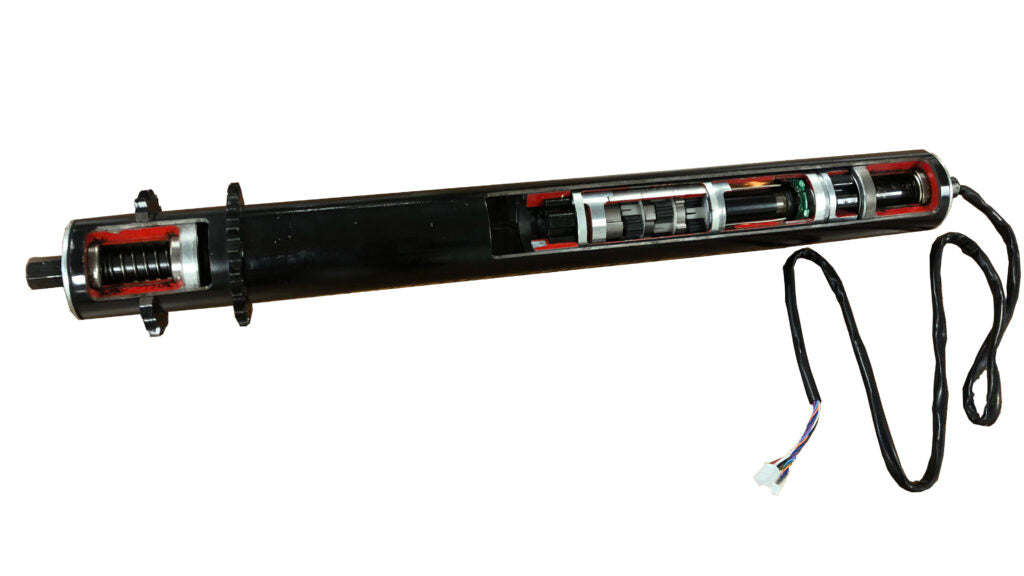

The Itoh Denki PM635KT is a heavy-duty 24V DC brushless motorized roller with a 2.50" (63.5 mm) diameter, a 7 amp motor, and a 12 pin connector — designed for high torque pallet handling applications. Featuring 11/16" threaded hex shafts, single shaft mounting, a spring-loaded shaft, and a standard 1000 mm power cable, the PM635KT pairs with the high torque CBK-109F, HBK-608F, and IB-E04F driver card families. It supports brake and sprocket options, and delivers exceptional tangential force across three gear stages for demanding conveyor environments.
Key Features
- Brushless DC motor provides long life
- 11/16" threaded hex shafts standard
- ABEC 1 bearings
- DOM, carbon steel tube
- Heavy duty pallet handling
- 7 amp motor driven roller
- One shaft mounting, cable side
- Standard 1000 mm (39.37") power cable
- Standard 12 pin connector
- Brake option: 13 pin connector
- Spring loaded shaft roller
- Mounting brackets included with roller purchase
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature 32~104°F (0~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 0.5G
Protection
- Thermal overload 221°F (105°C) in the motor when used with an Itoh Denki controller
Specifications
| Diameter | 2.50" (63.5 mm) |
| Voltage | 24V DC |
| Shaft Type | 11/16" threaded hex shaft (standard) |
| Shaft Mounting | One shaft mounting, cable side — spring loaded |
| Tube Material | DOM, carbon steel |
| Connector | 12 pin (standard); 13 pin (brake option) |
| Motor Current Rating | 7 amp |
| Standard Cable Length | 1000 mm (39.37") |
| Gear Stages Available | 1, 2, and 3 |
Available Options
- Sprockets (OS) — Available types: 40A21, 50A17, 50A18, 60A15, or 60A16. Sprocket type, quantity, and locations must be specified in the part number.
- Brake (BR) — Built-in electro-magnetic brake; 13 pin connector required. Available with 16, 28, and 60 speed code options.
Option availability varies. Some options cannot be combined. Contact us for part number configuration assistance.
Available Endcap & Tube Options
- Poly V End Cap (VG) — For poly V belt drive
Applicable Driver Cards
| CBK-109F | Driver Card — 12 pin connector. Designed for high torque rollers (up to 7A). Variable speed control for up to 20 speeds. Available for rollers with built-in brakes (CBK-109B, 13 pin connector). PNP (CBK-109FP) or NPN (CBK-109FN) output. |
| HBK-608F | 2 Zone ZPA Hybrid Driver Card — 12 pin connector. Controls up to 2 Power Mollers. Built-in Zero Pressure Accumulation (ZPA) logic with Flexible Zone Recognition. Available in PNP (HBK-608FP) or NPN (HBK-608FN) output. |
| IB-E04F | 2 Zone Ethernet/IP Controller — 12 pin connector. Controls up to 2 Power Mollers. EtherNet/IP Conformance Tested. Rockwell Automation AOP available. Built-in DLR technology. Available in PNP (IB-E04FP) or NPN (IB-E04FN) output. |
Tube Length Considerations
- Standard / no options: TL = BF − 20 mm
- VG (Poly V end cap): TL = BF − 66 mm
- OS (Sprockets): TL = BF − 20 mm
Contact an Itoh Denki representative to review your specific application.
Minimum Tube Lengths
| Configuration | Gear Stage 1 | Gear Stage 2 | Gear Stage 3 |
|---|---|---|---|
| Spring loaded shaft | 360 mm (14.17") | 380 mm (14.96") | 400 mm (15.75") |
| Spring loaded + sprockets | 360 mm (14.17") | 380 mm (14.96") | 400 mm (15.75") |
| Spring loaded + brake | 360 mm (14.17") | 380 mm (14.96") | 400 mm (15.75") |
Mounting Brackets & Accessories
1 mounting bracket is required for this roller. Brackets are included with roller purchase.
- Standard Threaded Hex Shaft: P-0D1 (hex flat up) / P-0E1 (hex point up)
- Thrust collar nuts to be tightened to 110.6 lb·ft ± 10%
Need a Quote or Configuration Help?
The PM635KT is custom made to order. Our team can help you configure the right part number, verify driver card compatibility, and provide pricing for your pallet handling application.
Request a QuoteAll Itoh Denki motorized conveyor rollers are custom made to order. Option availability varies between models and some options cannot be combined. Specifications are subject to change without prior notice. Please contact us for assistance with part number configuration.
