CBK-109F Driver Card

SKU: CBK-109F
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below
Ordering Variants

Output type must be specified when ordering. Select a variant below for details and pricing.

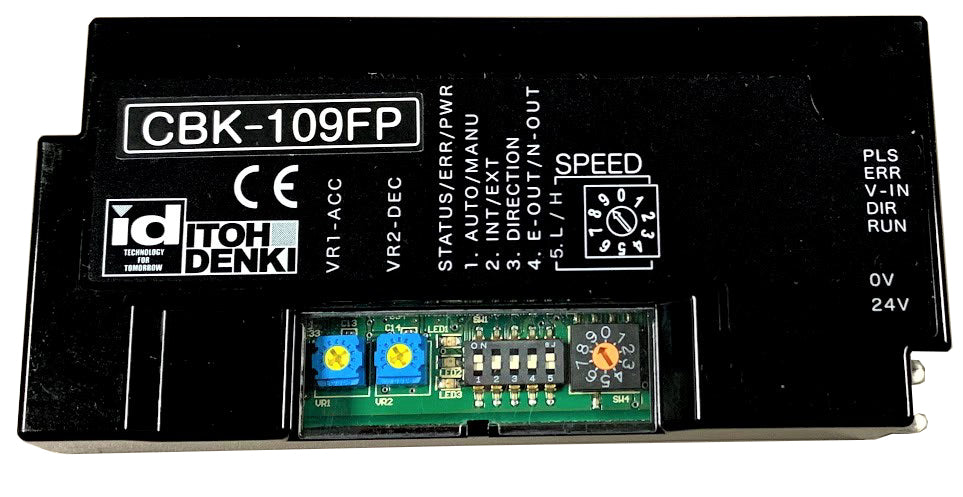

The Itoh Denki CBK-109F is a single-zone driver card with a 12 pin connector, purpose-built for high-torque Power Moller® rollers drawing up to 7A. It provides up to 20 speed settings through a DIP switch and rotary switch combination or external voltage input, with dynamic brake control, adjustable acceleration/deceleration (0 to 2.5s), and stable speed functionality. Available in PNP output (CBK-109FP) and NPN output (CBK-109FN) — output type must be specified when ordering. A brake variant (CBK-109B, 13 pin connector) is also available.

Key Features

  • Simple operation
  • Designed for high-torque PM486FH, PM570KT, and PM635KT (up to 7A)
  • 3 LEDs to identify error type and occurrence count
  • Dynamic brake control
  • Stable speed function for consistent transfer across varying loads
  • Variable speed: DIP switch + rotary switch or external voltage input (up to 20 speeds)
  • Direction control by onboard DIP switch or external signal input
  • Adjustable acceleration and deceleration time (0 to 2.5s)
  • Manual or automatic recovery of thermal overload
  • Forcibly stops motor if lock or thermal error exceeds 4 seconds
  • Includes mounting hardware and wiring connectors

Operation

  • Continuous or intermittent duty
  • Minimum cycle: 1s ON; 1s OFF
  • Do not exceed 150% of no-load speed

Environment

  • Ambient temperature 32~104°F (0~40°C)
  • < 90% relative humidity (no condensation)
  • No corrosive gases
  • Vibration < 0.5G

Protection

  • Thermal overload 185°F (85°C) on PCB
  • 10A fuse to power supply
  • Diode protection for incorrect wiring

Specifications

Connector 12 pin
Speed Settings 20 (DIP switch + rotary switch or external voltage)
Maximum Current 7A
Output Type PNP (CBK-109FP) or NPN (CBK-109FN) — must specify when ordering
Brake Variant CBK-109B (13 pin connector)
Dimensions 129 mm x 59 mm (5.08" x 2.32")
Power Connector WAGO #734-102 (included)
Control Connector WAGO #733-105 (included)

Compatible Power Moller® Rollers

PM486FH 1.91" (48.6 mm) dia. — High torque, high speed, dual shaft mounting, 12 pin connector
PM570KT 2.24" (57.0 mm) dia. — High torque belted conveyor roller, Intralox MDR sprocket compatible
PM635KT 2.50" (63.5 mm) dia. — Heavy duty pallet handling, 7 amp, 12 pin connector

Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
