HBK-608F Driver Card

SKU: HBK-608F
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below
Ordering Variants

Output type must be specified when ordering. Select a variant below for details and pricing.

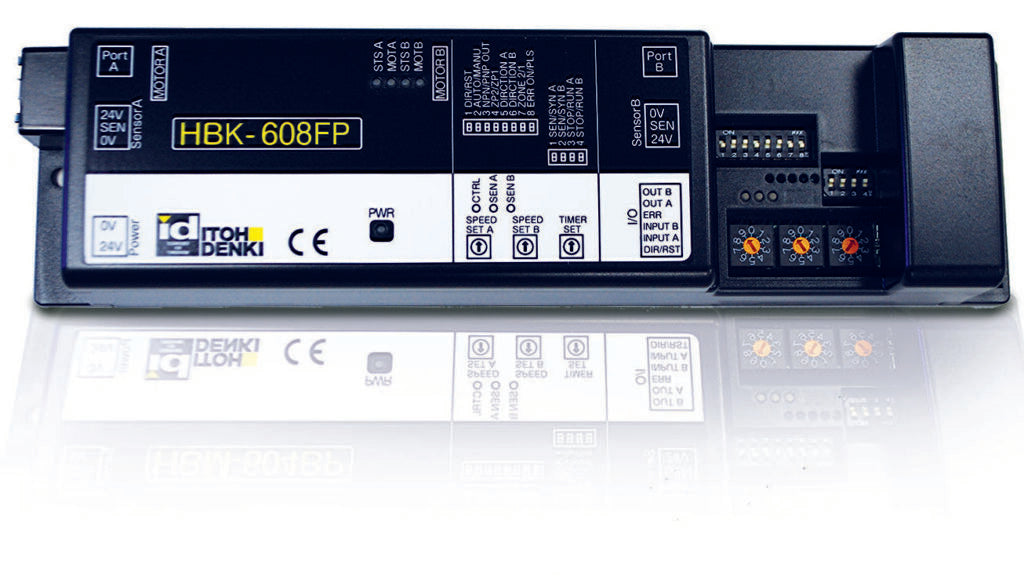

The Itoh Denki HBK-608F is a 2-zone ZPA hybrid driver card with a 12 pin connector that controls up to 2 high-torque Power Moller® rollers. It includes built-in Zero Pressure Accumulation logic, 2 sensor connections, daisy-chain communication between adjacent cards, and can handshake signals with the IB-E04F Ethernet/IP controller. Available in PNP output (HBK-608FP) and NPN output (HBK-608FN) — output type must be specified when ordering.

Key Features

  • Controls up to 2 Power Mollers
  • 2 sensor connections that power and receive sensor output
  • Variable speed control by rotary switch
  • Direction control by onboard DIP switch or external signal input
  • Built-in Zero Pressure Accumulation (ZPA) control logic
  • Flexible Zone Recognition for long articles spanning multiple sensors
  • Daisy-chain wiring between adjacent HBK-608F cards
  • Can handshake signals with IB-E04F Ethernet/IP controllers

Operation

  • Continuous or intermittent duty
  • Minimum cycle: 1s ON; 1s OFF
  • Do not exceed 150% of no-load speed

Environment

  • Ambient temperature 32~104°F (0~40°C)
  • < 90% relative humidity (no condensation)
  • No corrosive gases
  • Vibration < 0.5G

Protection

  • Thermal overload 185°F (85°C) on PCB
  • Two 10A fuses (one per motor)
  • Protection from incorrect wiring (reverse polarity)

Specifications

Connector 12 pin
Zones 2
Motor Control Up to 2 Power Mollers
Output Type PNP (HBK-608FP) or NPN (HBK-608FN) — must specify when ordering
Dimensions 220 mm x 58 mm (8.66" x 2.28")
Power Connector WAGO #231-302/026-000 (included)
Sensor Connector WAGO #733-103 (included)
External Control WAGO #733-106 (optional, not included)

Compatible Power Moller® Rollers

PM486FH 1.91" (48.6 mm) dia. — High torque, high speed, dual shaft mounting, 12 pin connector
PM570KT 2.24" (57.0 mm) dia. — High torque belted conveyor roller, Intralox MDR sprocket compatible
PM635KT 2.50" (63.5 mm) dia. — Heavy duty pallet handling, 7 amp, 12 pin connector

Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
