IB-E04F Driver Card
Couldn't load pickup availability
- Manufacturer Catalog Download

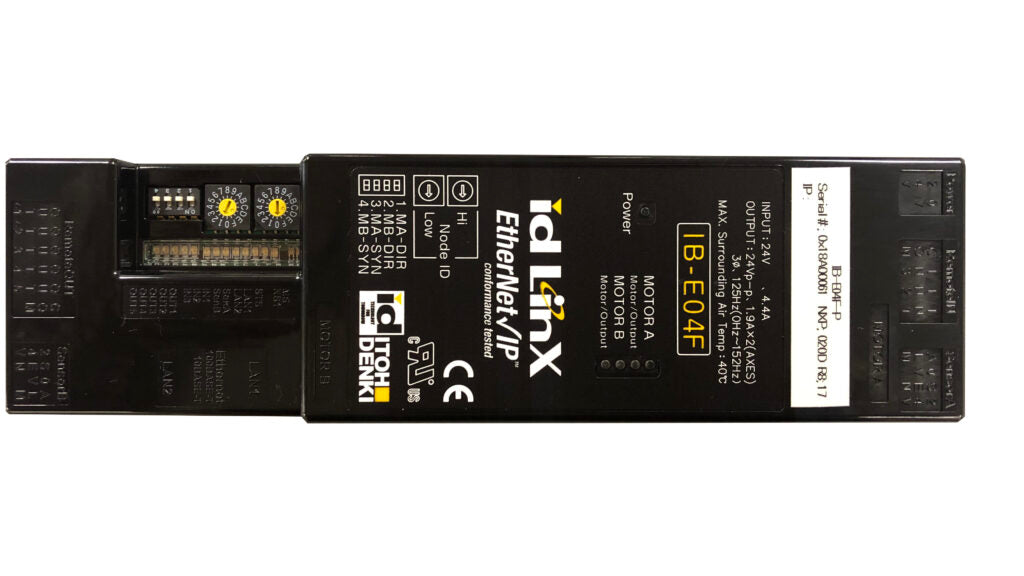

The Itoh Denki IB-E04F is a 2-zone Ethernet/IP controller with a 12 pin connector that controls up to 2 high-torque Power Moller® rollers. It operates using local logic or upper-level PLC control, features built-in Device Level Ring (DLR) technology, a 2-port Ethernet switch, life cycle monitoring, and Rockwell Automation AOP support. A corrosion-resistant, high-temperature variant (IB-E04F-CR-HT.1) is also available with a different physical footprint. Available in PNP output (IB-E04FP) and NPN output (IB-E04FN) — output type must be specified when ordering.
Key Features
- Controls up to 2 Power Mollers
- Direct connection for 2 photo-sensors (powers and receives output)
- I/O device: 3 discrete inputs, 5 discrete outputs
- Local logic or upper-level PLC control
- Built-in Device Level Ring (DLR) for continuous communication
- Life cycle monitoring: displays remaining useful motor life
- 2-port Ethernet switch simplifies network design
- LED status and error indicators
- Motor pulse counting through local logic
- EtherNet/IP Conformance Tested
- UL and cUL recognized component
- Rockwell Automation AOP available
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature -4~104°F (-20~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 1.0G
Protection
- Thermal overload 185°F (85°C) on PCB
- 10A fuse per motor
- Diode protection for incorrect wiring
Specifications
| Connector | 12 pin |
| Zones | 2 |
| Motor Control | Up to 2 Power Mollers |
| Network | EtherNet/IP with Device Level Ring (DLR) |
| Output Type | PNP (IB-E04FP) or NPN (IB-E04FN) — must specify when ordering |
| Dimensions | 220 mm x 57.4 mm (8.66" x 2.26") |
Required Connector Kits
IB-E Basic Connector Kit is required for functionality. IB-E I/O Connector Kit is optional. Kits sold separately.
| IB-E Basic Kit (Required) | WAGO Part # | Qty |
|---|---|---|
| Power | 231-302 / 026-000 | 1 |
| Photo Eye Sensor | 733-104 | 2 |
| WAGO Tool | 733-191 | 1 |
| WAGO Tool | 231-231 | 1 |
| IB-E I/O Kit (Optional) | WAGO Part # | Qty |
|---|---|---|
| External Input | 734-204 | 1 |
| Signal Output | 734-206 | 1 |
| WAGO Tool | 734-231 | 1 |
Compatible Power Moller® Rollers
| PM486FH | 1.91" (48.6 mm) dia. — High torque, high speed, dual shaft mounting, 12 pin connector |
| PM570KT | 2.24" (57.0 mm) dia. — High torque belted conveyor roller, Intralox MDR sprocket compatible |
| PM635KT | 2.50" (63.5 mm) dia. — Heavy duty pallet handling, 7 amp, 12 pin connector |
Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
