PM570KT Motorized Conveyor Roller
Couldn't load pickup availability
- Manufacturer Catalog Download

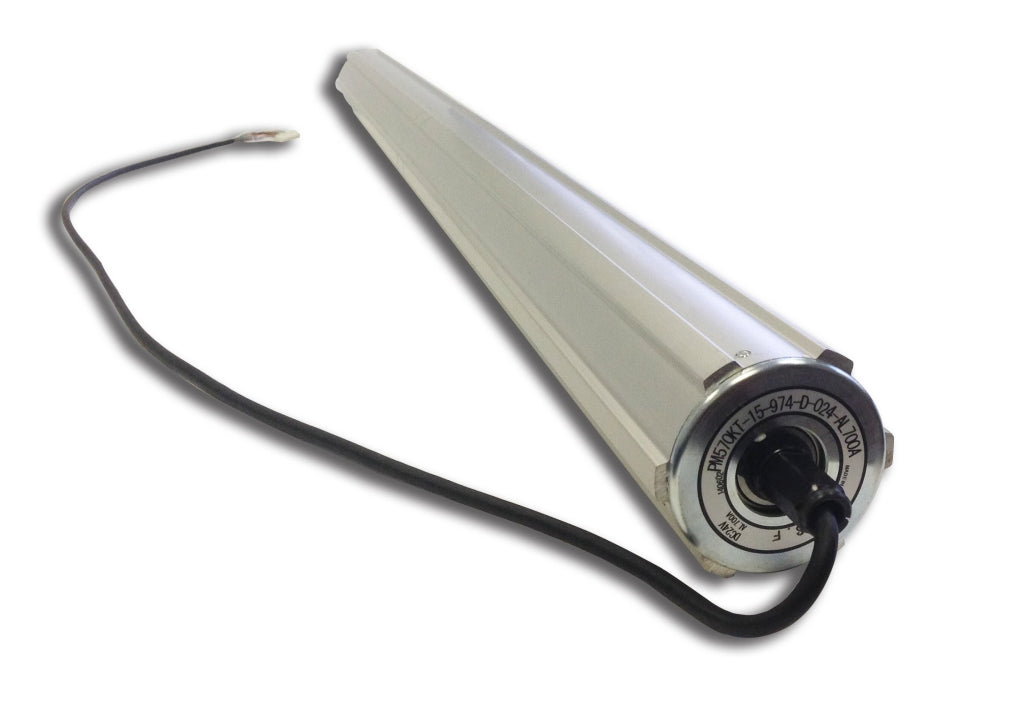

The Itoh Denki PM570KT is a high torque 24V DC brushless motorized roller with a 2.24" (57.0 mm) diameter, purpose-built for belted conveyor applications. Featuring dual shaft mounting, a spring-loaded shaft, Class E insulation, and an optional AL700 splined aluminum tube profile compatible with the Intralox patented MDR sprocket, the PM570KT is designed to drive modular plastic belting directly from the roller. With a standard 1000 mm power cable and 12 pin connector, it pairs with the high torque CBK-109F, HBK-608F, and IB-E04F driver card families.
Key Features
- Brushless DC motor provides long life
- 13.5 mm (0.53") hex shaft standard
- ABEC 1 bearings
- High torque
- Dual shaft mounting
- AL700 splined aluminum tube option available for Intralox patented MDR sprocket
- Class E insulation
- Standard 1000 mm (39.37") power cable
- 12 pin connector
- Spring loaded shaft roller
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature 32~104°F (0~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 0.5G
Protection
- Thermal overload 221°F (105°C) in the motor when used with an Itoh Denki controller
Specifications
| Diameter | 2.24" (57.0 mm) |
| Voltage | 24V DC |
| Shaft Type | 13.5 mm (0.53") hex shaft (standard) |
| Shaft Mounting | Dual shaft mounting, spring loaded |
| Tube Options | Standard steel tube; AL700 splined aluminum tube option for Intralox MDR sprocket |
| Connector | 12 pin connector |
| Standard Cable Length | 1000 mm (39.37") |
| Insulation | Class E |
| Minimum Tube Length | 360 mm (14.17") |
| Maximum Tube Length (AL700) | 1200 mm (47.24") |
Belted Conveyor Application
The PM570KT has been modified with a splined aluminum tube profile (AL700 option) that is fitted with the Intralox patented MDR sprocket, allowing the roller to directly drive modular plastic belting. This eliminates the need for external belt drive mechanisms and simplifies conveyor design for belted zone applications. The AL700 tube option has a maximum tube length of 1200 mm (47.24").
Applicable Driver Cards
| CBK-109F | Driver Card — 12 pin connector. Designed for high torque rollers (up to 7A). Variable speed control for up to 20 speeds. Available in PNP (CBK-109FP) or NPN (CBK-109FN) output. |
| HBK-608F | 2 Zone ZPA Hybrid Driver Card — 12 pin connector. Controls up to 2 Power Mollers. Built-in Zero Pressure Accumulation (ZPA) logic. Available in PNP (HBK-608FP) or NPN (HBK-608FN) output. |
| IB-E04F | 2 Zone Ethernet/IP Controller — 12 pin connector. Controls up to 2 Power Mollers. EtherNet/IP Conformance Tested. Rockwell Automation AOP available. Built-in DLR technology. Available in PNP (IB-E04FP) or NPN (IB-E04FN) output. |
Tube Length Considerations
- Standard: TL = BF − 17 mm
- Minimum tube length: 360 mm (14.17")
- Maximum tube length (AL700 option): 1200 mm (47.24")
Mounting Brackets & Accessories
1 each of the following mounting brackets are required for this roller:
- MBK-0K1 — Standard hex shaft mounting bracket, point up (cable end)
- MBK-0K1-7 — Standard hex shaft mounting bracket, point up (spring loaded end)
Need a Quote or Configuration Help?
The PM570KT is custom made to order. Our team can help you configure the right part number, verify driver card compatibility, and provide pricing for your belted conveyor application.
Request a QuoteAll Itoh Denki motorized conveyor rollers are custom made to order. Option availability varies between models and some options cannot be combined. Specifications are subject to change without prior notice. Please contact us for assistance with part number configuration.
