PM635FS Motorized Conveyor Roller
Couldn't load pickup availability
- Manufacturer Catalog Download

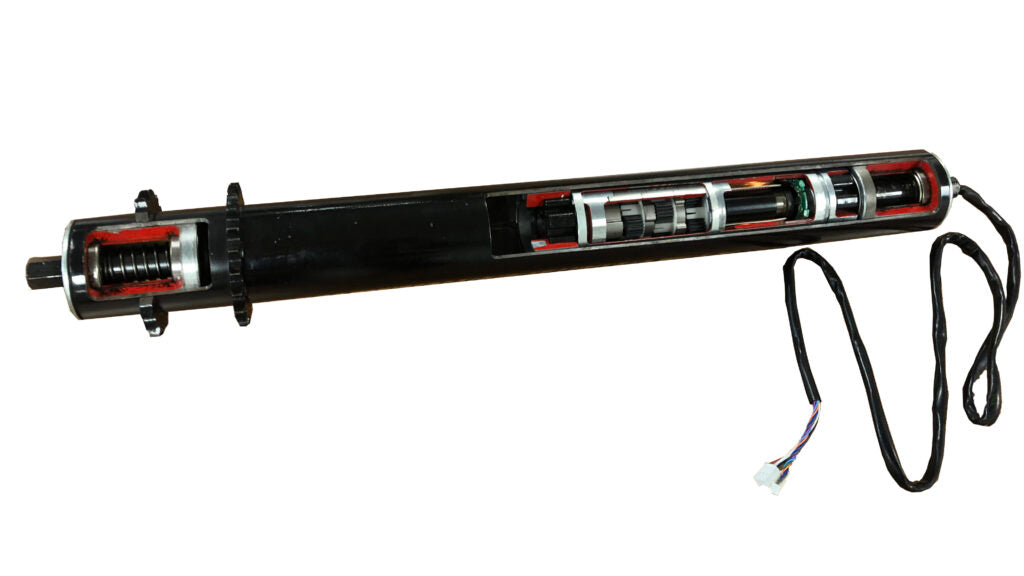

The Itoh Denki PM635FS is a heavy-duty 24V DC brushless motorized roller with a 2.50" (63.5 mm) diameter — the largest in the Power Moller lineup — engineered for pallet handling and high-load conveyor applications. Featuring 11/16" threaded hex shafts, single shaft mounting on the cable side, dynamic braking, and a DOM carbon steel tube, the PM635FS delivers the load capacity and durability required for demanding industrial environments. Available with sprocket, waterproof, and low temperature options across two gear stages, with mounting brackets included with every roller purchase.
Key Features
- Brushless DC motor provides long life
- 11/16" threaded hex shafts standard
- ABEC 1 bearings
- DOM, carbon steel tube
- Heavy duty pallet handling
- One shaft mounting, cable side
- Dynamic brake
- Standard 300 mm (11.81") power cable
- Standard 9 pin connector
- Available as spring loaded shaft
- Mounting brackets included with roller purchase
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature 32~104°F (0~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 0.5G
Protection
- Thermal overload 221°F (105°C) in the motor when used with an Itoh Denki controller
Specifications
| Diameter | 2.50" (63.5 mm) |
| Voltage | 24V DC |
| Shaft Type | 11/16" threaded hex shaft (standard) |
| Shaft Mounting | One shaft mounting, cable side; available as spring loaded |
| Tube Material | DOM, carbon steel |
| Connector | 9 pin (standard) |
| Standard Cable Length | 300 mm (11.81") |
| Gear Stages Available | 2 and 3 |
Available Options
- Sprockets (OS) — Available types: 40A21, 50A17, 50A18, 60A15, or 60A16. Sprocket type, quantity, and locations must be specified in the part number.
- Waterproof (WA) — Stainless steel exterior, IP-65 rated, 1000 mm cable. Available with 6 and 20 speed code options.
- Low Temp (LT) — Operates down to -30°C (-22°F). Available with 6 and 20 speed code options.
Option availability varies. Some options cannot be combined. Contact us for part number configuration assistance.
Available Endcap & Tube Options
- Poly V End Cap (VG) — For poly V belt drive
Applicable Driver Cards
| CB-016S7 | Driver Card — 9 pin connector. Variable speed control for up to 20 speeds. Dynamic brake control. Available with brake option (CB-016BS7-UL, 10 pin) and low temp option (CB-016S7-LT). PNP (CB-016P7) or NPN (CB-016N7) output. |
| HB-510 | ZPA Hybrid Driver Card — 9 pin connector. Built-in Zero Pressure Accumulation (ZPA) logic with Flexible Zone Recognition. Direct photo eye connection. Available with brake (HB-510B, 10 pin) and low temp options. PNP (HB-510P) or NPN (HB-510N) output. |
| IB-E03B | 2 Zone Ethernet/IP Controller — 10 pin connector. Controls up to 2 Power Mollers. EtherNet/IP Conformance Tested. Rockwell Automation AOP available. Built-in DLR technology. Z cable option or 9/10 pin extension cables needed for non-brake PM635FS models. PNP (IB-E03BP) or NPN (IB-E03BN) output. |
Tube Length Considerations
- Standard roller / no options: TL = BF − 20 mm
- VG (Poly V end cap): TL = BF − 66 mm
- OS (Sprockets): TL = BF − 20 mm
Contact an Itoh Denki representative to review your specific application.
Minimum Tube Lengths
| Configuration | Gear Stage 2 | Gear Stage 3 |
|---|---|---|
| Spring loaded shaft | 387 mm (15.24") | 410 mm (16.14") |
| Spring loaded + waterproof | 387 mm (15.24") | 410 mm (16.14") |
| Spring loaded + sprockets | 387 mm (15.24") | 410 mm (16.14") |
Mounting Brackets & Accessories
1 mounting bracket is required for this roller. Brackets are included with roller purchase.
- Standard Threaded Hex Shaft: P-0D1 (hex flat up) / P-0E1 (hex point up)
- Thrust collar nuts to be tightened to 110.6 lb·ft ± 10%
Need a Quote or Configuration Help?
The PM635FS is custom made to order. Our team can help you configure the right part number, verify driver card compatibility, and provide pricing for your pallet handling application.
Request a QuoteAll Itoh Denki motorized conveyor rollers are custom made to order. Option availability varies between models and some options cannot be combined. Specifications are subject to change without prior notice. Please contact us for assistance with part number configuration.
