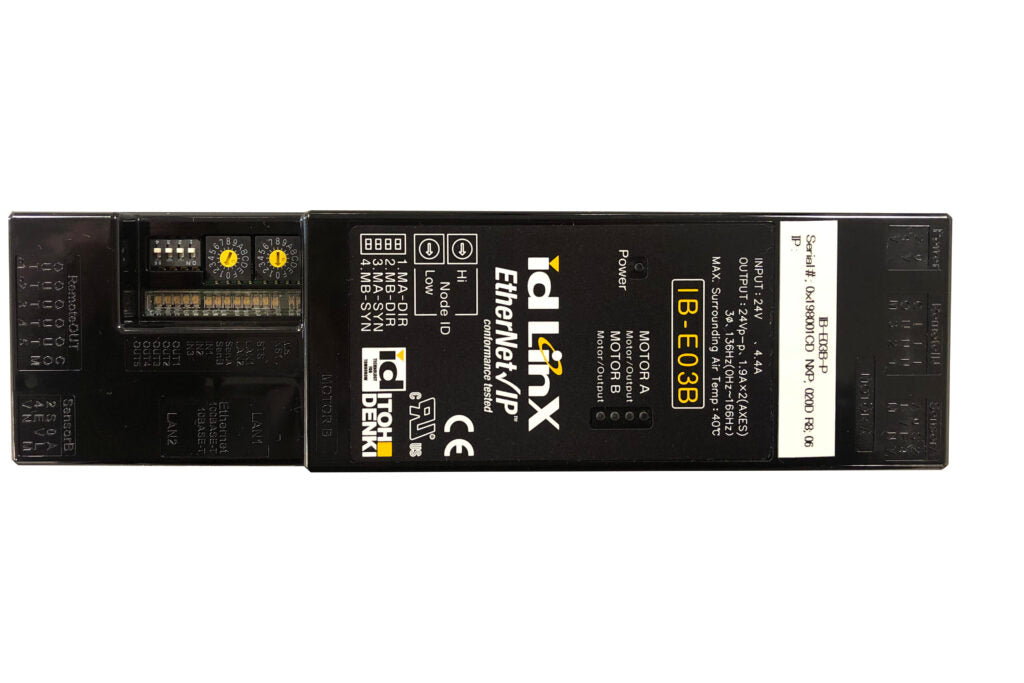

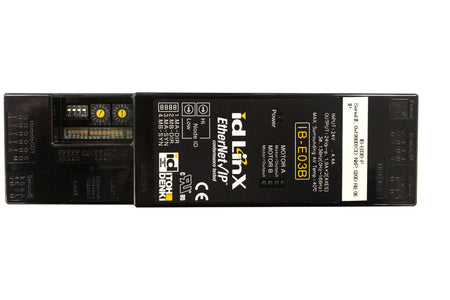

IB-E03B Driver Card
Couldn't load pickup availability
- Manufacturer Catalog Download
The Itoh Denki IB-E03B is a 2-zone Ethernet/IP controller with a 10 pin connector that controls up to 2 Power Moller® rollers (brake and non-brake models). It operates using local logic or upper-level PLC control, features built-in Device Level Ring (DLR) technology, a 2-port Ethernet switch, life cycle monitoring, and Rockwell Automation AOP (Add-On Profile) support for seamless integration. Available in PNP output (IB-E03BP) and NPN output (IB-E03BN) — output type must be specified when ordering.
Key Features
- Controls up to 2 Power Mollers (brake and non-brake models)
- Direct connection for 2 photo-sensors (powers and receives output)
- I/O device: 3 discrete inputs, 5 discrete outputs
- Local logic or upper-level PLC control
- Built-in Device Level Ring (DLR) for continuous communication
- Life cycle monitoring: displays remaining useful motor life
- 2-port Ethernet switch simplifies network design
- LED status and error indicators
- Motor pulse counting through local logic
- EtherNet/IP Conformance Tested
- UL and cUL recognized component
- Rockwell Automation AOP available
Note: Z cable option or 9/10 pin extension cables needed to use IB-E03B with non-brake roller models.
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature -4~104°F (-20~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 1.0G
Protection
- Thermal overload 185°F (85°C) on PCB
- 7A fuse per motor
- Diode protection for incorrect wiring
Specifications
| Connector | 10 pin |
| Zones | 2 |
| Motor Control | Up to 2 Power Mollers |
| Network | EtherNet/IP with Device Level Ring (DLR) |
| Output Type | PNP (IB-E03BP) or NPN (IB-E03BN) — must specify when ordering |
| Dimensions | 220 mm x 57.4 mm (8.66" x 2.26") |
Required Connector Kits
IB-E Basic Connector Kit is required for functionality. IB-E I/O Connector Kit is optional. Kits sold separately.
| IB-E Basic Kit (Required) | WAGO Part # | Qty |
|---|---|---|
| Power | 231-302 / 026-000 | 1 |
| Photo Eye Sensor | 733-104 | 2 |
| WAGO Tool | 733-191 | 1 |
| WAGO Tool | 231-231 | 1 |
| IB-E I/O Kit (Optional) | WAGO Part # | Qty |
|---|---|---|
| External Input | 734-204 | 1 |
| Signal Output | 734-206 | 1 |
| WAGO Tool | 734-231 | 1 |
Compatible Power Moller® Rollers
| PM486FE | 1.91" (48.6 mm) dia. — Standard torque, single shaft mounting, spring loaded shaft |
| PM486FP | 1.91" (48.6 mm) dia. — High torque, dual shaft mounting, threaded hex shafts |
| PM486FS | 1.91" (48.6 mm) dia. — Standard torque, dual shaft mounting |
| PM570FE | 2.24" (57.0 mm) dia. — Standard torque, single shaft mounting |
| PM605FE | 2.38" (60.5 mm) dia. — Standard torque, single shaft mounting |
| PM635FS | 2.50" (63.5 mm) dia. — Heavy duty pallet handling, single shaft mounting |
Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
