Itoh Denki

IB-E04FN-CR-HT.1

Call Us for Volume Discount Availability 704.519.4661
$581.63

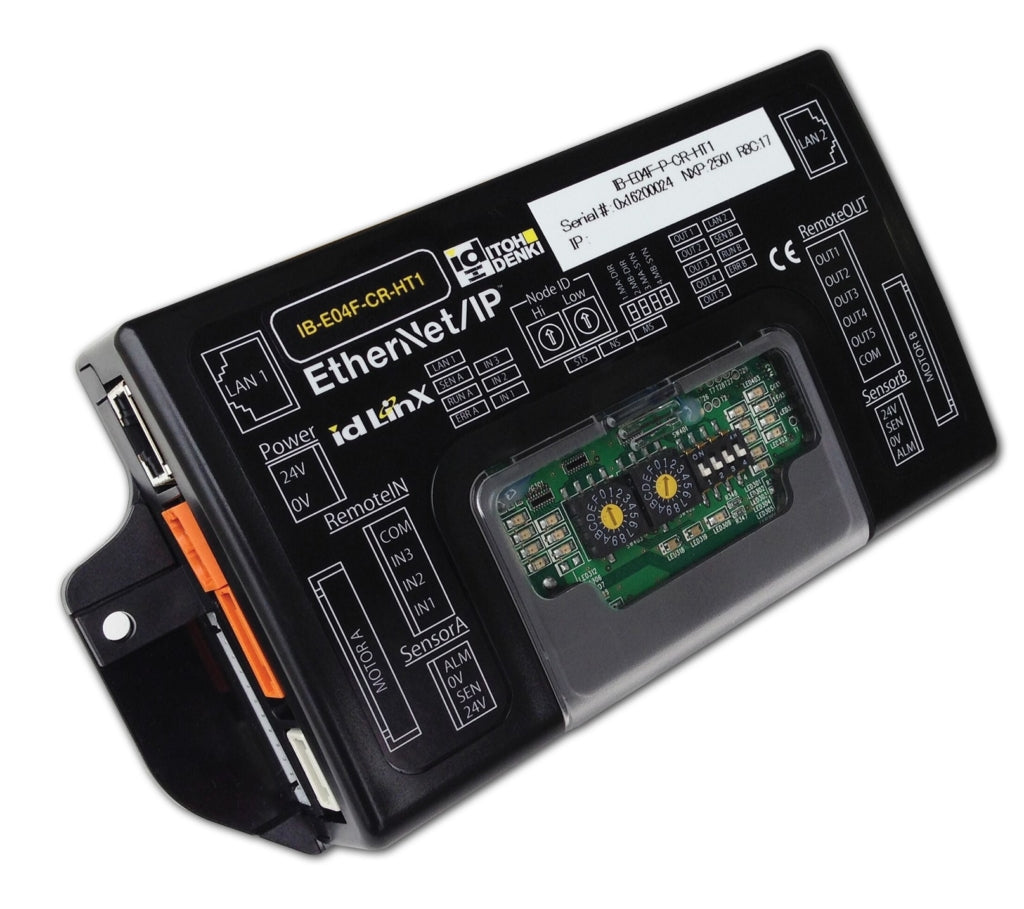

Product image is representative of the IB-E04F-CR-HT.1 series. The unit shipped will correspond to the part number ordered.

The IB-E04FN-CR-HT.1 is the NPN output version of the Itoh Denki IB-E04F-CR-HT.1 corrosion-resistant, high-temperature EtherNet/IP 2-zone controller. It features a 12-pin connector and is designed for high-torque Power Moller® DC rollers in elevated temperature or corrosive environments. Output type must be specified when ordering — the IB-E04FN-CR-HT.1 is factory-configured for NPN output.

Variant Details

  • Part Number: IB-E04FN-CR-HT.1
  • Output Type: NPN output
  • Connector: 12-pin
  • Zones: high-torque Power Moller® DC rollers in elevated temperature or corrosive environments
  • Base Card: IB-E04F-CR-HT.1

Compatible Rollers

Key Specifications

  • Designed for higher ambient temperature applications
  • Corrosion-resistant coating protects against sulfuric gases
  • EtherNet/IP Conformance Tested™
  • Controls up to 2 Power Mollers
  • Built-in Device Level Ring (DLR) for continuous communication
  • Life cycle monitoring displays remaining useful motor life
  • 2-port Ethernet switch simplifies network design
  • Rockwell Automation AOP available for seamless integration
  • Different footprint than standard IB-E04F
  • IB-E Basic Connector Kit required (sold separately)

Other IB-E04F-CR-HT.1 Variants

For full technical specifications, speed/torque tables, protection details, environment ratings, and wiring diagrams, see the IB-E04F-CR-HT.1 base card page.
