Home » HBM-604BN-UL
Itoh Denki

HBM-604BN-UL

Call Us for Volume Discount Availability 704.519.4661
$237.60

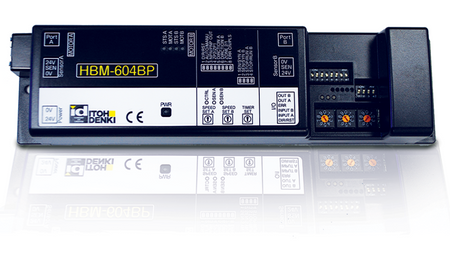

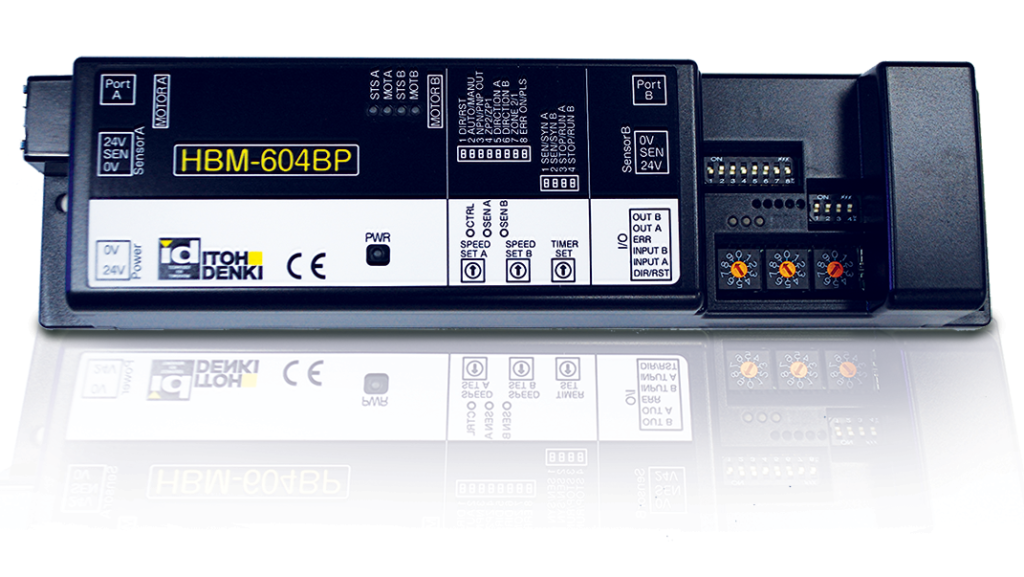

Product image is representative of the HBM-604B-UL series. The unit shipped will correspond to the part number ordered.

The HBM-604BN-UL is the NPN output version of the Itoh Denki HBM-604B-UL 2-zone ZPA hybrid driver card. It features a 10-pin connector and is designed for standard-torque Power Moller® DC rollers (brake and non-brake models). Output type must be specified when ordering — the HBM-604BN-UL is factory-configured for NPN output.

Variant Details

  • Part Number: HBM-604BN-UL
  • Output Type: NPN output
  • Connector: 10-pin
  • Zones: standard-torque Power Moller® DC rollers (brake and non-brake models)
  • Base Card: HBM-604B-UL

Compatible Rollers

Key Specifications

  • Controls up to 2 Power Mollers (brake and non-brake models)
  • Built-in Zero Pressure Accumulation (ZPA) logic
  • Variable speed control by rotary switch
  • Dynamic brake control
  • Stable speed function for consistent article transport
  • Flexible Zone Recognition for long articles spanning multiple sensors
  • 2 sensor connections that power and receive output
  • Daisy-chain wiring between adjacent HBM-604B-UL cards
  • Handshake capability with IB-E03B driver cards
  • UL and cUL recognized component

Other HBM-604B-UL Variants

For full technical specifications, speed/torque tables, protection details, environment ratings, and wiring diagrams, see the HBM-604B-UL base card page.
