Itoh Denki

CB-016N7

Call Us for Volume Discount Availability 704.519.4661
$141.73

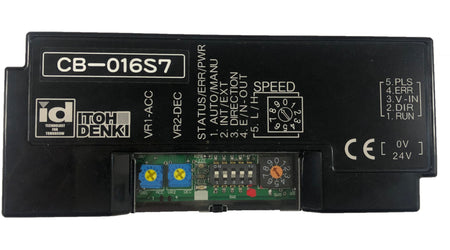

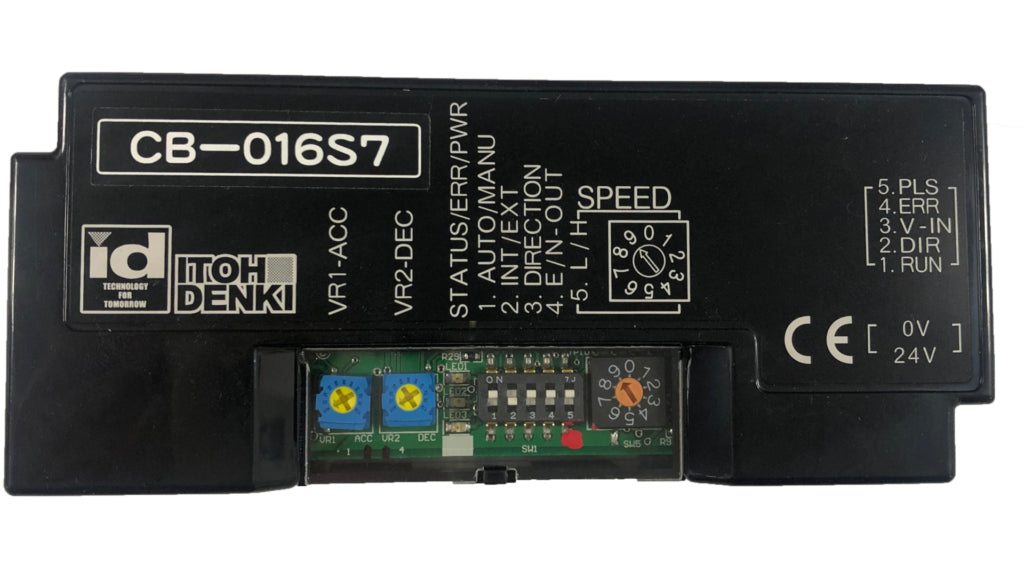

Product image is representative of the CB-016S7 series. The unit shipped will correspond to the part number ordered.

The CB-016N7 is the NPN output version of the Itoh Denki CB-016S7 single-zone driver card. It features a 9-pin connector and is designed for standard-torque Power Moller® DC rollers. Output type must be specified when ordering — the CB-016N7 is factory-configured for NPN output.

Variant Details

  • Part Number: CB-016N7
  • Output Type: NPN output
  • Connector: 9-pin
  • Zones: standard-torque Power Moller® DC rollers
  • Base Card: CB-016S7

Compatible Rollers

Key Specifications

  • Up to 20 speed settings via DIP switch, rotary switch, or external voltage input
  • Direction control by onboard DIP switch or external signal
  • Adjustable acceleration/deceleration (0 to 2.5s)
  • Dynamic brake control
  • Stable speed function for consistent article transport
  • 3 LEDs for error type and occurrence count
  • Manual or automatic thermal overload recovery

Other CB-016S7 Variants

For full technical specifications, speed/torque tables, protection details, environment ratings, and wiring diagrams, see the CB-016S7 base card page.
