PM635KE Motorized Roller Conveyor
Couldn't load pickup availability
- Manufacturer Catalog Download

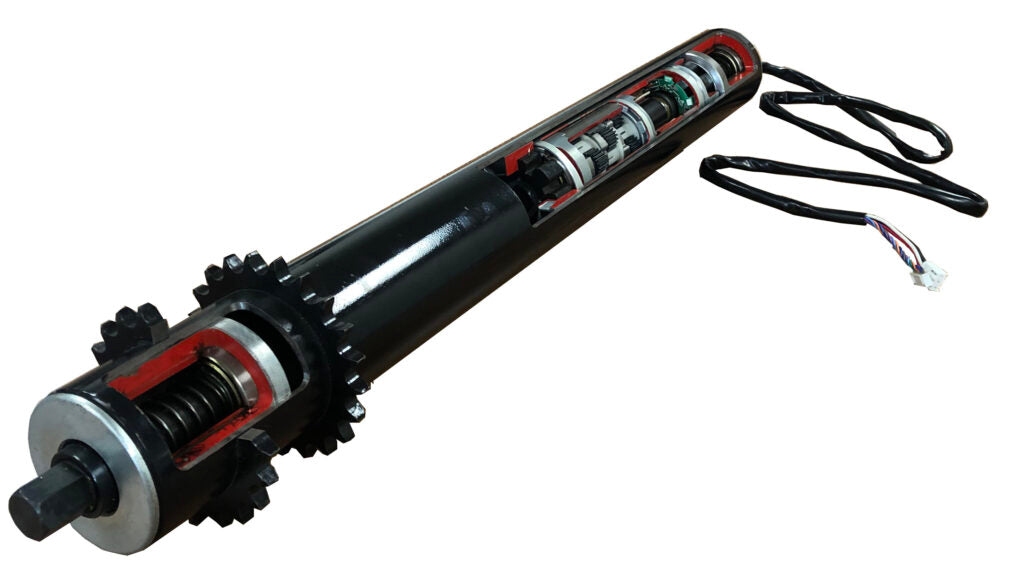

The Itoh Denki PM635KE is the highest-current motorized roller in the Power Moller lineup — a 10 amp, 24V DC brushless motor driven roller with a 2.50" (63.5 mm) diameter, built for the most demanding pallet handling applications. Featuring 11/16" threaded hex shafts, single shaft mounting, a spring-loaded shaft, and a standard 1000 mm power cable with a split 3 pin / 7 pin connector, the PM635KE delivers exceptional torque across three gear stages. This roller is exclusively compatible with the CBM-103F driver card, which is purpose-built to handle its 10A current requirements.
Key Features
- Brushless DC motor provides long life
- 11/16" threaded hex shafts standard
- ABEC 1 bearings
- DOM, carbon steel tube
- Heavy duty pallet handling
- 10 amp motor driven roller
- One shaft mounting, cable side
- Standard 1000 mm (39.37") power cable
- Standard 3 pin / 7 pin split connector
- Spring loaded shaft roller
- Mounting brackets included with roller purchase
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature 32~104°F (0~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 0.5G
Protection
- Thermal overload 221°F (105°C) in the motor when used with an Itoh Denki controller
Specifications
| Diameter | 2.50" (63.5 mm) |
| Voltage | 24V DC |
| Shaft Type | 11/16" threaded hex shaft (standard) |
| Shaft Mounting | One shaft mounting, cable side — spring loaded |
| Tube Material | DOM, carbon steel |
| Connector | Split 3 pin / 7 pin connector |
| Motor Current Rating | 10 amp |
| Standard Cable Length | 1000 mm (39.37") |
| Gear Stages Available | 1, 2, and 3 |
Available Options
- Sprockets (OS) — Available types: 40A21, 50A17, 50A18, 60A15, or 60A16. Sprocket type, quantity, and locations must be specified in the part number.
Contact us for part number configuration assistance.
Available Endcap & Tube Options
- Poly V End Cap (VG) — For poly V belt drive
Applicable Driver Card
| CBM-103F | Driver Card — Split 3 pin / 7 pin connector. The only driver card compatible with the PM635KE. Designed for high torque operation up to 10A. 18A fuse to power supply. Variable speed control with rotary switch for 10 fixed speed settings or by external voltage input for up to 16 speeds. Dynamic brake control. PNP (CBM-103FP) or NPN (CBM-103FN) output. |
The CBM-103F is the only driver card compatible with the PM635KE model. No other Itoh Denki driver cards can be used with this roller.
Tube Length Considerations
- Standard / no options: TL = BF − 20 mm
- VG (Poly V end cap): TL = BF − 66 mm
- OS (Sprockets): TL = BF − 20 mm
Contact an Itoh Denki representative to review your specific application.
Minimum Tube Lengths
| Configuration | Gear Stage 1 | Gear Stage 2 | Gear Stage 3 |
|---|---|---|---|
| Spring loaded shaft | 360 mm (14.17") | 380 mm (14.96") | 400 mm (15.75") |
| Spring loaded + sprockets | 360 mm (14.17") | 380 mm (14.96") | 400 mm (15.75") |
| Spring loaded + waterproof | 360 mm (14.17") | 380 mm (14.96") | 400 mm (15.75") |
Mounting Brackets & Accessories
1 mounting bracket is required for this roller. Brackets are included with roller purchase.
- Standard Threaded Hex Shaft: P-0D1 (hex flat up) / P-0E1 (hex point up)
- Thrust collar nuts to be tightened to 110.6 lb·ft ± 10%
Need a Quote or Configuration Help?
The PM635KE is custom made to order and requires the CBM-103F driver card. Our team can help you configure the right part number and provide pricing for your pallet handling application.
Request a QuoteAll Itoh Denki motorized conveyor rollers are custom made to order. Option availability varies between models and some options cannot be combined. Specifications are subject to change without prior notice. Please contact us for assistance with part number configuration.
