CBM-103F Driver Card

SKU: CBM-103F
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below
Ordering Variants

Output type must be specified when ordering. Select a variant below for details and pricing.

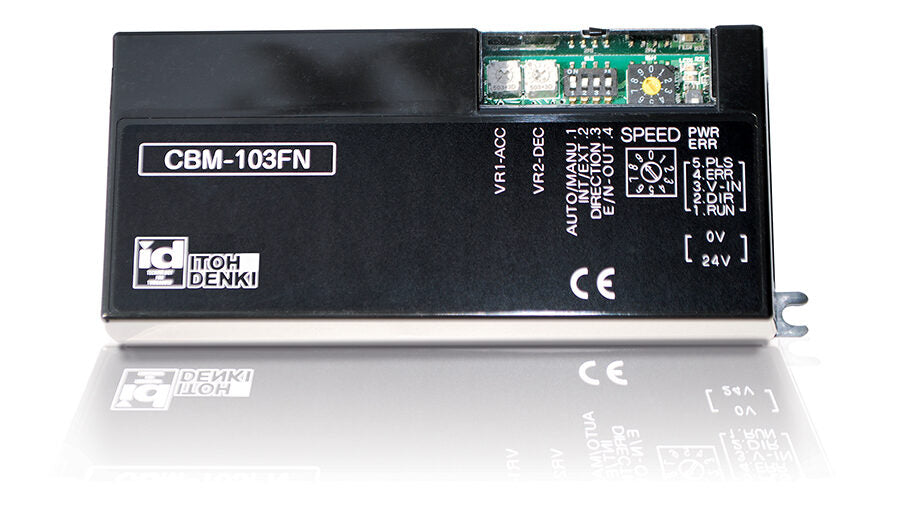

The Itoh Denki CBM-103F is a single-zone driver card with a split 3 pin / 7 pin connector, designed exclusively for the high-torque PM635KE roller drawing up to 10A. It offers 10 fixed speed settings via rotary switch or up to 16 speeds via external voltage input, along with dynamic brake control and stable speed functionality. Available in PNP output (CBM-103FP) and NPN output (CBM-103FN) — output type must be specified when ordering.

Key Features

  • Simple operation
  • Designed for the high-torque PM635KE (up to 10A)
  • 2 LEDs to identify error type and occurrence count
  • Dynamic brake control
  • Stable speed function for consistent transfer across varying loads
  • Variable speed: rotary switch (10 settings) or external voltage input (up to 16 speeds)
  • Direction control by onboard DIP switch or external signal input
  • Adjustable acceleration and deceleration time (0 to 2.5s)
  • Manual or automatic recovery of thermal overload
  • Forcibly stops motor on lock, back EMF, or thermal overload
  • Output selectable through DIP switch
  • Includes mounting hardware and wiring connectors

Operation

  • Continuous or intermittent duty
  • Minimum cycle: 1s ON; 1s OFF
  • Do not exceed 150% of no-load speed

Environment

  • Ambient temperature 32~104°F (0~40°C)
  • < 90% relative humidity (no condensation)
  • No corrosive gases
  • Vibration < 0.5G

Protection

  • Thermal overload 203°F (95°C) on PCB
  • 18A fuse to power supply

Specifications

Connector Split 3 pin / 7 pin
Speed Settings 10 fixed (rotary) / up to 16 (external voltage)
Maximum Current 10A
Output Type PNP (CBM-103FP) or NPN (CBM-103FN) — must specify when ordering
Dimensions 151.5 mm x 64 mm (5.96" x 2.51")
Power Connector WAGO #231-302/026-000 (included)
Control Connector WAGO #733-105 (included)

Compatible Power Moller® Rollers

PM635KE 2.50" (63.5 mm) dia. — Heavy duty pallet handling, 10 amp, split 3 pin / 7 pin connector. This is the only compatible roller for the CBM-103F.

Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
