CBM-105F Driver Card

SKU: CBM-105F
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below
Ordering Variants

Output type must be specified when ordering. Select a variant below for details and pricing.

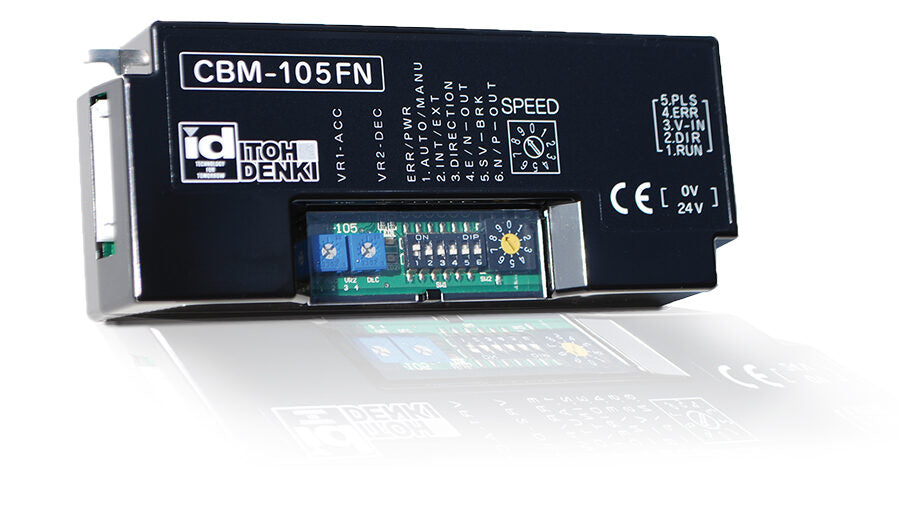

The Itoh Denki CBM-105F is a single-zone driver card with a 9 pin connector, offering dynamic brake and servo brake control along with an error output signal for self-diagnosis. It provides variable speed via rotary switch or external voltage input and is compatible with standard-torque Power Moller® roller families. Available in PNP output (CBM-105FP) and NPN output (CBM-105FN) — output type must be specified when ordering.

Key Features

  • Simple operation
  • 2 LEDs to identify error type and occurrence count
  • Stable speed function for consistent transfer across varying loads
  • Error output signal for self-diagnosis
  • Dynamic brake and servo brake control
  • Variable speed by rotary switch or external voltage input
  • Direction control by DIP switch or external signal input
  • Adjustable acceleration and deceleration time (0 to 2.5s)
  • Automatic or manual recovery of back EMF error and thermal overload
  • Forcibly stops motor on lock, back EMF, or thermal overload
  • Output selectable through DIP switch
  • Includes mounting hardware and wiring connectors

Operation

  • Continuous or intermittent duty
  • Minimum cycle: 1s ON; 1s OFF
  • Do not exceed 150% of no-load speed

Environment

  • Ambient temperature 32~104°F (0~40°C)
  • < 90% relative humidity (no condensation)
  • No corrosive gases
  • Vibration < 0.5G

Protection

  • Thermal overload 158°F (70°C) on PCB
  • 5A fuse to power supply
  • Diode protection for incorrect wiring

Specifications

Connector 9 pin
Output Type PNP (CBM-105FP) or NPN (CBM-105FN) — must specify when ordering
Dimensions 129 mm x 52 mm (5.08" x 2.05")
Power Connector WAGO #734-102 (included)
Control Connector WAGO #733-105 (included)

Compatible Power Moller® Rollers

PM486FE 1.91" (48.6 mm) dia. — Standard torque, single shaft mounting, spring loaded shaft
PM486FP 1.91" (48.6 mm) dia. — High torque, dual shaft mounting, threaded hex shafts
PM486FS 1.91" (48.6 mm) dia. — Standard torque, dual shaft mounting
PM570FE 2.24" (57.0 mm) dia. — Standard torque, single shaft mounting
PM605FE 2.38" (60.5 mm) dia. — Standard torque, single shaft mounting
PM635FS 2.50" (63.5 mm) dia. — Heavy duty pallet handling, single shaft mounting

Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
