Home » Telco SPRR2612J
Telco Sensors

Telco SPRR2612J

SKU: SPRR2612J
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$165.85

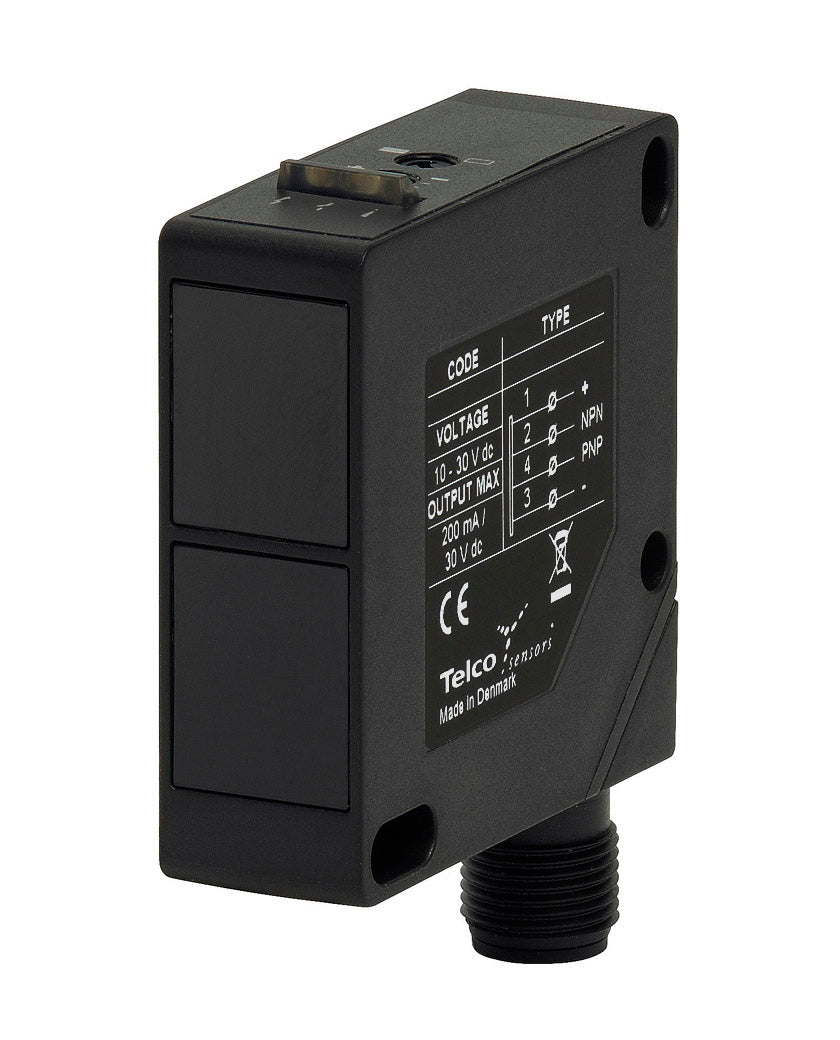

SPACEPAK RETRO REFLECTIVE SENSOR, 10-30VDC, NPN/PNP, 4P M12 QD, 3 1/4" DIA. ROUND REFLECTOR INCLUDED
  • Sensing Range 0.1–12 m
  • Light Source Infrared 880 nm
  • Ambient Light Immunity 25,000 lux at 5° incidence
  • Hysteresis Approximately 10%
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Supply Voltage 10 to 30 V DC
  • Output NPN, PNP
  • Output State NC, NO
  • Maximum Load Current 200 mA
  • Maximum Current Consumption 65 mA
  • Controls Sensitivity Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable
  • Housing 17 × 50 × 50 mm Rectangular
  • Housing Material ABS, Polycarbonate
  • Connection M12 Plug
  • Pin Count 4
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +55 °C
