Home » Telco SPPR2610TJ
Telco Sensors

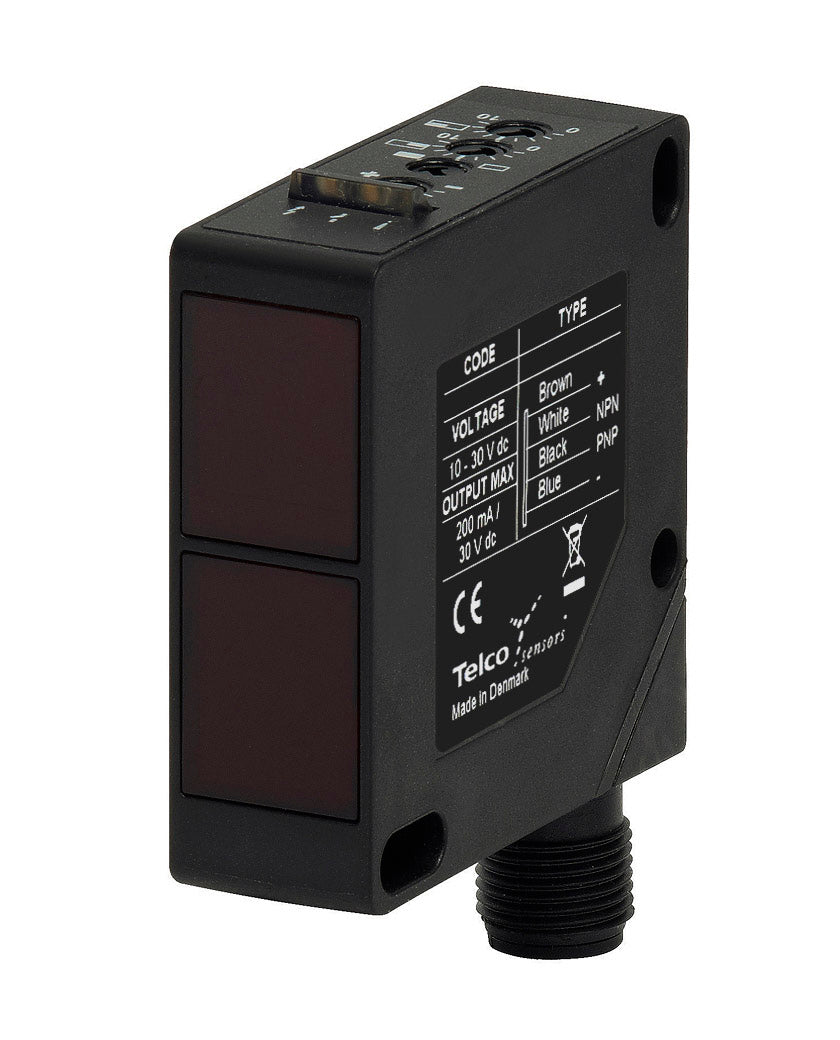

Telco SPPR2610TJ

SKU: SPPR2610TJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$186.59

SPACEPAK POLARIZED RETRO REFLECTIVE SENSOR, 10-30VDC, DC ON/OFF DELAY NPN/PNP QD, 3 1/4" DIA. ROUND REFLECTOR INCLUDED
  • Sensing Range 0.1–10 m
  • Light Source Visible Red 670 nm
  • Ambient Light Immunity 25,000 lux at 5° incidence
  • Hysteresis 5–15%
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Features Timer Delay
  • Supply Voltage 10 to 30 V DC
  • Output NPN, PNP
  • Output State NC, NO
  • Maximum Load Current 200 mA
  • Maximum Current Consumption 65 mA
  • Controls Sensitivity Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable
  • Housing 17 × 50 × 50 mm Rectangular
  • Housing Material ABS, Polycarbonate
  • Connection M12 Plug
  • Pin Count 4
  • Front Lens Material PMMA
  • Protection Rating IP67
  • Operating Temperature Range −20 to +55 °C
