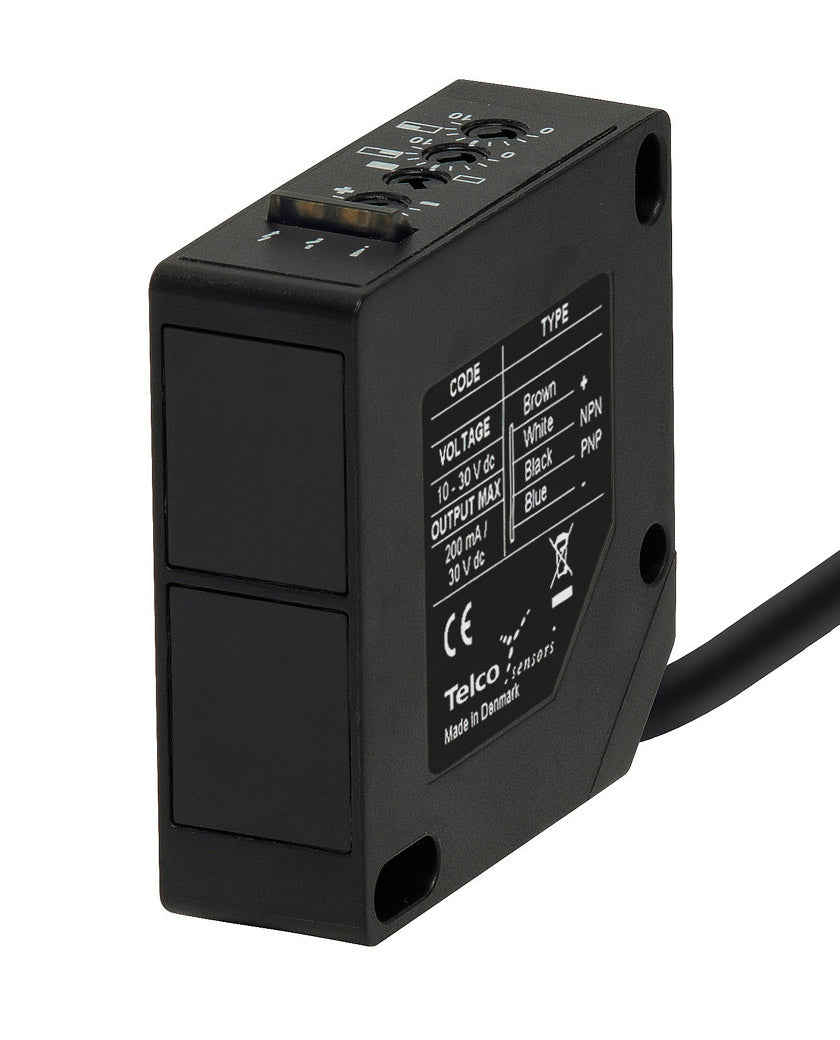

Telco SPBS2902T-5

SKU: SPBS2902T-5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$214.63

SPACEPAK BACKGROUND SUPPRESSION SENSOR, 12-240V AC/DC, NO/NC OUTPUT, ON/OFF DELAY, 5M CABLE
  • Sensing Range 0.1–2 m
  • Light Source Infrared 880 nm
  • Ambient Light Immunity 25,000 lux at 15° incidence
  • Hysteresis Approximately 3–10%
  • Response Time 40 ms
  • Switching Frequency 13 hz
  • Features Timer Delay
  • Supply Voltage 12 to 240 V DC 20 to 240 V AC
  • Output Relay
  • Output State NC, NO
  • Maximum Load Current 2 A At 240 V AC
  • Maximum Current Consumption 70 mA
  • Controls Range Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable
  • Housing 17 × 50 × 50 mm Rectangular
  • Housing Material ABS, Polycarbonate
  • Connection Integral Cable
  • Cable Length 5 m
  • Cable Material PVC
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +55 °C
