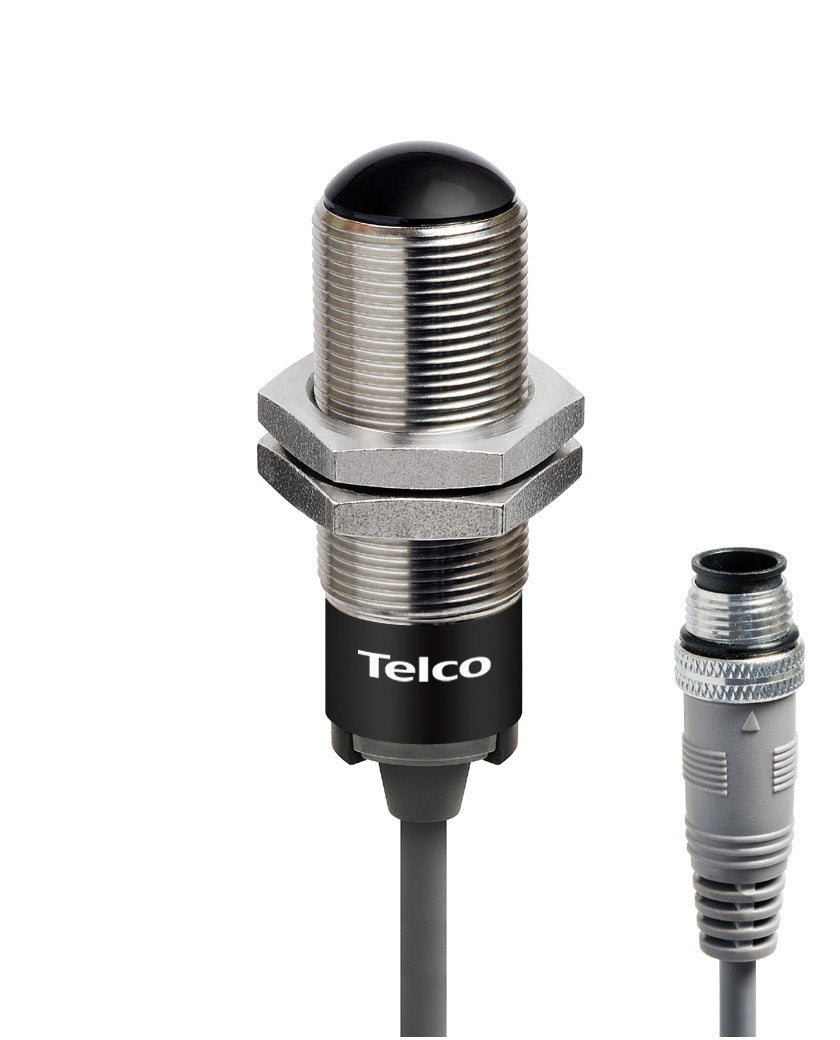

Telco SMT9020C-IO-TS-0.1-J5

SKU: SMT9020C-IO-TS-0.1-J5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$228.85

TRANSMITTER, IO LINK, STAINLESS STEEL, 1-20M RANGE, 4 PIN M12 QD
  • Sensing Range 1–20 m
  • Light Source Infrared 880 nm
  • Features IO-Link
  • Selectable Channels 1 to 4
  • Supply Voltage 10 to 30 V DC
  • Maximum Current Consumption 40 mA
  • Controls Range Adjustment, Test Input
  • Operating Modes IO-Link Configurable, Through Beam
  • Housing M18 × 1
  • Housing Material Stainless Steel
  • Connection M12 Plug With Pigtail
  • Pin Count 5
  • Cable Length 0.1 m
  • Cable Material PVC
  • Protection Rating IP69K
  • Operating Temperature Range −20 to +60 °C
