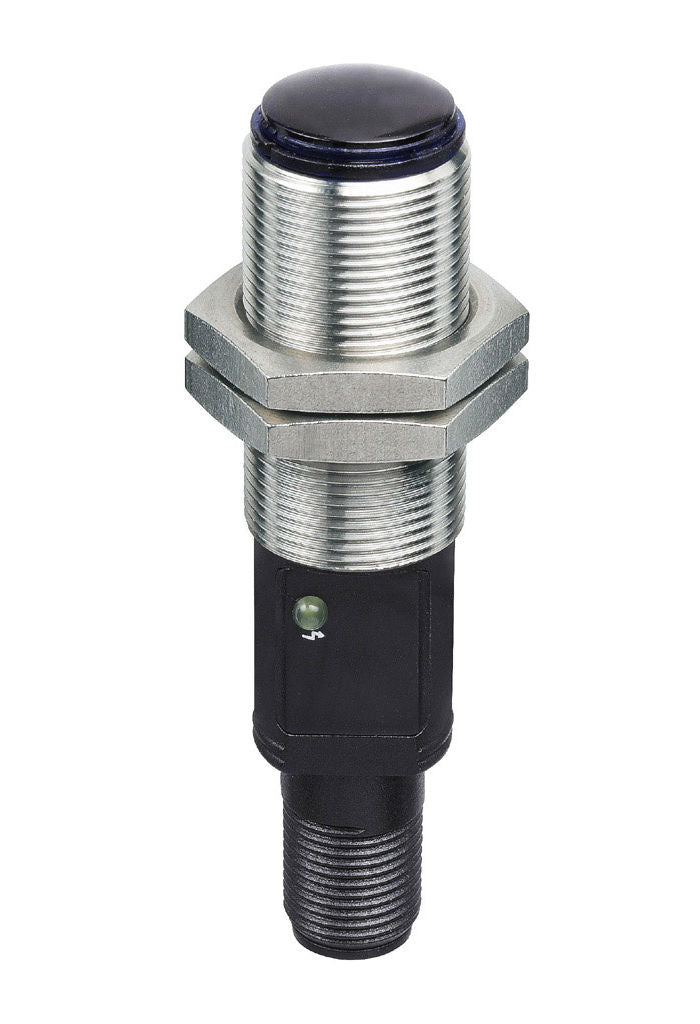

Telco Sensors SMT7000TSJ Transmitter
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$165.38
Couldn't load pickup availability
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 10 - 30 V dc |
| Light Source | Infrared (880 nm) |
| Control Feature | Test input |
| Sensing Range | 20 m |

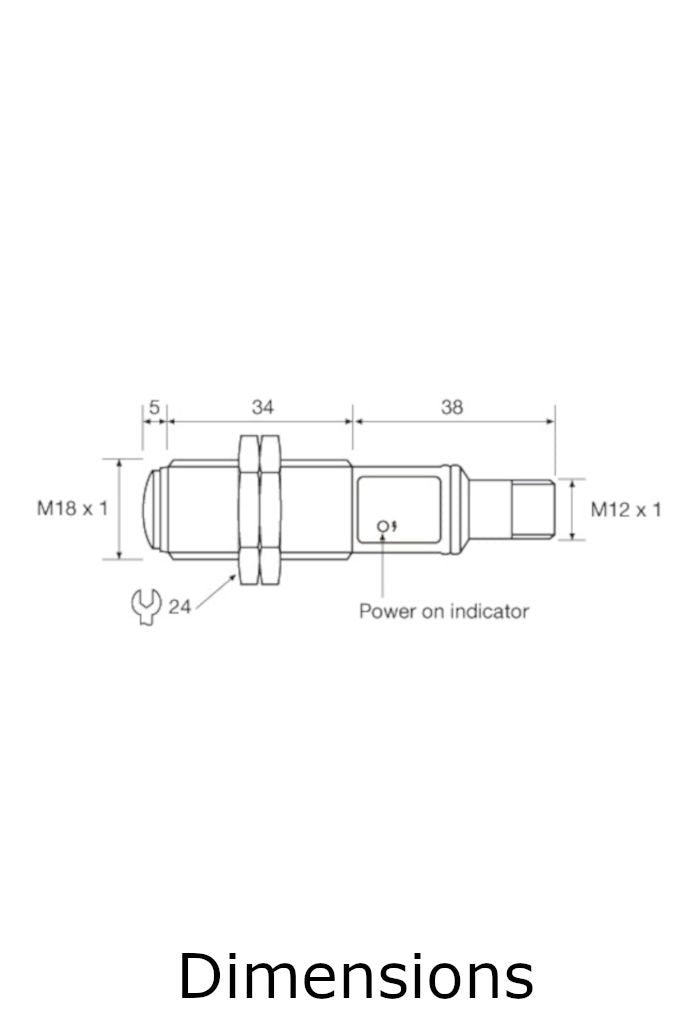

| Housing | M18 x 1 |
| Housing Material | Stainless Steel |

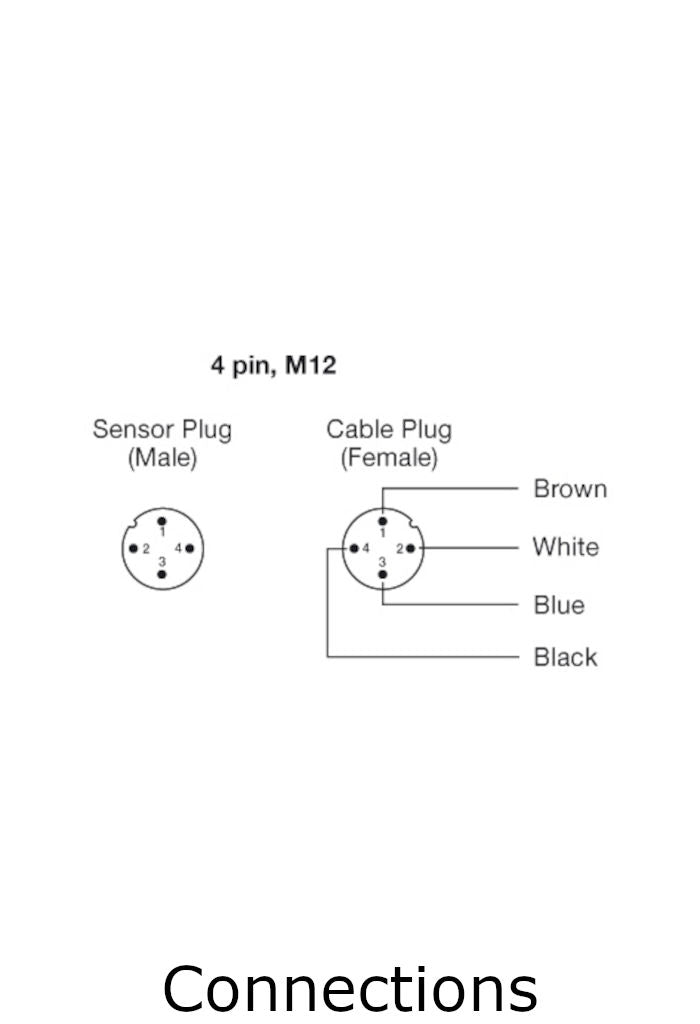

| Connection | 4 pin, M12 plug |
Technical Data
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Current Consumption | 25 mA |
| Test Input | Yes |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Emission Angle | +/- 2° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316 / 1.4401) |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
- Sensing Range
- Light Source
- Supply Voltage
- Controls
- Operating Modes
- Housing
- Housing Material
- Connection
- Pin Count
- Protection Rating
- Operating Temperature Range
