Telco Sensors

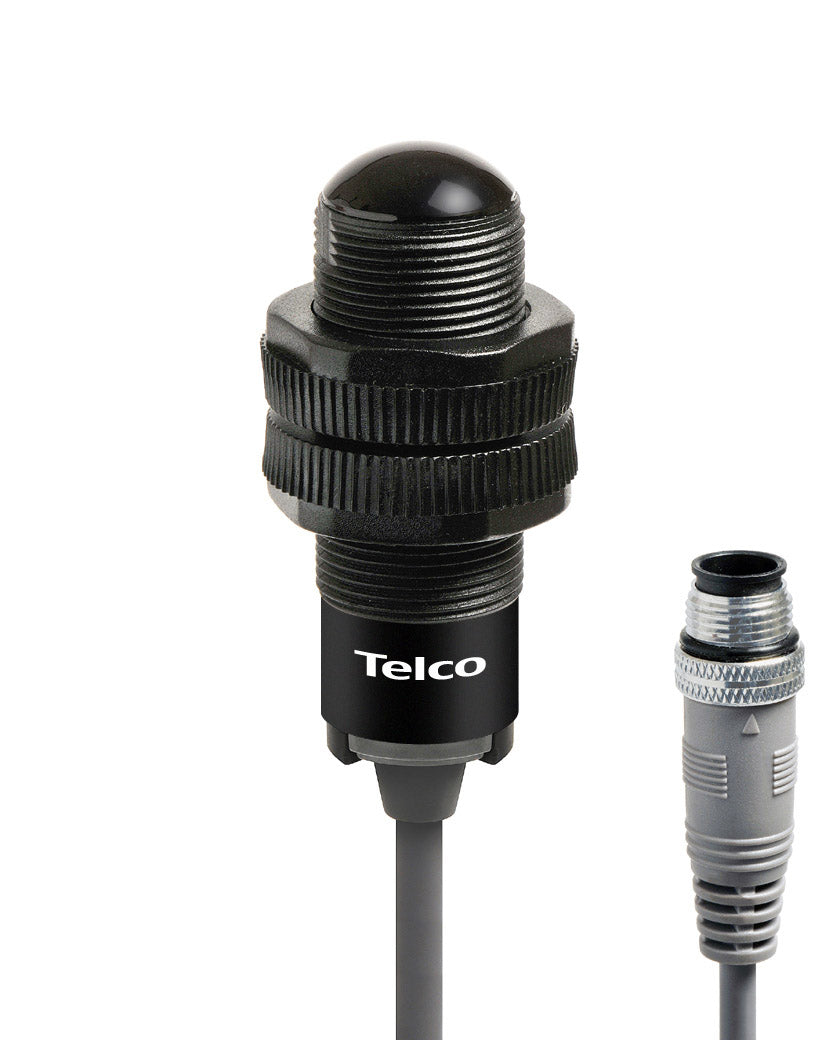

Telco SMR9570-IO-TP-0.1-J5

SKU: SMR9570-IO-TP-0.1-J5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$318.27

RECEIVER, IO LINK, PLASTIC, M18, NPN, M12 QD, 4 PIN
  • Sensing Range 0–70 m
  • Response Time 25 ms
  • Switching Frequency 20 hz
  • Features Alarm Output, IO-Link, On Off Delay, One Shot Timer
  • Selectable Channels 1 to 4
  • Supply Voltage 10 to 30 V DC
  • Output PNP, Push-Pull
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 40 mA
  • Controls Light Dark Selection
  • Operating Modes Dark Operated, IO-Link Configurable, Light Operated, Selectable, Through Beam
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection M12 Plug With Pigtail
  • Pin Count 5
  • Cable Length 0.1 m
  • Cable Material PVC
  • Protection Rating IP69K
  • Operating Temperature Range −20 to +60 °C
