Telco SMR9320TP0.1-J5

SKU: SMR9320TP0.1-J5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$258.65

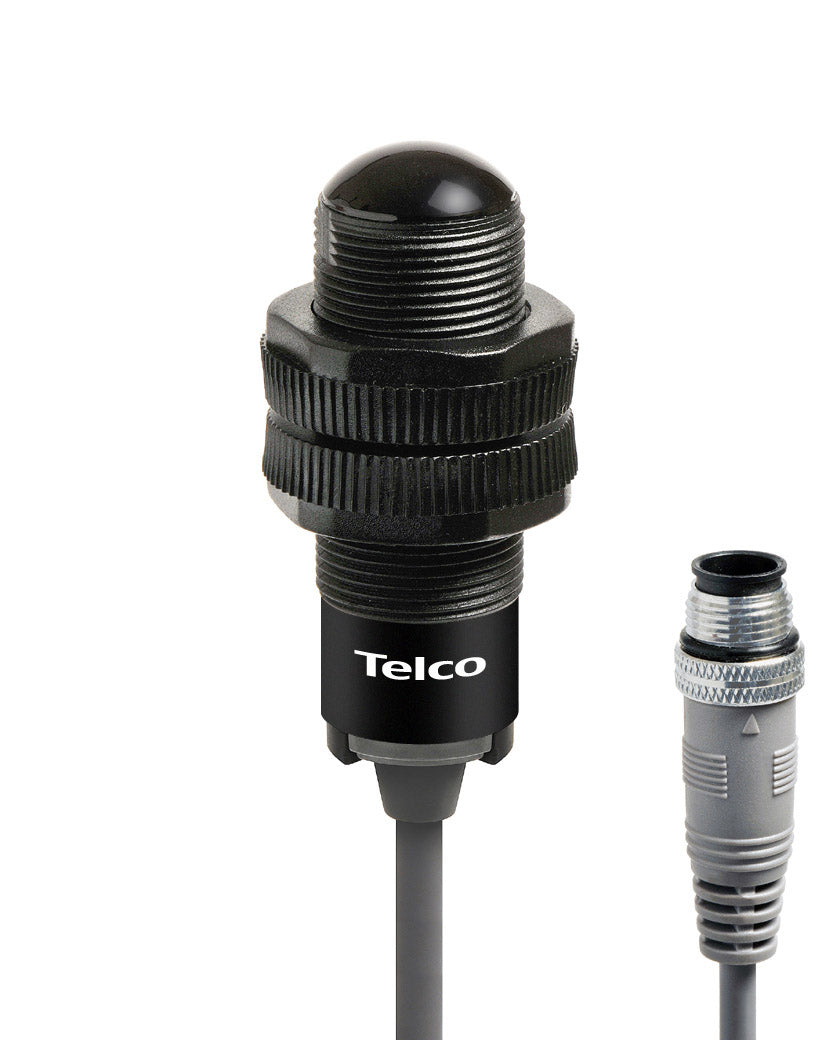

RECEIVER, PLASTIC, M18, DC, PNP, NO, DARK OPERATED, 0.1M CABLE WITH 5P M12 QD
  • Sensing Range 0–20 m
  • Response Time 25 ms
  • Switching Frequency 20 hz
  • Selectable Channels 1 to 4
  • Supply Voltage 10 to 30 V DC
  • Output PNP
  • Output State NO
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 40 mA
  • Operating Modes Dark Operated, Through Beam
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection M12 Plug With Pigtail
  • Pin Count 5
  • Cable Length 0.1 m
  • Cable Material PVC
  • Protection Rating IP69K
  • Operating Temperature Range −20 to +60 °C
