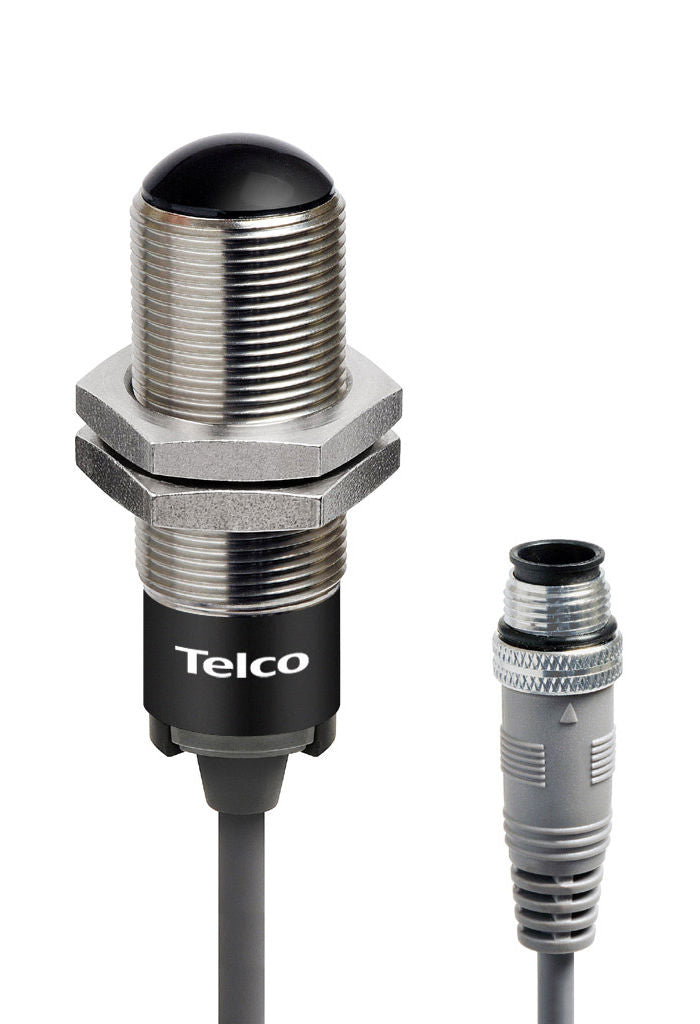

Telco Sensors SMR9270TS0.1-J5 Photoelectric Sensor
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$290.96
Couldn't load pickup availability
Product Data
| Operation Mode | Thru Beam |
| Function | Receiver |
| Supply Voltage | 10 - 30 V dc |
| Sensing Range | 70 m |
| Output | PNP |
| Output Status | N.C. |

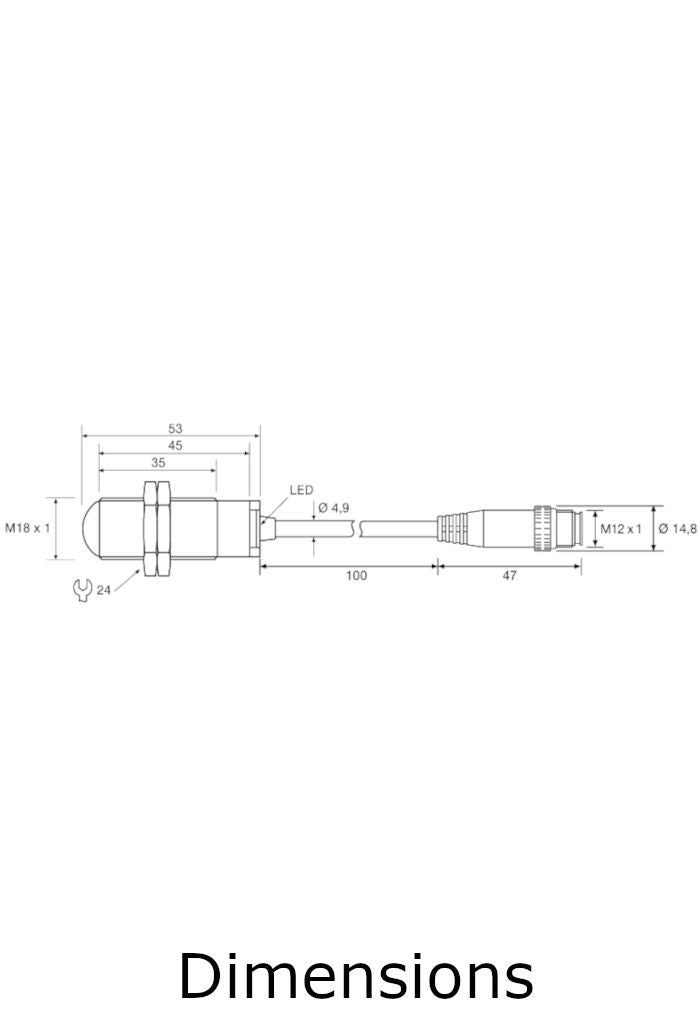

| Housing | M18 x 1 |
| Housing Material | Stainless Steel |

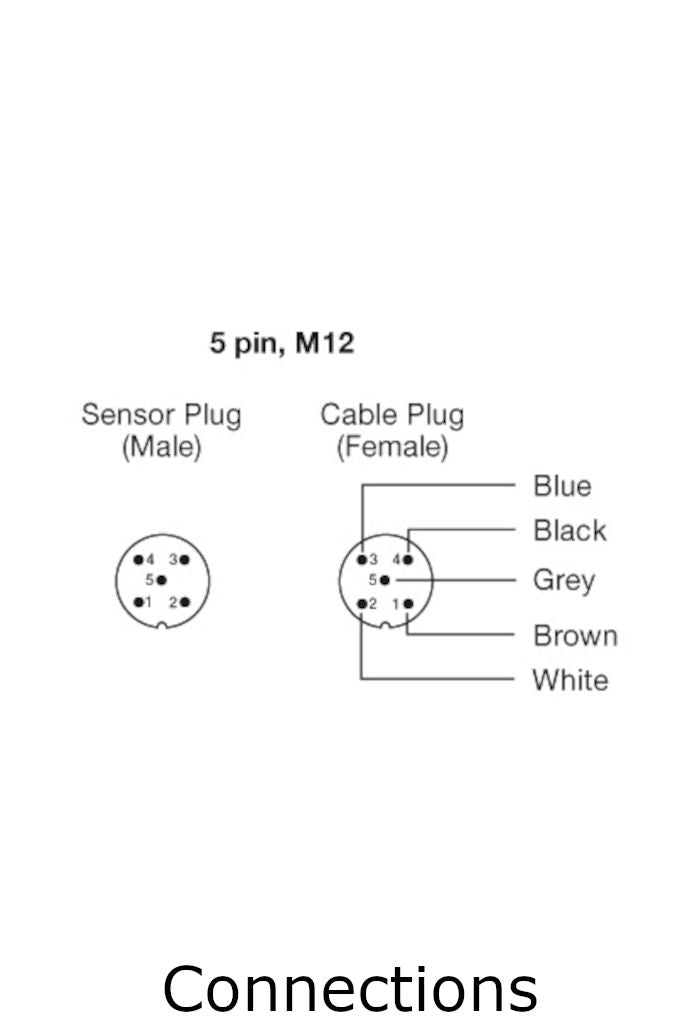

| Connection | 0.1 m cable with 5 pin, M12 |
Technical Data
| Channel Nº | Selectable 4 channels |
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Short Circuit Protected | Yes |
| Current Consumption | 40 mA |
| Max. Output Load | 100 mA |
| Max. Residual Voltage | 2,5 V |
| Max. Operation Frequency | 20 Hz |
| Response Time ton / toff | 25 ms / 25 ms |
| Output Indicator | Yellow LED |
| Hysteresis | Approx. 20 % |

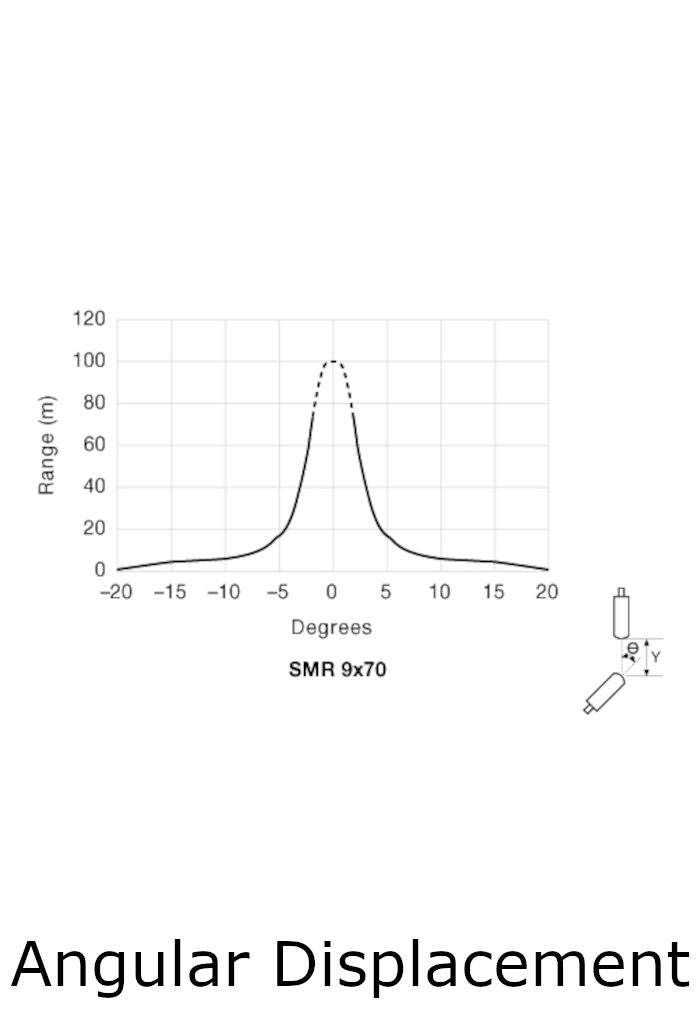

| Opening Angle | +/- 3° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316 / 1.4401) |
| Cable | 5 x 0,14 mm² |
| Cable Sleeve | PVC Ø 4,9 mm |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 69K |
| Light Immunity 5˚ | > 20 000 lux |
| Light Immunity 20˚ | > 100 000 lux |
