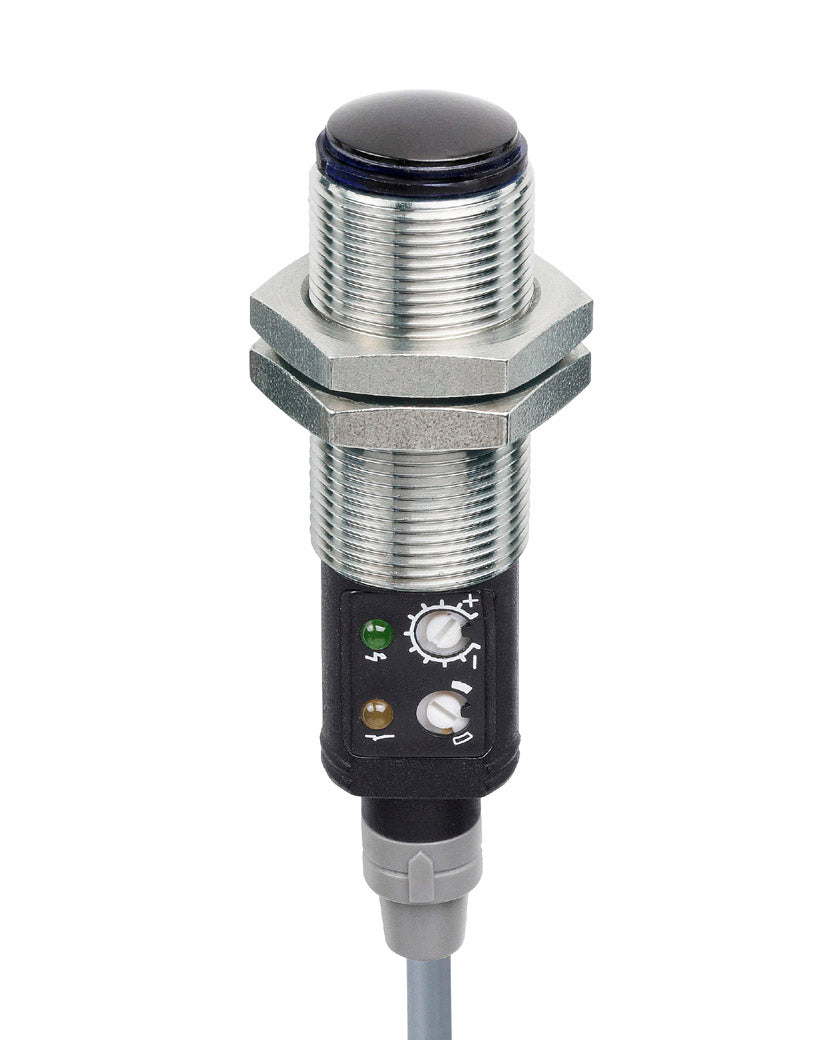

Telco SMR8420MG5

SKU: SMR8420MG5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$275.96

RECEIVER, STAINLESS, DC, NPN, 5M CABLE
  • Sensing Range 0–20 m
  • Response Time 5 ms
  • Switching Frequency 100 hz
  • Supply Voltage 10 to 30 V DC
  • Output NPN
  • Output State NC, NO
  • Maximum Load Current 120 mA
  • Controls Light Dark Selection, Sensitivity Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable, Through Beam
  • Housing M18 × 1
  • Housing Material Stainless Steel
  • Connection Integral Cable
  • Cable Length 5 m
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
