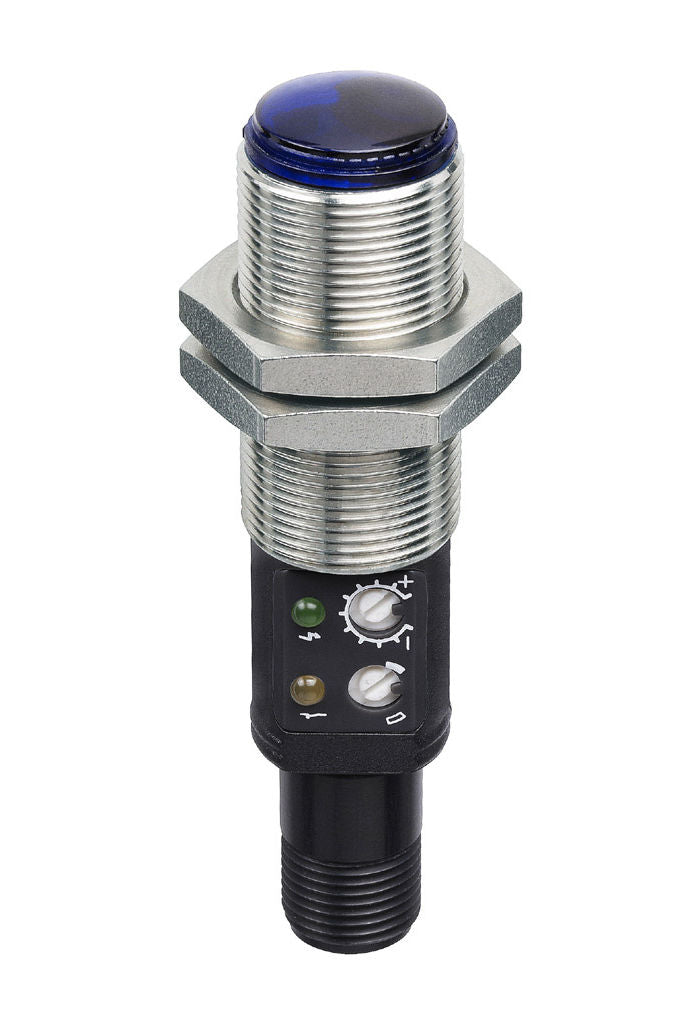

Telco Sensors SMR7620TSJ Photoelectric Sensor
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$275.00
Couldn't load pickup availability
Product Data
| Operation Mode | Thru Beam |
| Function | Receiver |
| Supply Voltage | 10 - 30 V dc |
| Control Feature | Sensitivity pot. and light/dark switch |

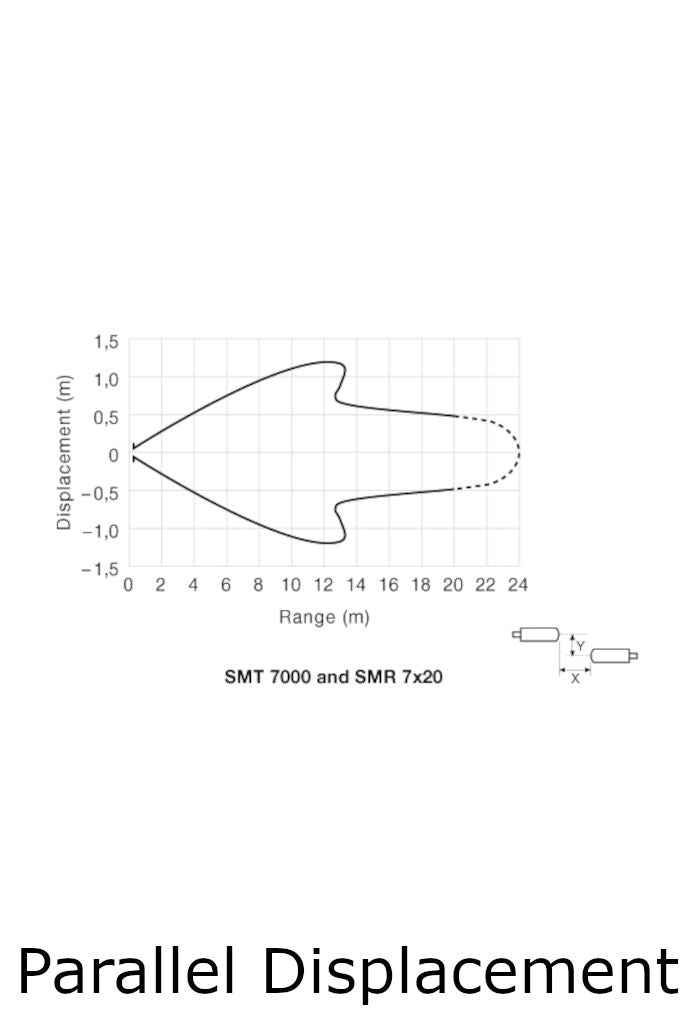

| Sensing Range | 20 m |

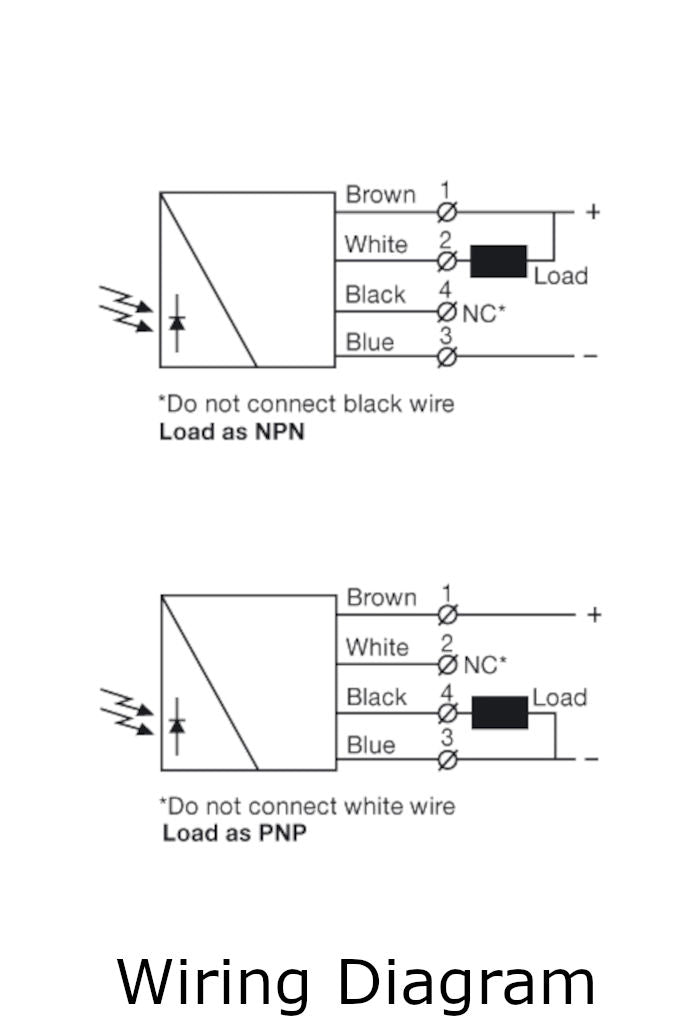

| Output | NPN/PNP |
| Output Status | N.C./N.O. |

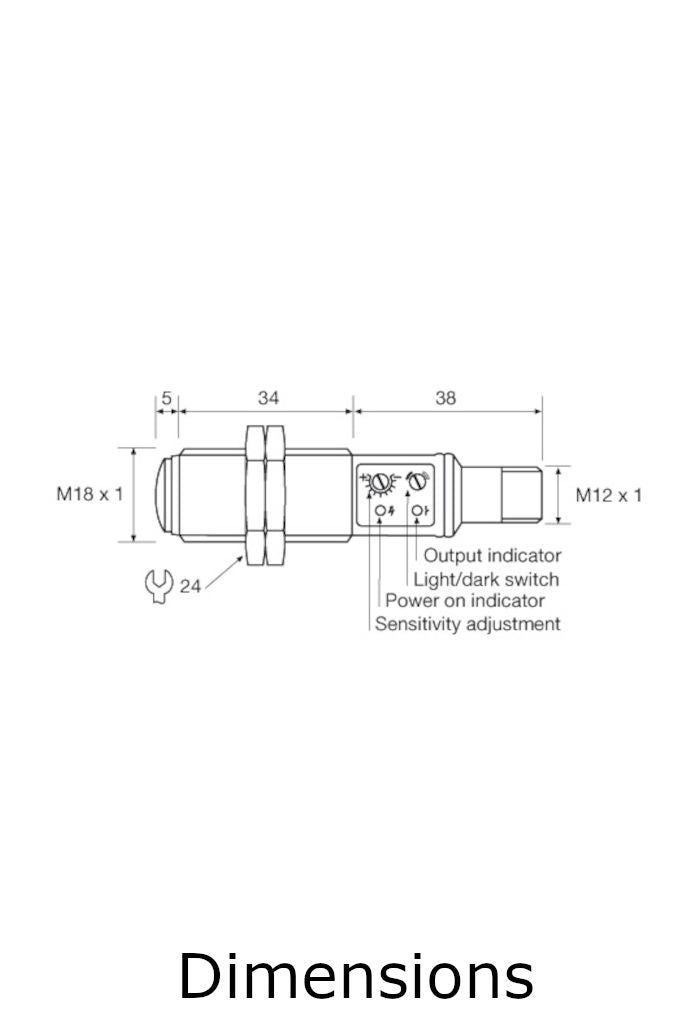

| Housing | M18 x 1 |
| Housing Material | Stainless Steel |

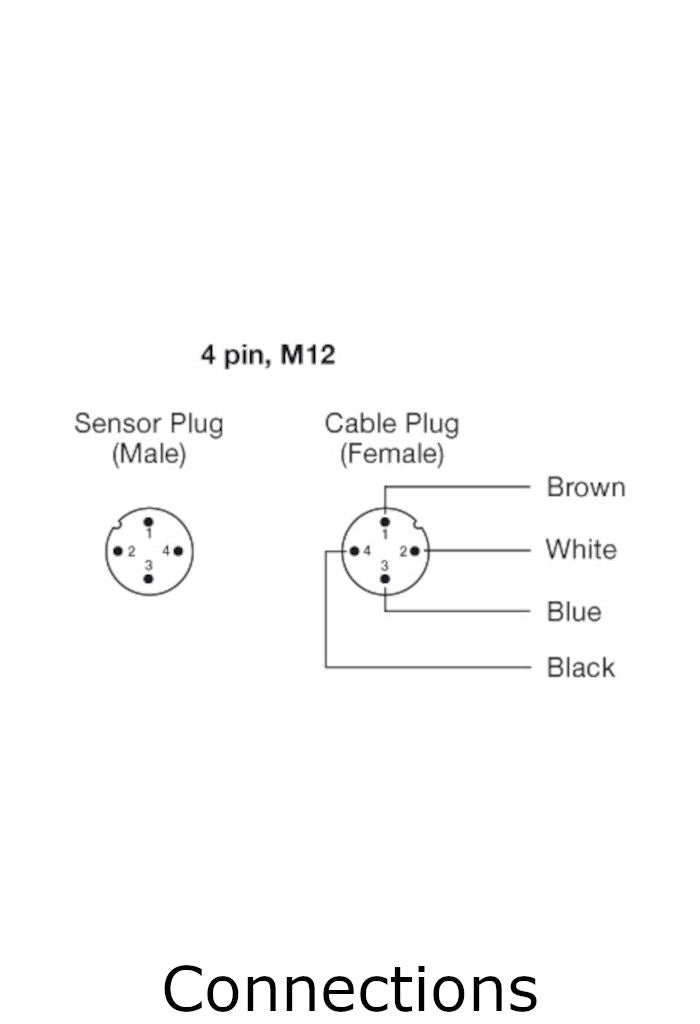

| Connection | 4 pin, M12 plug |
Technical Data
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Short Circuit Protected | Yes |
| Current Consumption | 15 mA |
| Max. Output Load | 120 mA / 30 V dc |
| Max. Residual Voltage | 2 V |
| Max. Operation Frequency | 1000 Hz |
| Response Time ton / toff | 0,5 ms / 0,5 ms |
| Power On Indicator | Green LED |
| Output Indicator | Yellow LED |
| Hysteresis | Approx. 15 - 20 % |

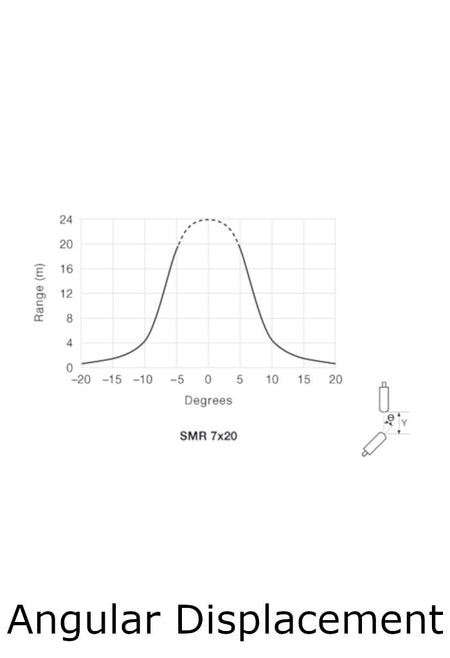

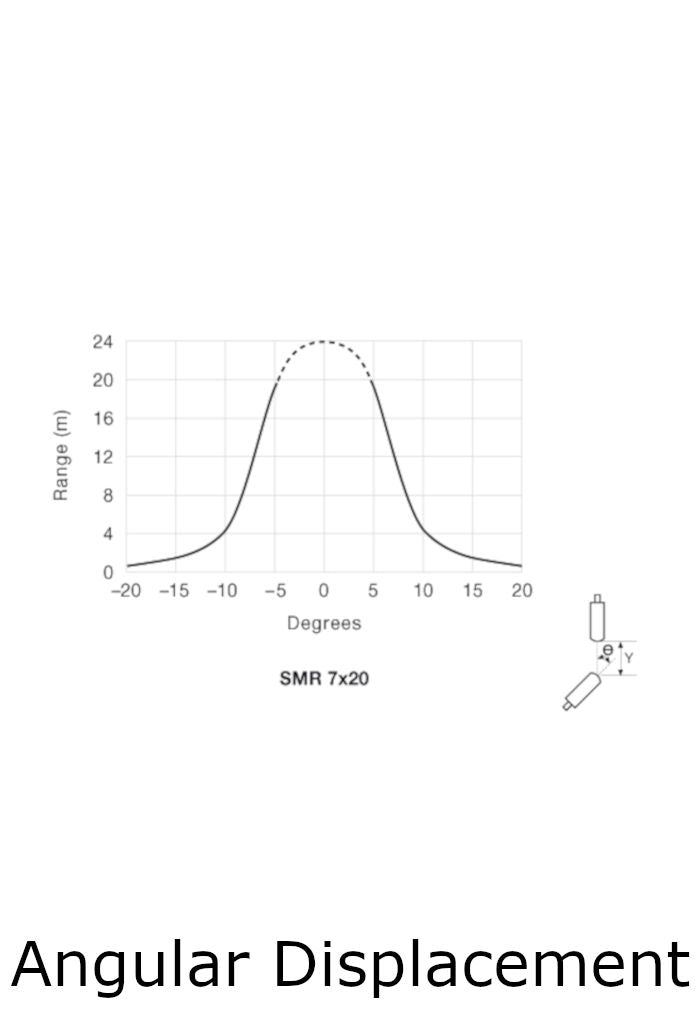

| Opening Angle | +/- 6° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316 / 1.4401) |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 5˚ | > 20 000 lux |
