Telco SMR7420-IO-TPJ

SKU: SMR7420-IO-TPJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$277.08

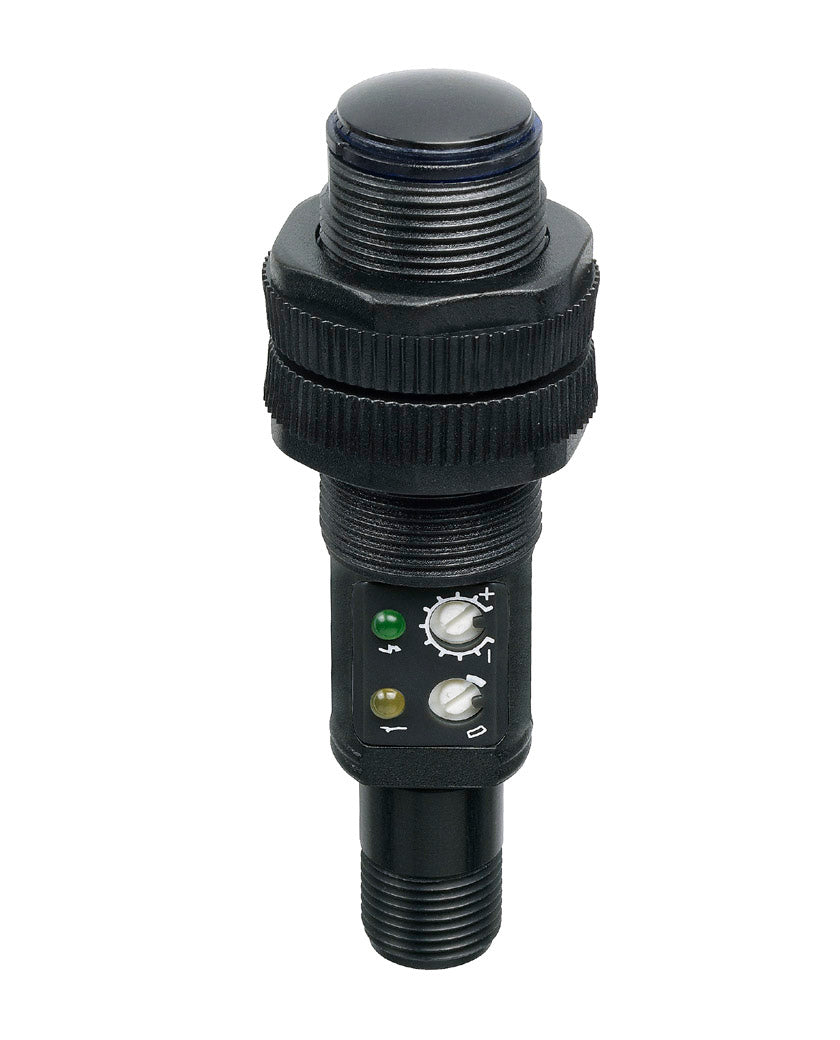

RECEIVER, PLASTIC, M18, NPN, WITH IO LINK, M12 QD, 4 PIN, PLASTIC
  • Sensing Range 0–20 m
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Features IO-Link
  • Supply Voltage 10 to 30 V DC
  • Output NPN, Push-Pull
  • Maximum Load Current 200 mA
  • Controls Light Dark Selection, Sensitivity Adjustment
  • Operating Modes Dark Operated, IO-Link Configurable, Light Operated, Selectable, Through Beam
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection M12 Plug
  • Pin Count 4
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
