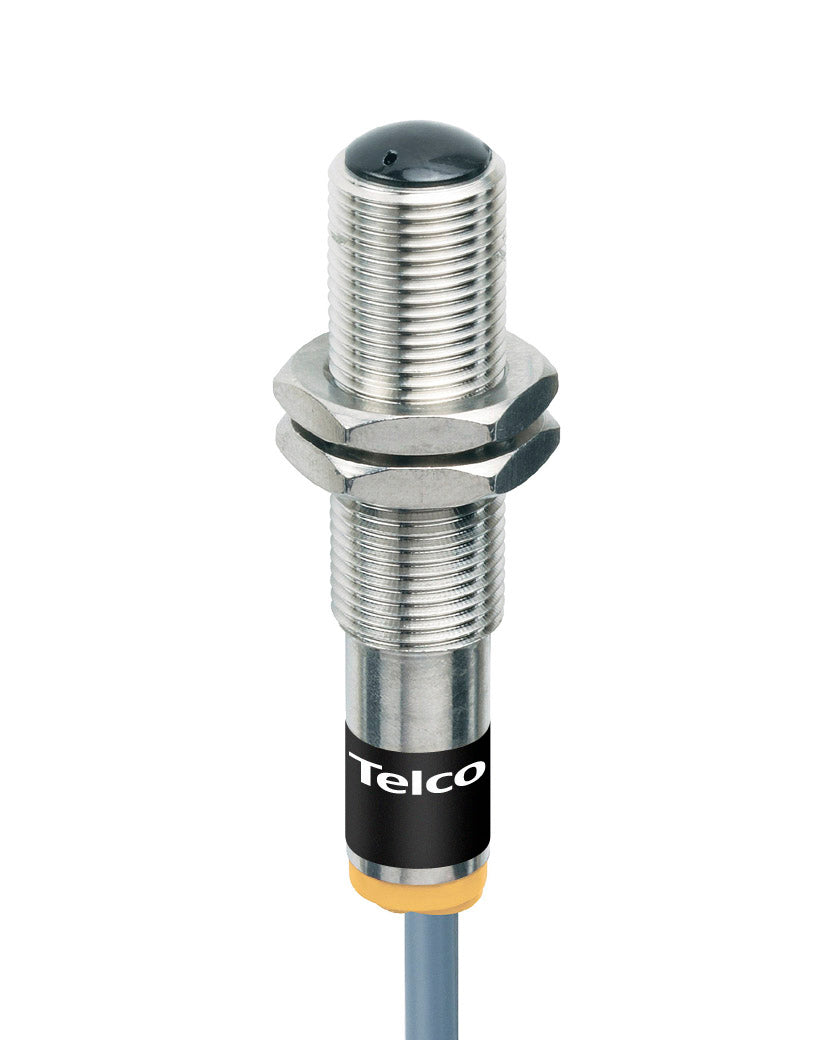

Telco SMR6206TS5

SKU: SMR6206TS5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$201.92

RECEIVER, STAINLESS, PNP, NC, LIGHT OPERATED, 5M CABLE
  • Sensing Range 0–6 m
  • Ambient Light Immunity 50,000 lux at 5° incidence
  • Hysteresis Approximately 30%
  • Response Time 5 ms
  • Switching Frequency 100 hz
  • Supply Voltage 10 to 32 V DC
  • Output PNP
  • Output State NC
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 10 mA
  • Operating Modes Light Operated, Through Beam
  • Housing M12 × 1
  • Housing Material Stainless Steel
  • Connection Integral Cable
  • Cable Length 5 m
  • Cable Material PVC
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
