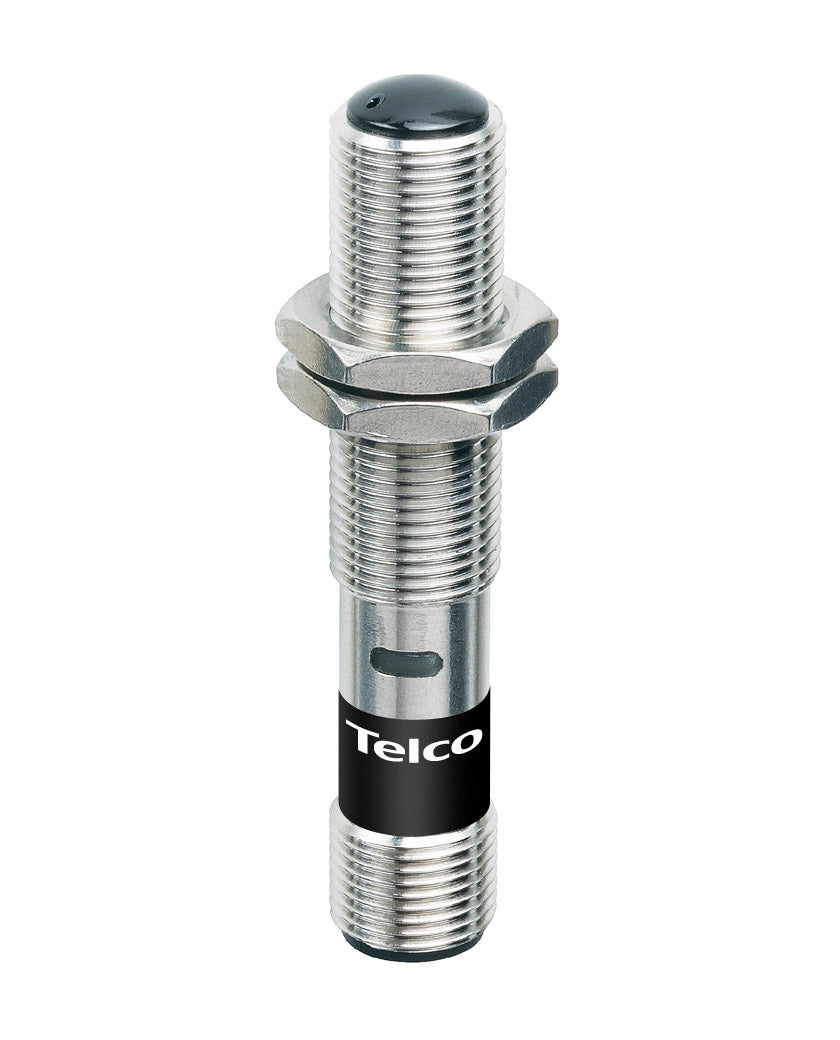

Telco SMR6102TSJ

SKU: SMR6102TSJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$198.08

RECEIVER, STAINLESS, NPN, NO, DARK OPERATED, 4P M12 QD
  • Sensing Range 0–2 m
  • Ambient Light Immunity 50,000 lux at 5° incidence
  • Hysteresis Approximately 30%
  • Response Time 0.5 ms
  • Switching Frequency 1000 hz
  • Supply Voltage 10 to 32 V DC
  • Output NPN
  • Output State NO
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 10 mA
  • Operating Modes Dark Operated, Through Beam
  • Housing M12 × 1
  • Housing Material Stainless Steel
  • Connection M12 Plug
  • Pin Count 4
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
