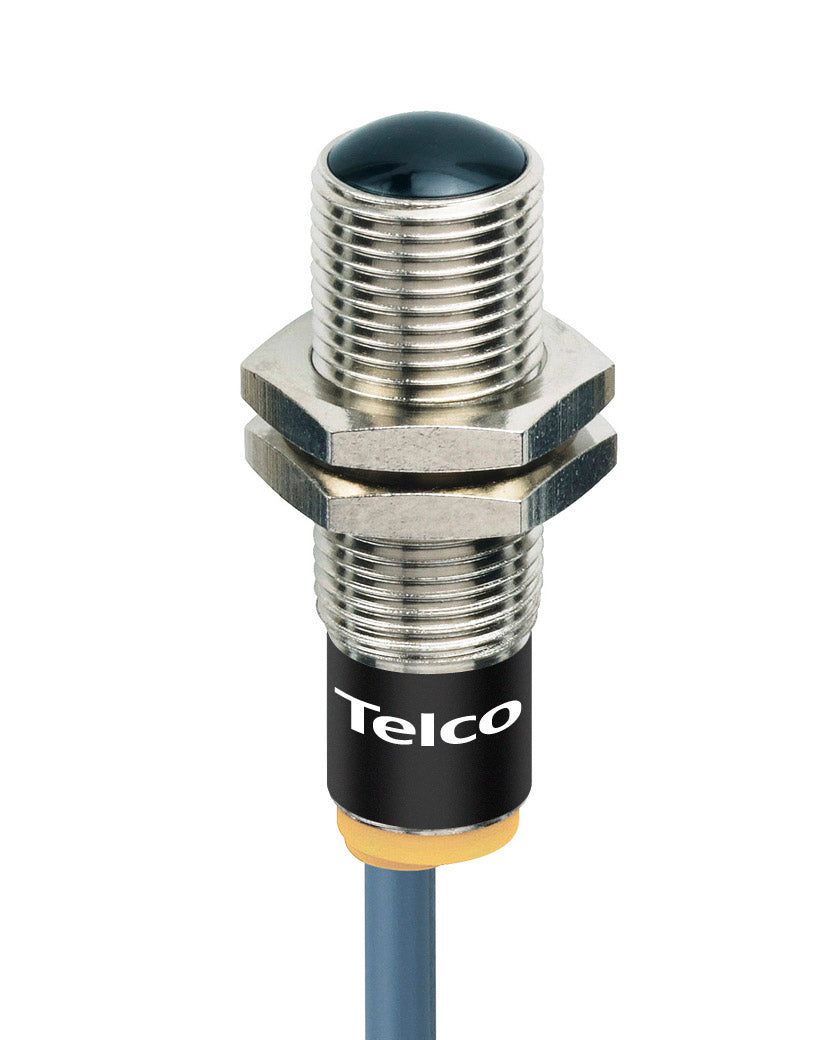

Telco SMR3115TB5

SKU: SMR3115TB5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$214.13

RECEIVER, NP BRASS, NPN, NO, DARK OPERATED 5M CABLE
  • Sensing Range 0–15 m
  • Ambient Light Immunity 35,000 lux at 5° incidence
  • Hysteresis Approximately 30%
  • Response Time <13 ms on / <6 ms off
  • Switching Frequency Over 40 hz
  • Supply Voltage 10 to 30 V DC
  • Output NPN
  • Output State NO
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 8 mA
  • Operating Modes Dark Operated, Through Beam
  • Housing M12 × 1
  • Housing Material Nickel Plated Brass
  • Connection Integral Cable
  • Cable Length 5 m
  • Cable Material PVC
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +50 °C
