Telco SMP7601TPJ

SKU: SMP7601TPJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$279.81

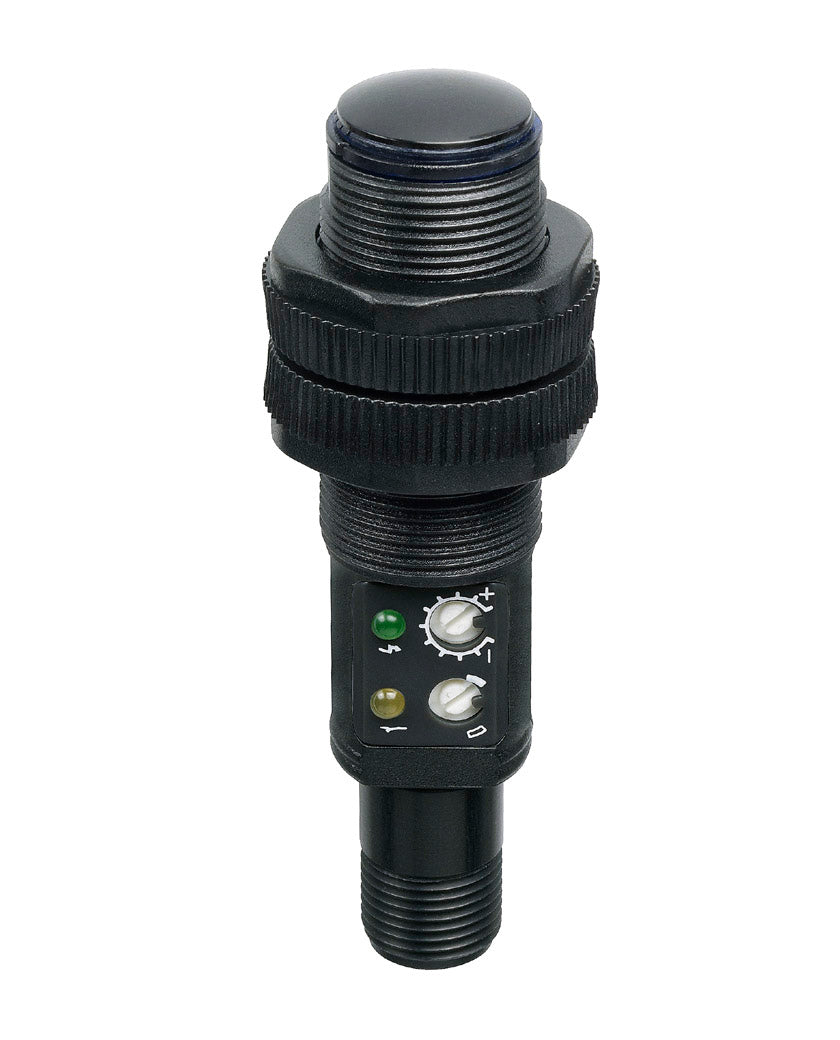

PROXIMITY SENSOR, PLASTIC, DC, NPN/PNP,1M RANGE, PLASTIC BODY, 4P M12 QD
  • Sensing Range 0.15–1 m
  • Light Source Infrared 880 nm
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Supply Voltage 10 to 30 V DC
  • Output NPN, PNP
  • Output State NC, NO
  • Maximum Load Current 120 mA
  • Controls Light Dark Selection, Sensitivity Adjustment
  • Operating Modes Dark Operated, Diffuse Proximity, Light Operated, Selectable
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection M12 Plug
  • Pin Count 4
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
