Telco Sensors

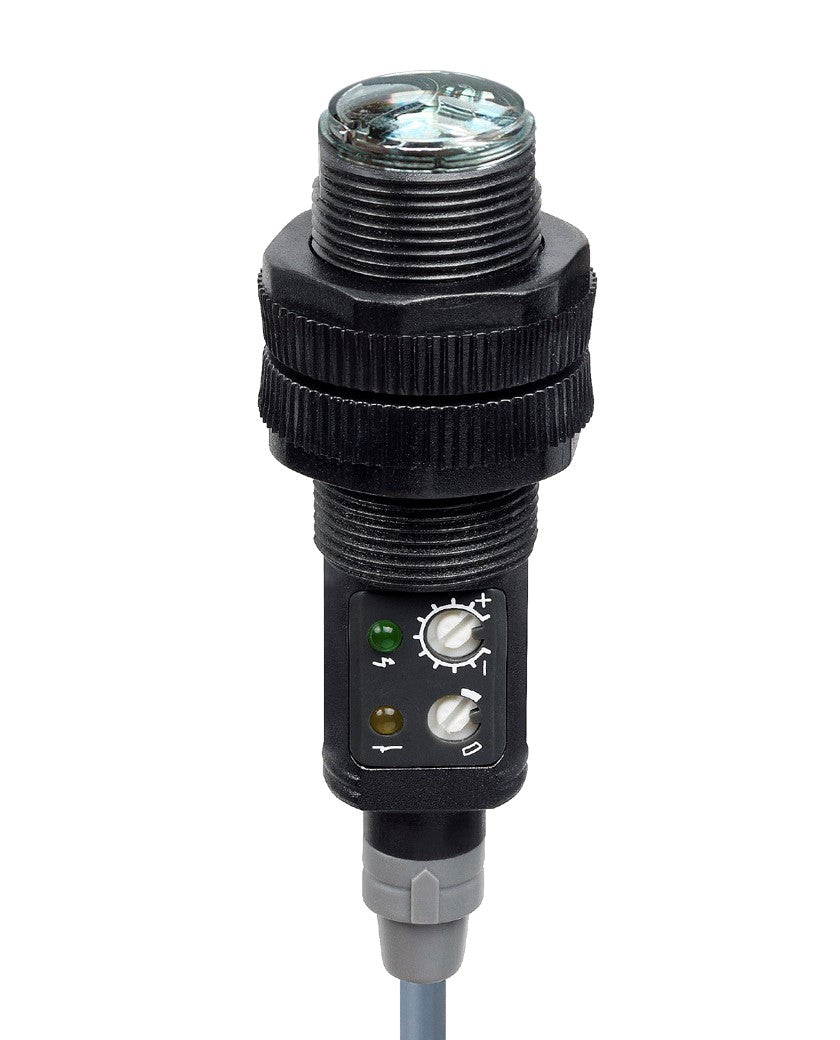

Telco SMP7600RTP5

SKU: SMP7600RTP5
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$220.83

PROXIMITY SENSOR, PLASTIC, VISIBLE RED, DC, NPN/PNP, 5M CABLE
  • Sensing Range 0–35 cm
  • Light Source Visible Red 620 nm
  • Ambient Light Immunity 20,000 lux at 15° incidence
  • Hysteresis Approximately 3–10%
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Supply Voltage 10 to 30 V DC
  • Output NPN, PNP
  • Maximum Load Current 120 mA
  • Current Consumption 20 mA
  • Controls Sensitivity Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection Integral Cable
  • Cable Length 5 m
  • Cable Material PVC
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
