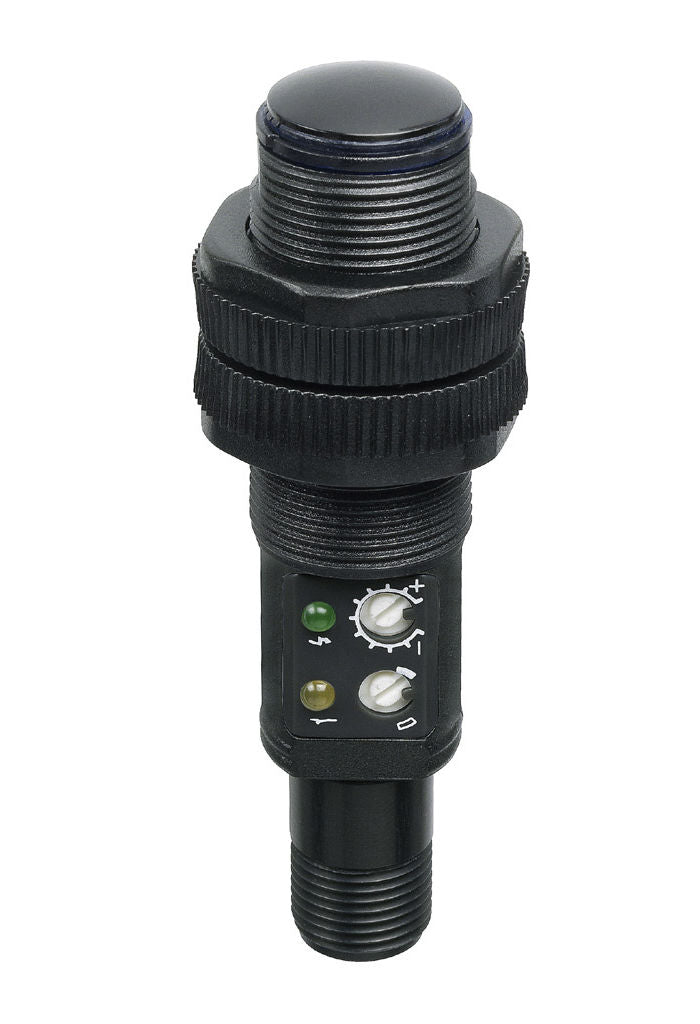

Telco SMP7400-IO-TPJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$278.12
Couldn't load pickup availability
Product Data
| Operation Mode | Diffuse Proximity |
| Function | Both |
| Supply Voltage | 10 - 30 V dc |
| Control Feature | Sensitivity pot. and light/dark switch |
| Sensing Range | 0,5 m |
| Output | NPN (IO-Link) |
| Output Status | N.C./N.O. |
| Housing | M18 x 1 |
| Housing Material | Plastic |
| Connection | 4 pin, M12 plug |
| Features | IO-Link communication port |
Technical Data
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Short Circuit Protected | Yes |
| Current Consumption | 30 mA |
| Max. Output Load | 200 mA / 30 V dc |
| Max. Residual Voltage | 2 V |
| Max. Operation Frequency | 250 Hz |
| Response Time ton / toff | 2 ms / 2 ms |
| Power On Indicator | Green LED |
| Output Indicator | Yellow LED |
| Hysteresis | Approx. 3 - 10 % |
| Opening Angle | +/- 4° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
