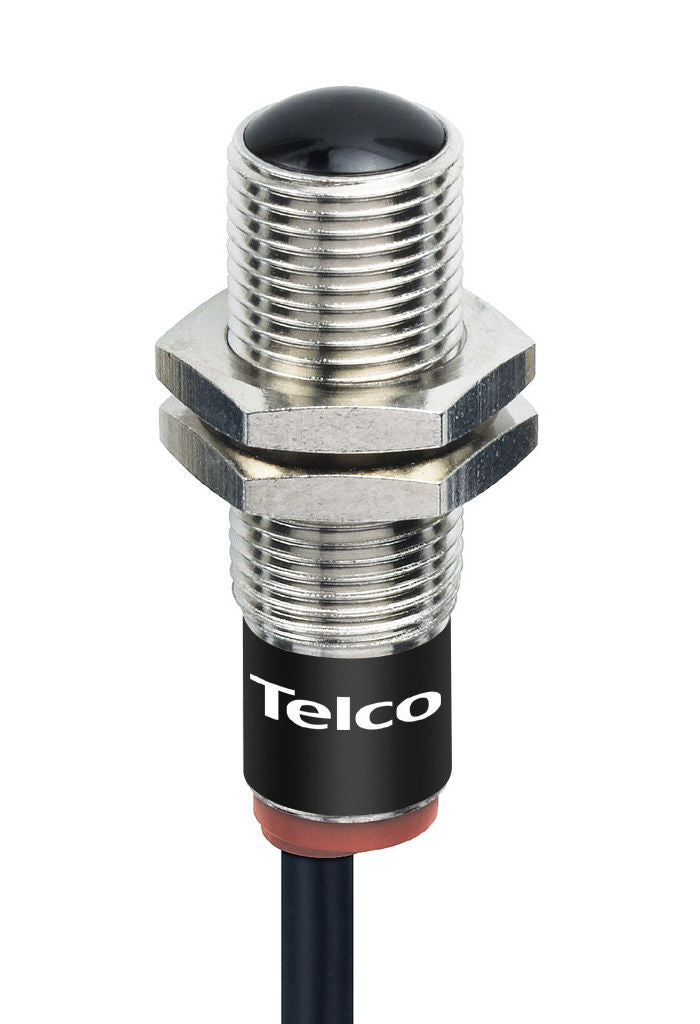

Telco Sensors LT110LTB3815 Transmitter
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$130.94
Couldn't load pickup availability
Product Data
| Function | Transmitter |
| Sensing Range | Up to 40 m |
| Indicators | Yes |

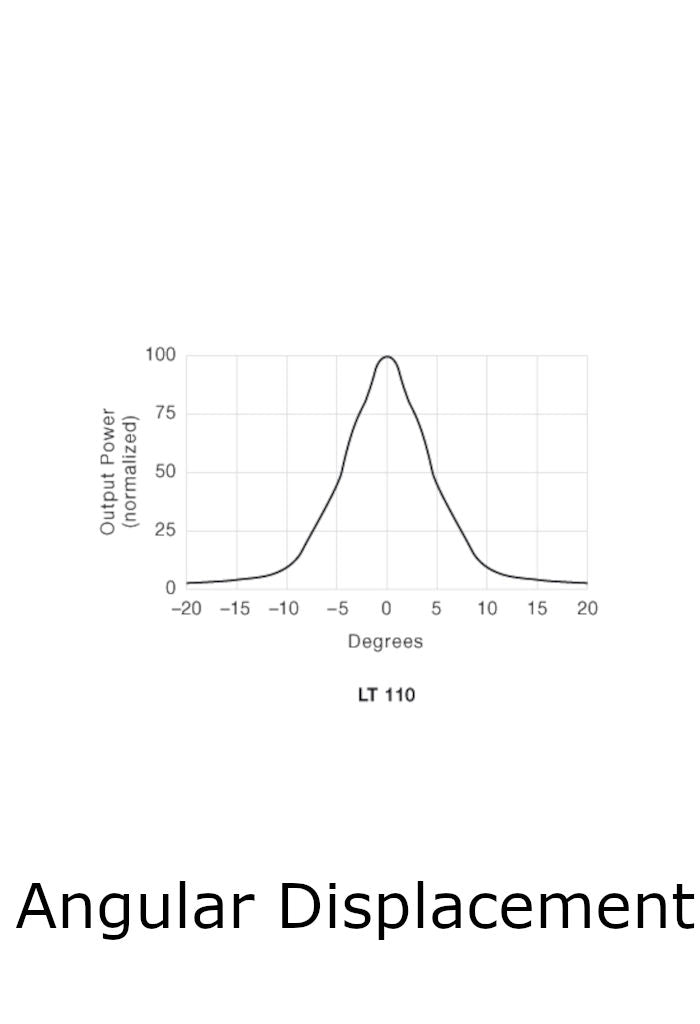

| Optical Angle | +/- 5° (emission) |

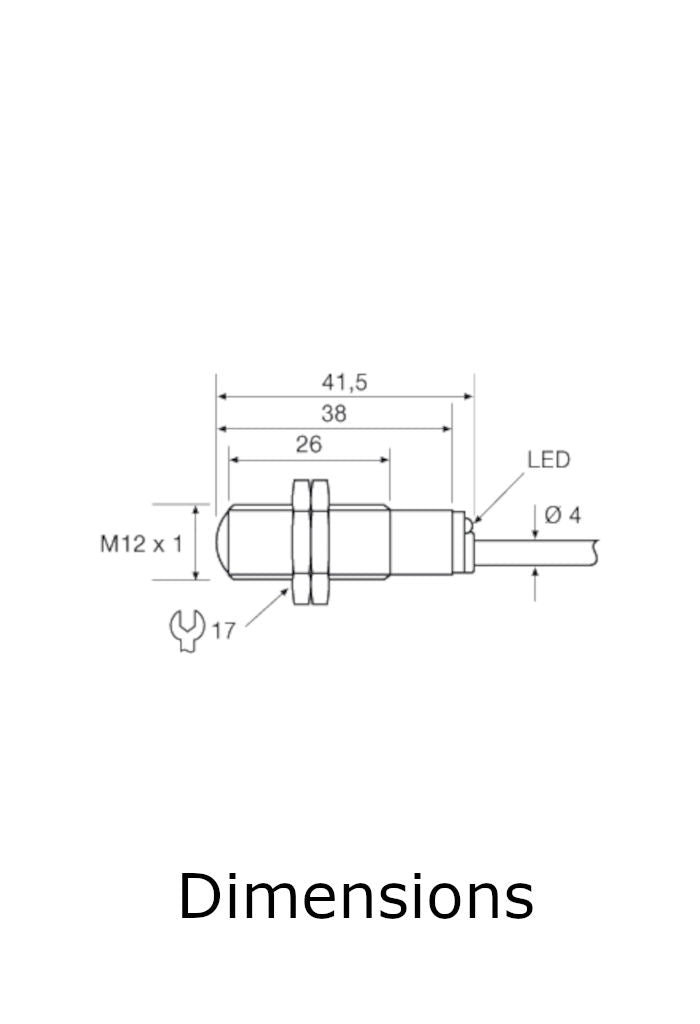

| Housing | M12 x 1 |
| Housing Material | Nickel Plated Brass |
| Connection | 15 m cable |
Technical Data
| Transmitter Diode | Ga Al As, (880 nm) |
| Output Indicator | Yellow LED |
| Light Source | Infrared |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Nickel Plated Brass |
| Cable | 2 x 0,25 mm² |
| Cable Sleeve | PVC Ø 4,0 mm |
| Min. Cable Bending Radius | 45 mm |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 100 000 lux |
