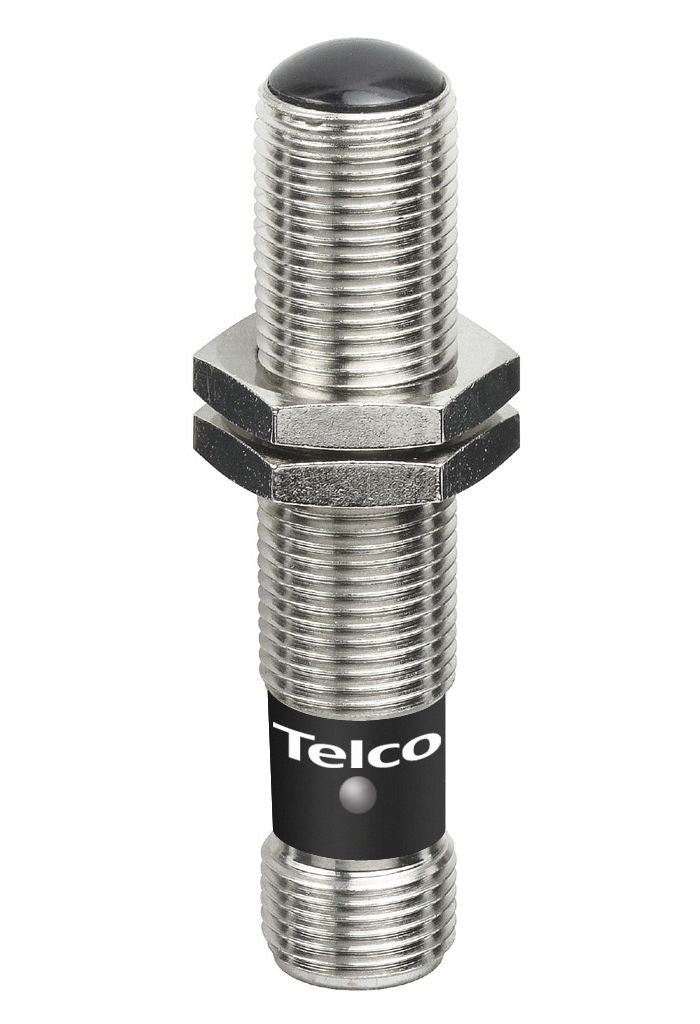

Telco Sensors LT100HLTS58J Transmitter
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$130.00
Couldn't load pickup availability
Product Data
| Function | Transmitter |
| Sensing Range | Up to 24 m |
| Indicators | None |

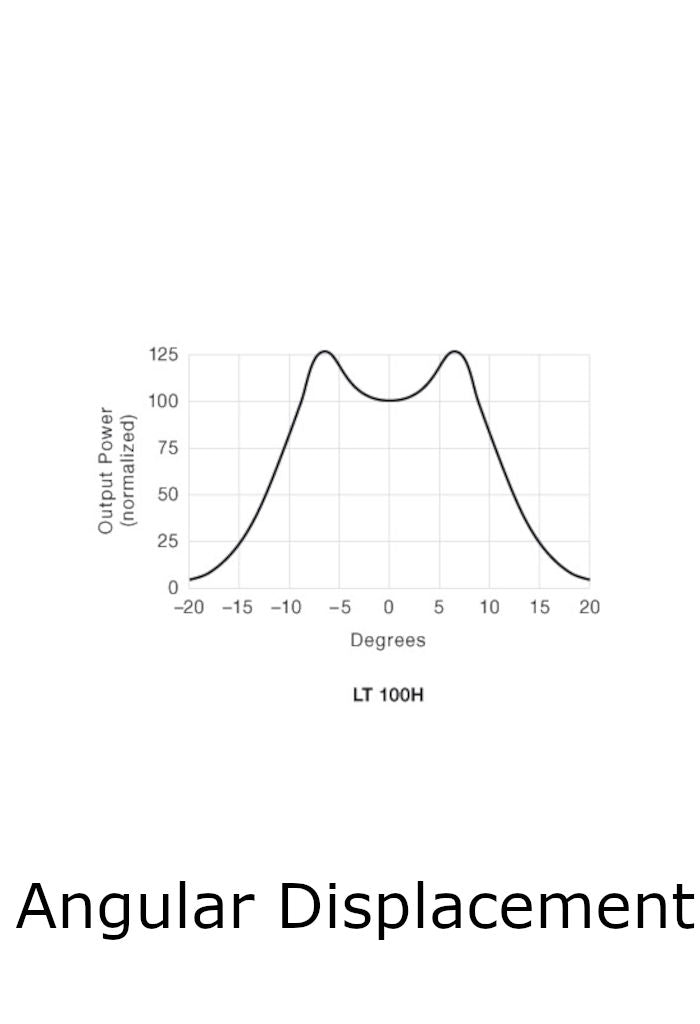

| Optical Angle | +/- 12° (emission) |
| Housing | M12 x 1 |
| Housing Material | Stainless Steel |

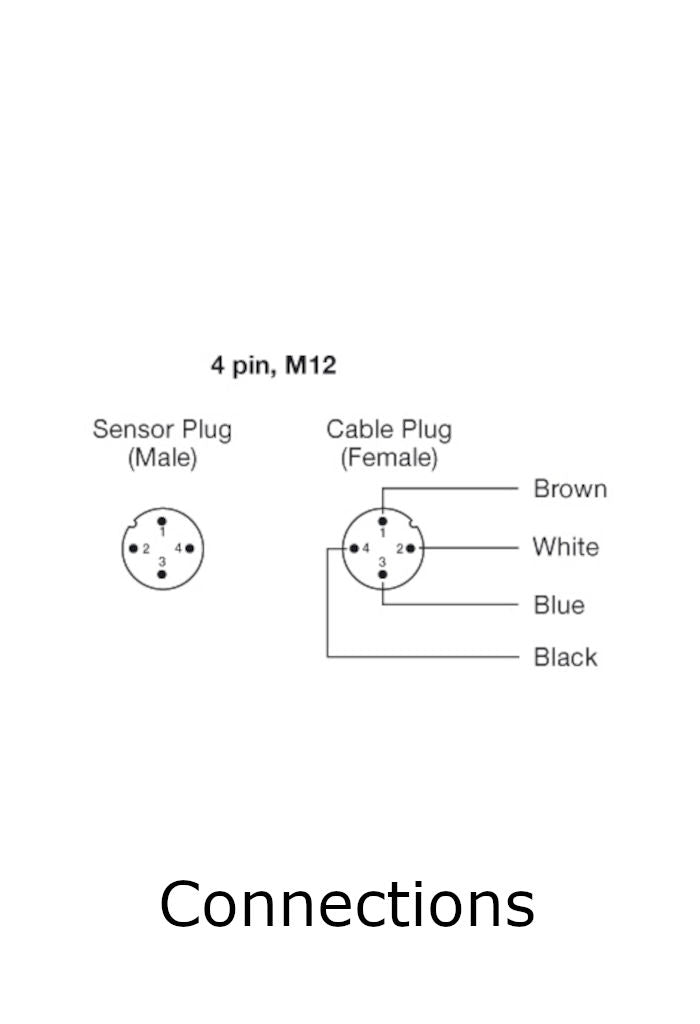

| Connection | 4 pin, M12 plug |
Technical Data
| Transmitter Diode | Ga Al As, (880 nm) |
| Output Indicator | Yellow LED |
| Light Source | Infrared |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316) |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 80 000 lux |
- Light Source
- Features
- Operating Modes
- Housing
- Housing Material
- Connection
- Pin Count
- Front Lens Material
- Protection Rating
- Operating Temperature Range
