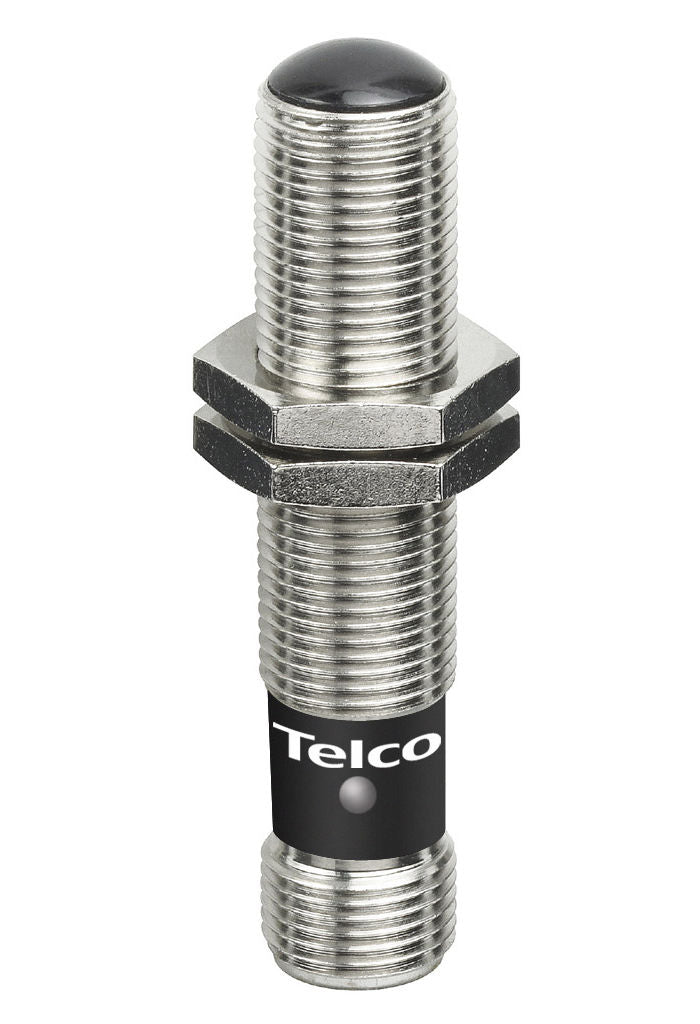

Telco Sensors LR110LTS58J Receiver
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
Regular price
$219.00
Couldn't load pickup availability
Product Data
| Function | Receiver |
| Sensing Range | Up to 40 m |
| Indicators | Yes |

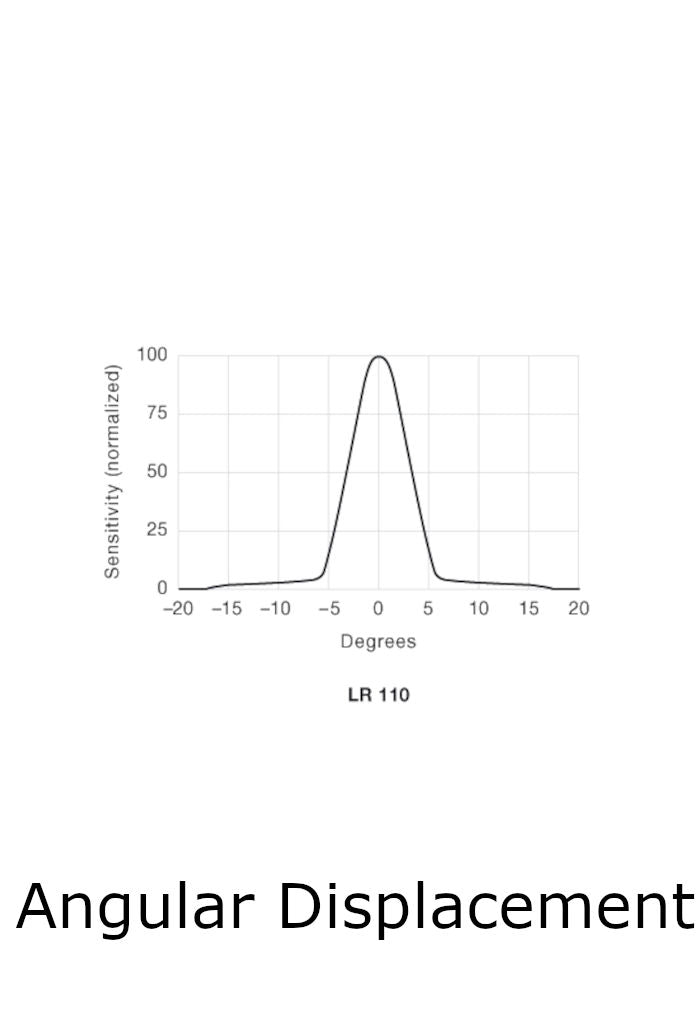

| Optical Angle | +/- 3° (opening) |

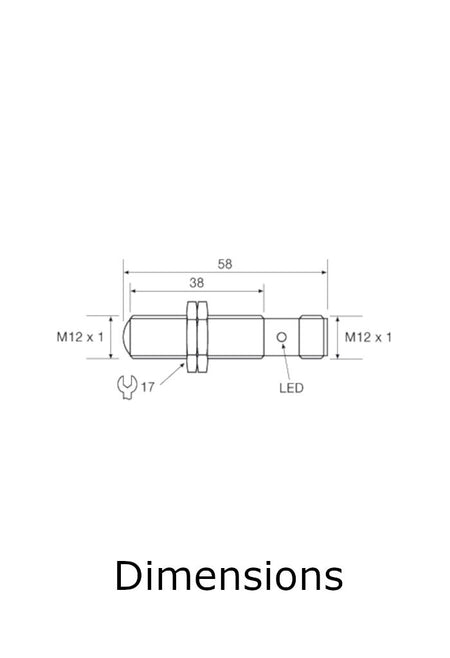

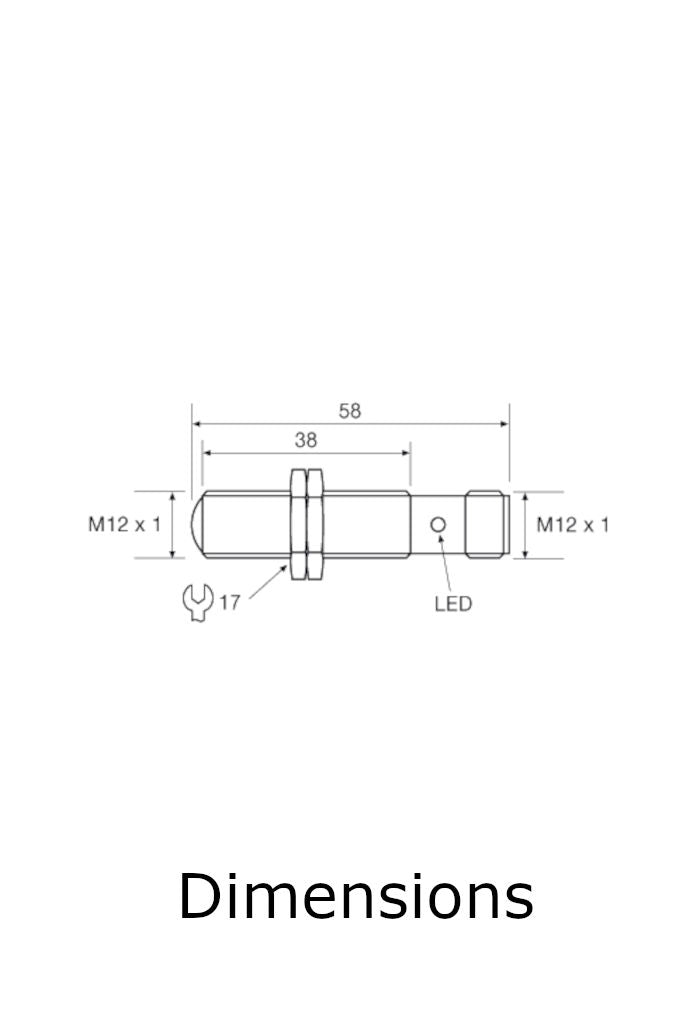

| Housing | M12 x 1 |
| Housing Material | Stainless Steel |

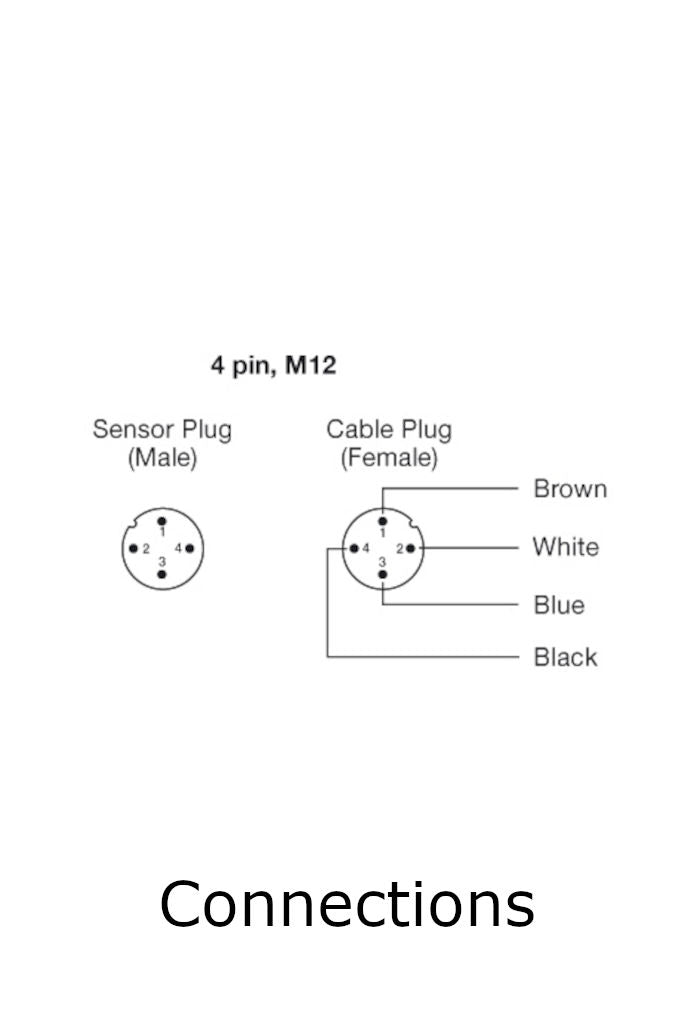

| Connection | 4 pin, M12 plug |
Technical Data
| Photo Transistor | Silicon NPN |
| Power On Indicator | Green LED |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316) |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 100 000 lux |
