Telco 001199

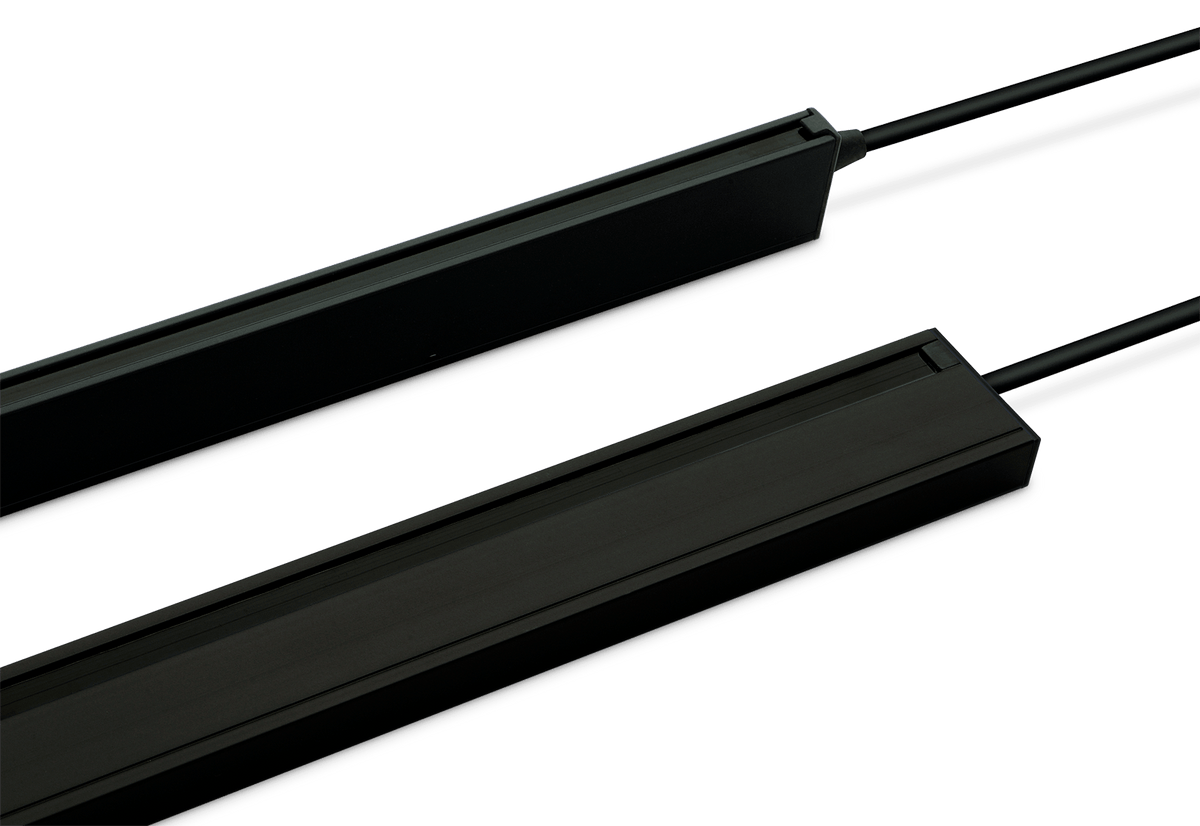

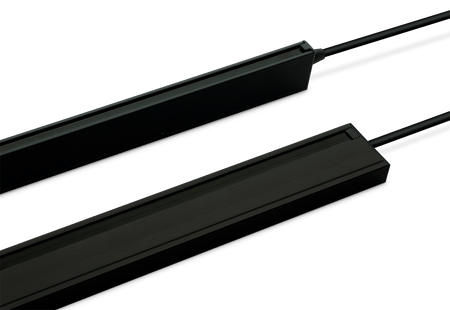

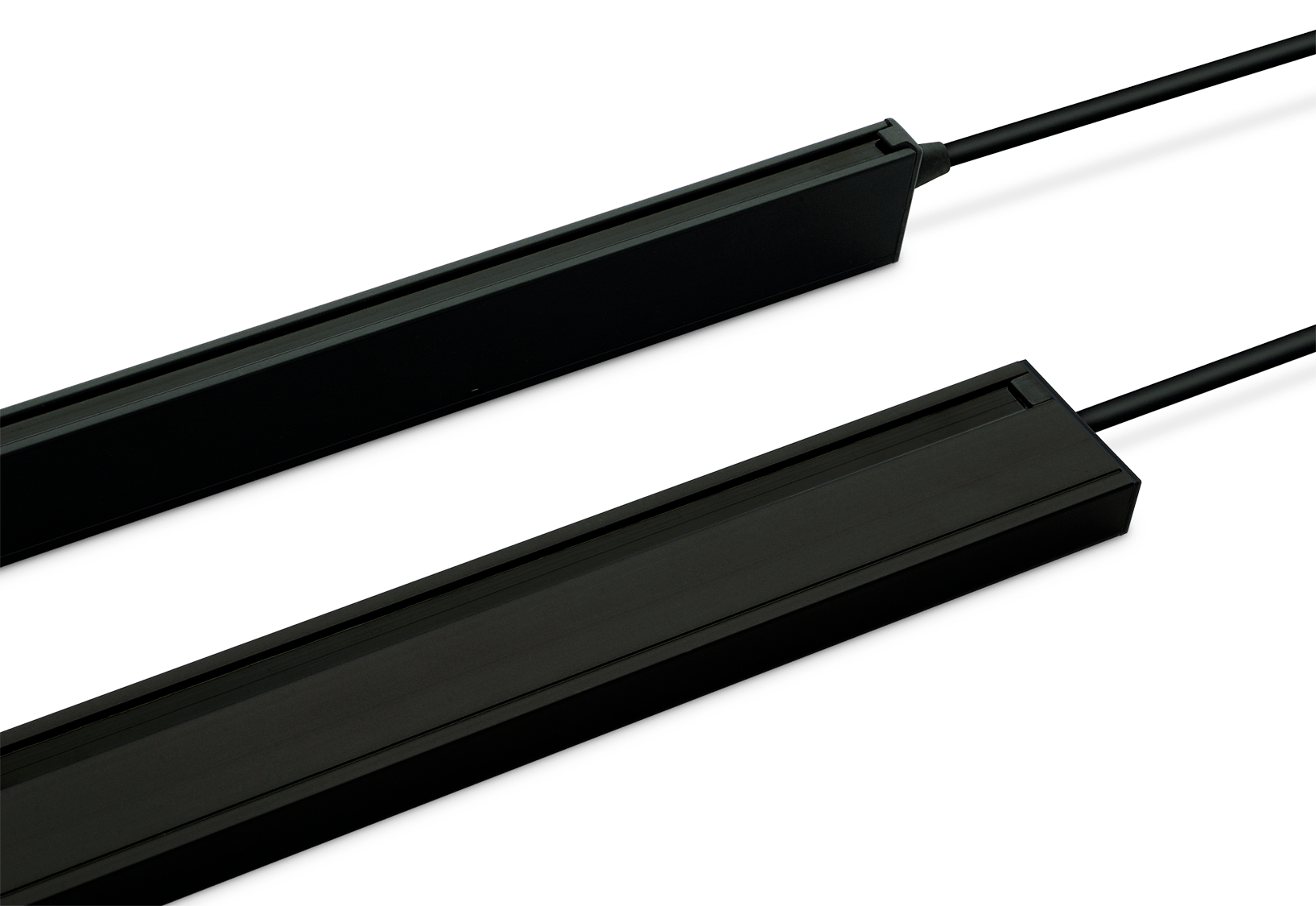

The Telco 001199 is the high-gain blanking receiver element of the SG14 Spaceguard light curtain, with an M12 connection and blue color-coding. The SG14 Spaceguard is a self-contained through-beam light curtain; the receiver runs on 12–36 V DC with a short-circuit-protected solid-state relay output, in an IP67 black-anodised aluminium housing with an M12 connection. Its automatic signal-tracking (AST) feature adjusts each channel's sensitivity so no onsite setup is required. Its dynamic sequential blanking function lets the curtain sit in an industrial door's guide tracks, ignoring the beams the moving door interrupts while keeping the rest active to detect objects below the door edge. It pairs with the Telco 001198 blanking transmitter.

A hard-to-find Telco OEM replacement part carried by Piedmont Technical Sales. It ships as an oversized item in a protective tube (~8 ft). Lead times can vary — order online, or call to confirm current availability before you buy.
