Techtop XR3-CI-TF-184T-2-B-D-5 Three Phase Cast Iron Motor

SKU: XR3-CI-TF-184T-2-B-D-5
Call Us for Volume Discount Availability 704.519.4661
$822.00
  • SKU XR3-CI-TF-184T-2-B-D-5
  • Motor Group Three Phase Cast Iron
  • HP 5
  • Voltage 230/460
  • RPM 3600
  • Frame Size 184T
  • Enclosure Type TEFC

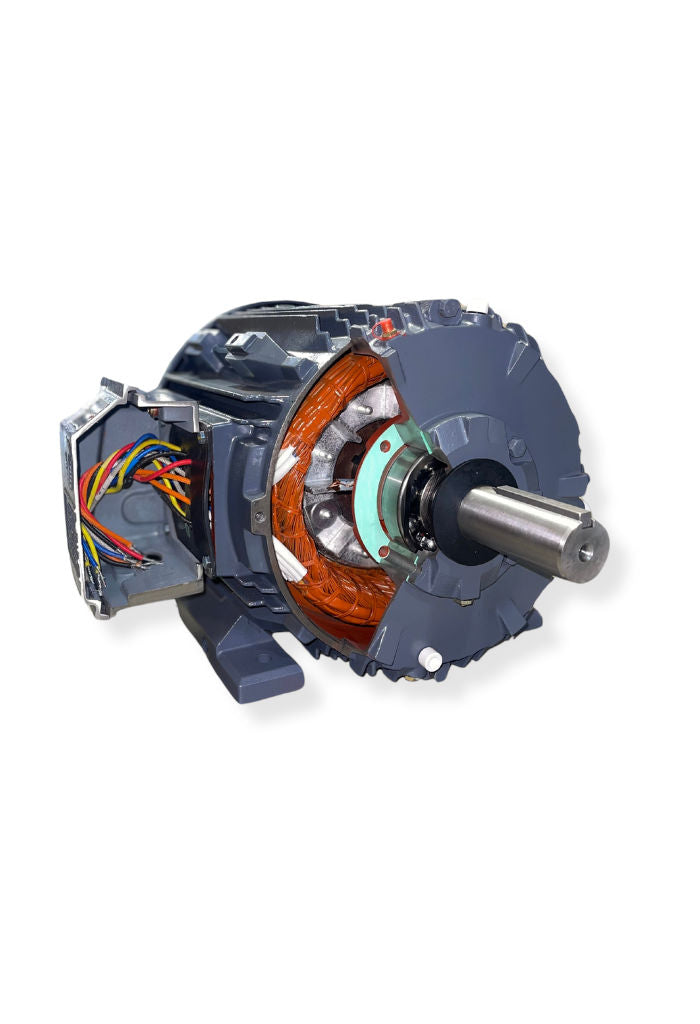

The Techtop XR3-CI-TF-184T-2-B-D-5 is a 5 HP, 3600 RPM three phase cast iron motor in a 184T frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Voltage ratings: 230/460V at 60 Hz (IE4), 190/380V at 50 Hz (IE3), 200-208/400-416V at 60 Hz (IE3)
  • Efficiency: Super premium efficiency
  • Bearings: Ball bearings
  • Mounting: Removable feet
  • Shaft grounding: Grounding brush
