Techtop XR3-AL-TF-80B34-4-B-D-1 Metric IEC Three Phase Motor

SKU: XR3-AL-TF-80B34-4-B-D-1
Call Us for Volume Discount Availability 704.519.4661
$567.00
  • SKU XR3-AL-TF-80B34-4-B-D-1
  • Motor Group Metric IEC Three Phase
  • HP 1
  • Voltage 230/460
  • RPM 1800
  • Frame Size 80B34
  • Enclosure Type TEFC

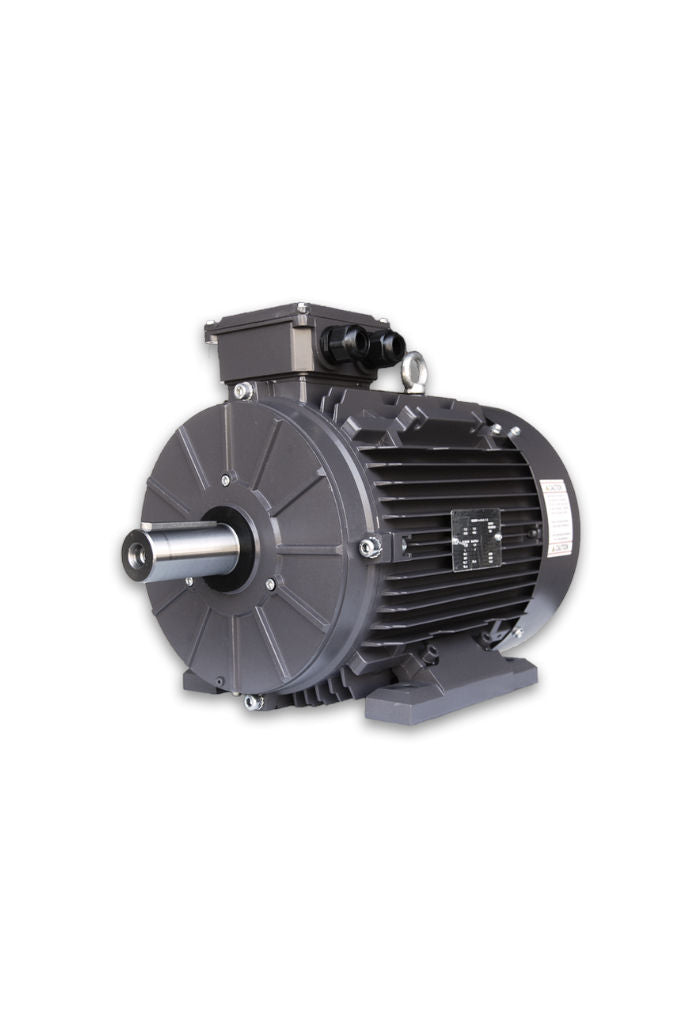

The Techtop XR3-AL-TF-80B34-4-B-D-1 is a 1 HP, 1800 RPM metric IEC three phase motor in an 80 B34 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Voltage ratings: 230/460V at 60 Hz (IE4), 190/380V at 50 Hz (IE3), 200-208/400-416V at 60 Hz (IE3)
  • Efficiency: IE4
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B34 foot mount with B14 face, removable feet
  • Shaft grounding: Grounding brush
