Techtop XR3-AL-TF-132SB3-6-B-D-4 Metric IEC Three Phase Motor

SKU: XR3-AL-TF-132SB3-6-B-D-4
Call Us for Volume Discount Availability 704.519.4661
$1,679.00
  • SKU XR3-AL-TF-132SB3-6-B-D-4
  • Motor Group Metric IEC Three Phase
  • HP 4
  • Voltage 230/460
  • RPM 1200
  • Frame Size 132SB3
  • Enclosure Type TEFC

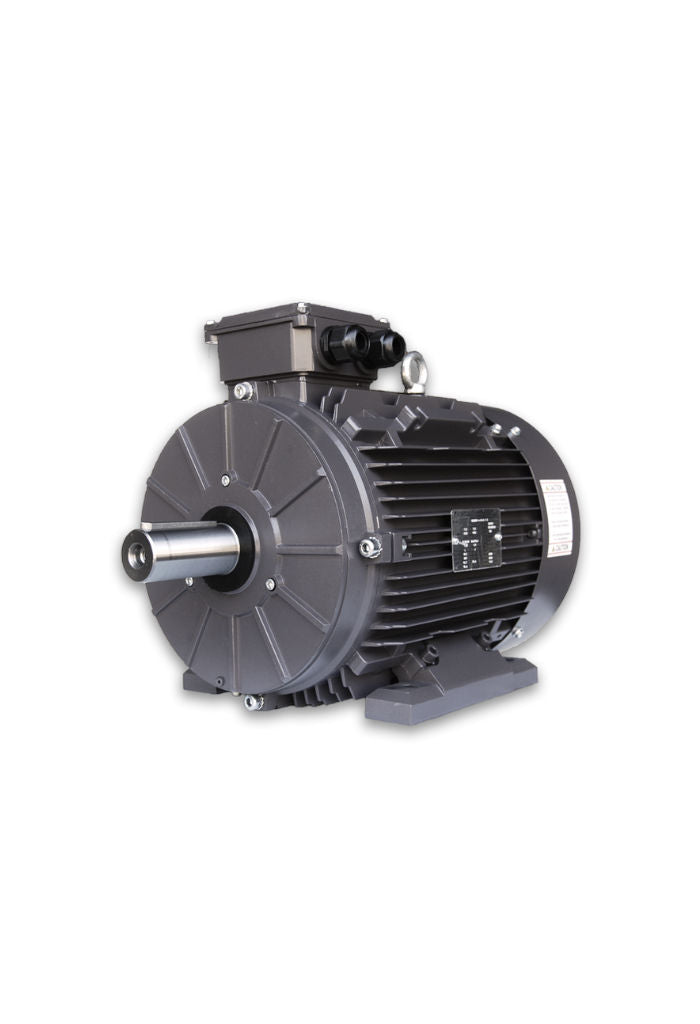

The Techtop XR3-AL-TF-132SB3-6-B-D-4 is a 4 HP, 1200 RPM metric IEC three phase motor in a 132S B3 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Voltage ratings: 230/460V at 60 Hz (IE4), 190/380V at 50 Hz (IE3), 200-208/400-416V at 60 Hz (IE3)
  • Efficiency: IE4
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B3 foot mount, removable feet
  • Shaft grounding: Grounding brush
