Techtop XR3-AL-TF-132MB34-2-B-D-15 Metric IEC Three Phase Motor

SKU: XR3-AL-TF-132MB34-2-B-D-15
Call Us for Volume Discount Availability 704.519.4661
$2,534.00
  • SKU XR3-AL-TF-132MB34-2-B-D-15
  • Motor Group Metric IEC Three Phase
  • HP 15
  • Voltage 230/460
  • RPM 3600
  • Frame Size 132MB34
  • Enclosure Type TEFC

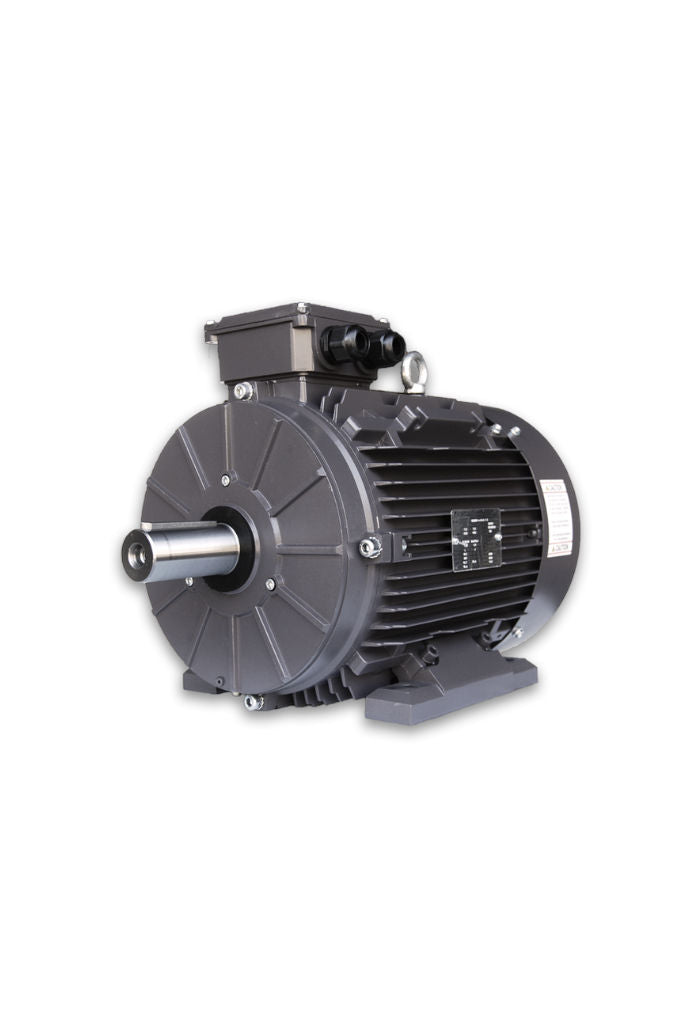

The Techtop XR3-AL-TF-132MB34-2-B-D-15 is a 15 HP, 3600 RPM metric IEC three phase motor in a 132M B34 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Voltage ratings: 230/460V at 60 Hz (IE4), 190/380V at 50 Hz (IE3), 200-208/400-416V at 60 Hz (IE3)
  • Efficiency: IE4
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B34 foot mount with B14 face, removable feet
  • Shaft grounding: Grounding brush
