Techtop XR3-AL-TF-112MB3-4-B-D-5.5 Metric IEC Three Phase Motor

SKU: XR3-AL-TF-112MB3-4-B-D-5.5
Call Us for Volume Discount Availability 704.519.4661
$1,117.00
  • SKU XR3-AL-TF-112MB3-4-B-D-5.5
  • Motor Group Metric IEC Three Phase
  • HP 5.5
  • Voltage 230/460
  • RPM 1800
  • Frame Size 112MB3
  • Enclosure Type TEFC

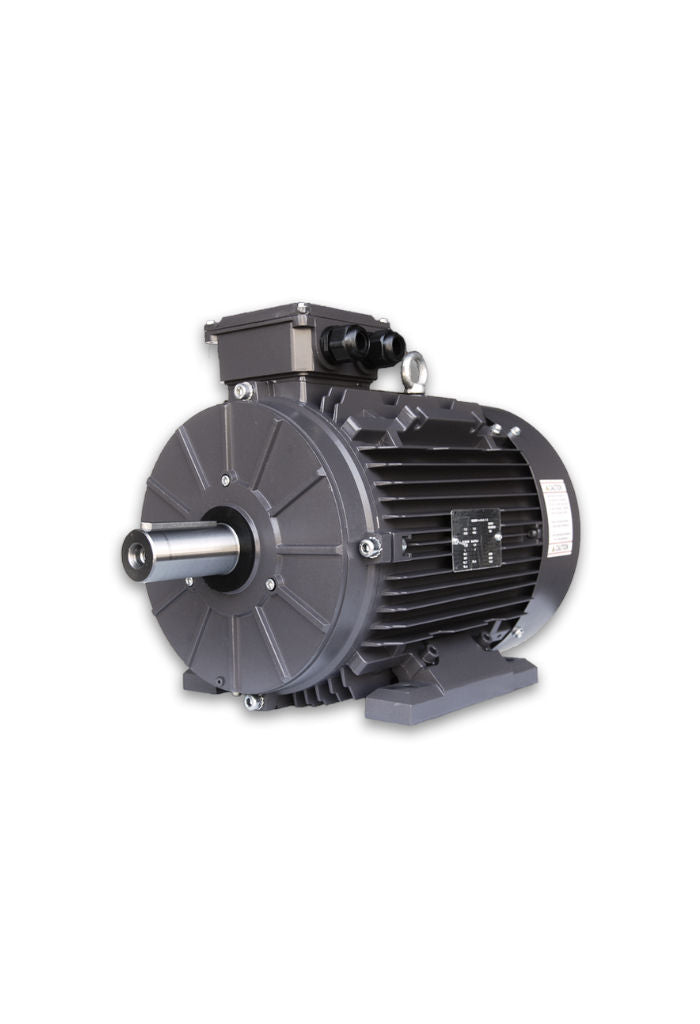

The Techtop XR3-AL-TF-112MB3-4-B-D-5.5 is a 5.5 HP, 1800 RPM metric IEC three phase motor in a 112M B3 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Voltage ratings: 230/460V at 60 Hz (IE4), 190/380V at 50 Hz (IE3), 200-208/400-416V at 60 Hz (IE3)
  • Efficiency: IE4
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B3 foot mount, removable feet
  • Shaft grounding: Grounding brush
