Techtop PC3-CI-TF-364T-4-BR-D-60 Phase Converter Motor

SKU: PC3-CI-TF-364T-4-BR-D-60
Call Us for Volume Discount Availability 704.519.4661
$4,528.00
  • SKU PC3-CI-TF-364T-4-BR-D-60
  • Motor Group Phase Converter
  • HP 60
  • Voltage 230/460
  • RPM 1800
  • Frame Size 364T
  • Enclosure Type TEFC

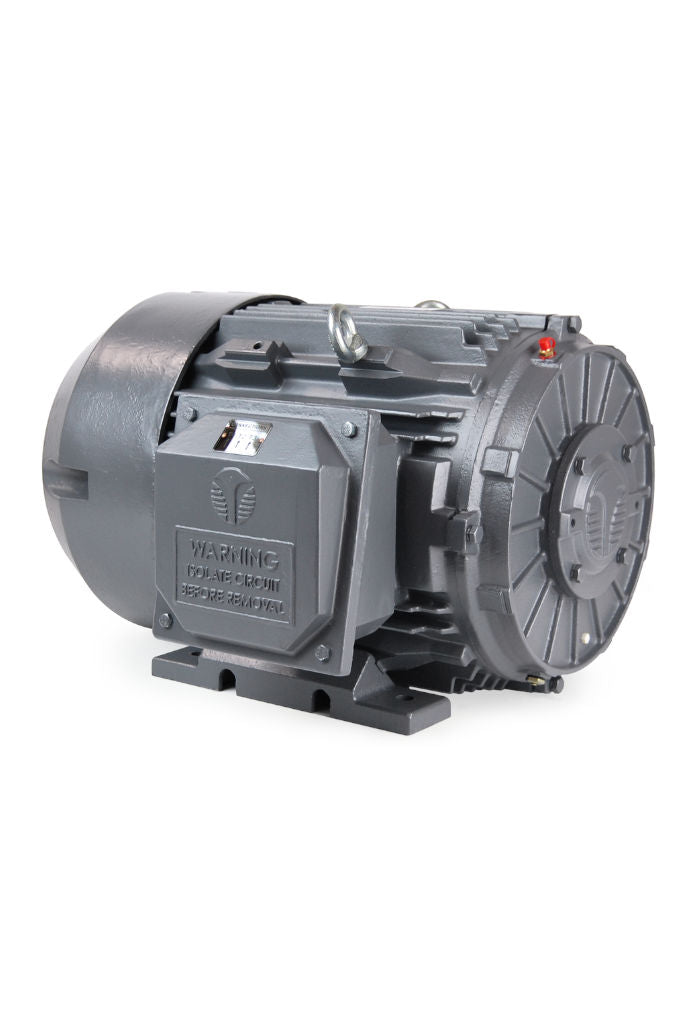

The Techtop PC3-CI-TF-364T-4-BR-D-60 is a 60 HP, 1800 RPM phase converter motor in a 364T frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Rated voltage: 230/460V at 60 Hz
  • Efficiency: EPAct
  • Construction: Cast iron
  • Leads: 12 lead wires
  • Shaft: No output shaft (rotary phase converter idler motor)
