Techtop PC3-CI-TF-284T-4-BR-D-25 Phase Converter Motor

SKU: PC3-CI-TF-284T-4-BR-D-25
Call Us for Volume Discount Availability 704.519.4661
$1,972.00
  • SKU PC3-CI-TF-284T-4-BR-D-25
  • Motor Group Phase Converter
  • HP 25
  • Voltage 230/460
  • RPM 1800
  • Frame Size 284T
  • Enclosure Type TEFC

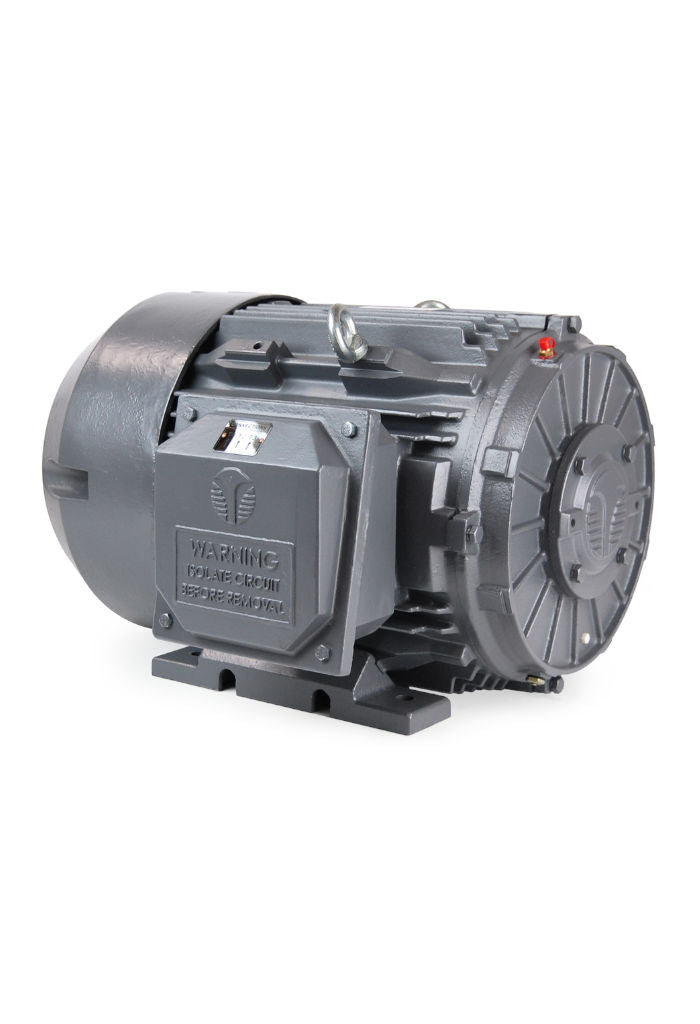

The Techtop PC3-CI-TF-284T-4-BR-D-25 is a 25 HP, 1800 RPM phase converter motor in a 284T frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Rated voltage: 230/460V at 60 Hz
  • Efficiency: EPAct
  • Construction: Cast iron
  • Leads: 12 lead wires
  • Shaft: No output shaft (rotary phase converter idler motor)
