Techtop GR3-CI-TF-143TC-2-B-D-1 Three Phase Cast Iron Motor

SKU: GR3-CI-TF-143TC-2-B-D-1
Call Us for Volume Discount Availability 704.519.4661
$474.00
  • SKU GR3-CI-TF-143TC-2-B-D-1
  • Motor Group Three Phase Cast Iron
  • HP 1
  • Voltage 230/460
  • RPM 3600
  • Frame Size 143TC
  • Enclosure Type TEFC

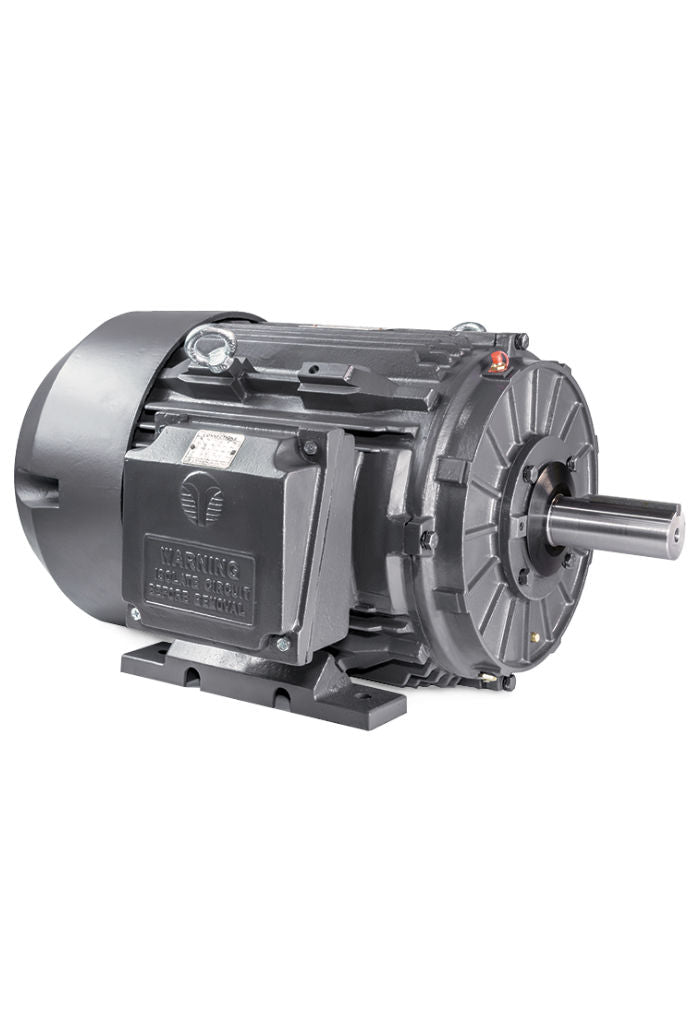

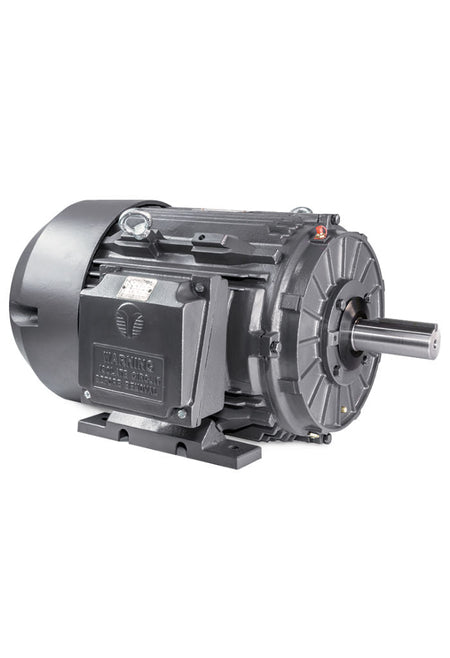

The Techtop GR3-CI-TF-143TC-2-B-D-1 is a 1 HP, 3600 RPM three phase cast iron motor in a 143TC frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Rated voltage: 230/460V at 60 Hz, usable at 208V
  • Efficiency: Premium efficiency
  • Bearings: Ball bearings
  • Mounting: NEMA C face, removable feet
