Techtop GR3-AL-TF-90LB34-2-B-D-3 Metric IEC Three Phase Motor

SKU: GR3-AL-TF-90LB34-2-B-D-3
Call Us for Volume Discount Availability 704.519.4661
$688.00
  • SKU GR3-AL-TF-90LB34-2-B-D-3
  • Motor Group Metric IEC Three Phase
  • HP 3
  • Voltage 230/460
  • RPM 3600
  • Frame Size 90LB34
  • Enclosure Type TEFC

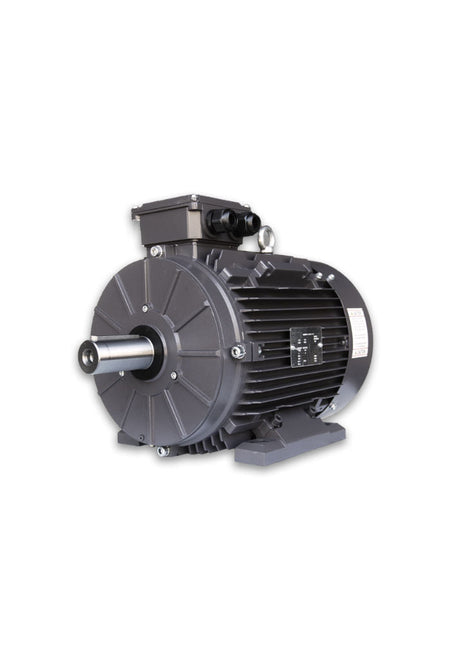

The Techtop GR3-AL-TF-90LB34-2-B-D-3 is a 3 HP, 3600 RPM metric IEC three phase motor in a 90L B34 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Rated voltage: 230/460V at 60 Hz
  • Efficiency: IE3
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B34 foot mount with B14 face, removable feet
