Techtop GR3-AL-TF-71B34-4-B-D-.5 Metric IEC Three Phase Motor

SKU: GR3-AL-TF-71B34-4-B-D-.5
Call Us for Volume Discount Availability 704.519.4661
$399.00
  • SKU GR3-AL-TF-71B34-4-B-D-.5
  • Motor Group Metric IEC Three Phase
  • HP 0.5
  • Voltage 230/460
  • RPM 1800
  • Frame Size 71B34
  • Enclosure Type TEFC

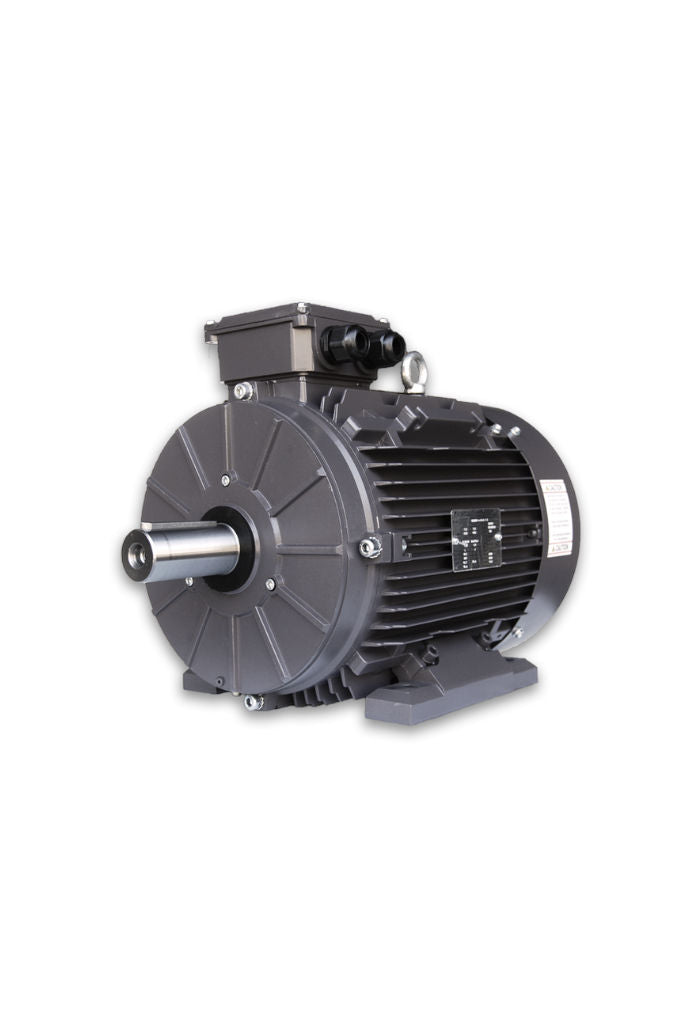

The Techtop GR3-AL-TF-71B34-4-B-D-.5 is a 1/2 HP, 1800 RPM metric IEC three phase motor in a 71 B34 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Rated voltage: 230/460V at 60 Hz
  • Efficiency: IE3
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B34 foot mount with B14 face, removable feet
  • Techtop reference code: TXA712-4
