Techtop GR3-AL-TF-71B34-2-B-D-.75-BRK IEC Brake Motor

SKU: GR3-AL-TF-71B34-2-B-D-.75-BRK
Call Us for Volume Discount Availability 704.519.4661
$800.00
  • SKU GR3-AL-TF-71B34-2-B-D-.75-BRK
  • Motor Group Brake Motor-IEC
  • HP 0.75
  • Voltage 230/460
  • RPM 3600
  • Frame Size 71B34
  • Enclosure Type TEFC

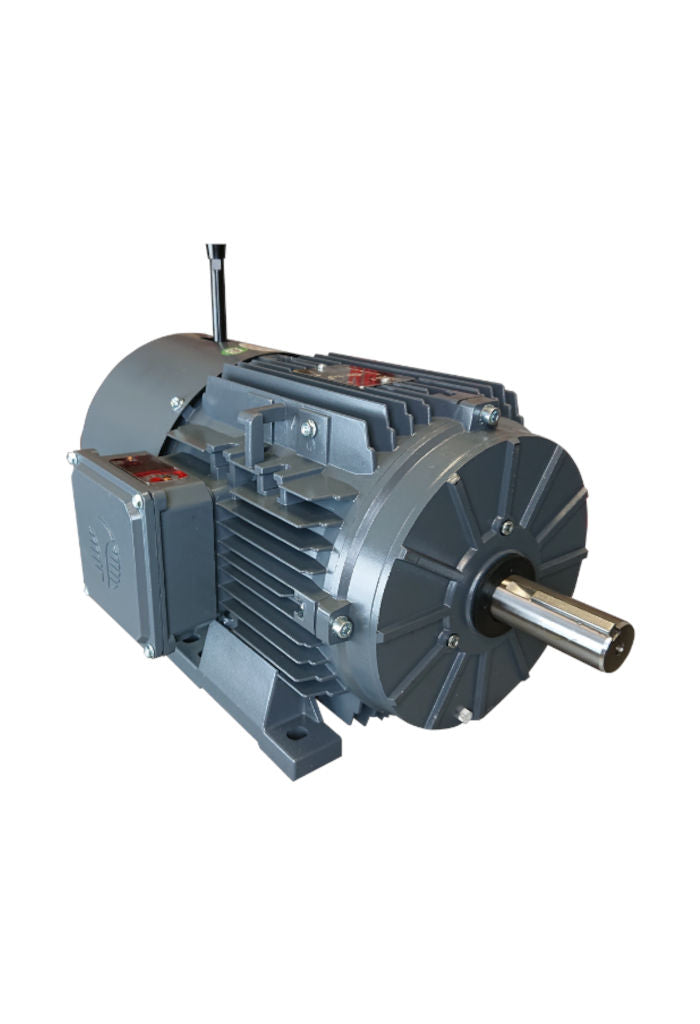

The Techtop GR3-AL-TF-71B34-2-B-D-.75-BRK is a 3/4 HP, 3600 RPM three phase IEC brake motor in a 71 B34 frame with a totally enclosed fan cooled (TEFC) enclosure.

  • Rated voltage: 230/460V at 60 Hz
  • Efficiency: IE3
  • Construction: Aluminum
  • Bearings: Ball bearings
  • Mounting: IEC B34 foot mount with B14 face, removable feet
  • Techtop reference code: TXAB712-2
