RR-36-135-S-M-V Medium Duty Flange Output Rotary Actuator
Call Us for Volume Discount Availability 704.519.4661
Regular price
$2,180.00
Couldn't load pickup availability

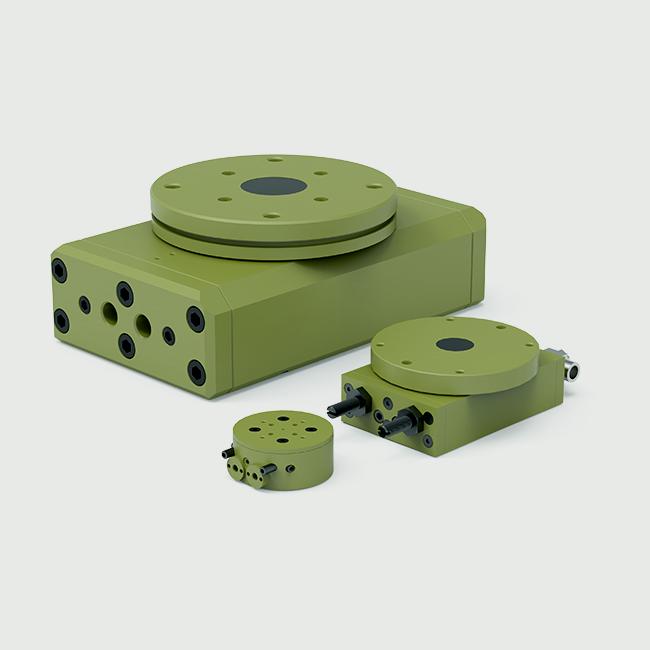

RR-36 Medium-Duty Rotary Actuator
Low-profile rotary actuator with higher capacity for tight spaces. Mount payloads directly to the flange, with preloaded bearings for high repeatability, zero-backlash dowel-pin location, adjustable hard-stops and shock absorbers, plus optional rotary manifold and mid-stop. Typical uses: precision rotary positioning, part orientation, load/unload. Features per datasheet p.7.
| Specification | Value |
|---|---|
| Maximum Payload | 3.6 kg [8.0 lb] |
| Maximum Payload Inertia | 0.00468 N·m·s² [0.0414 in-lb·s²] |
| Maximum Rotation | 180° |
| Maximum Torque (mid-stroke @ 100 psi / 7 bar) | 7.4 N·m [65 lb-in] |
| Maximum Torque (end-stroke @ 100 psi / 7 bar) | 3.7 N·m [32 lb-in] |
| Weight (base unit) | 1.3 kg [2.9 lb] |
| Weight adder — Mid-Position Stop | 0.18 kg [0.4 lb] |
| Weight adder — Rotary Manifold | 0.04 kg [0.1 lb] |
| Pressure Range | 3–7 bar [40–100 psi] |
| Ingress Protection | IP55 |
| Displacement (180°) | 33.6 cm³ [2.05 in³] |
| Displacement of Mid-Position Stop | 19.66 cm³ [1.200 in³] |
| Temperature Range (Buna-N seals) | 0~66 °C [32~150 °F] |
| Actuation Time (180° @ 100 psi) | 0.35 s |
| Actuation Time (90° @ 100 psi) | 0.20 s |
| End-stop Repeatability | ±0.02° |
| Mid-stop Repeatability | ±0.5° |
| End-stop Adjustability | 60° |
| Over-travel (each end) | 4° |
| Valve required to actuate | 4-way, 2-position |
| Valve required to actuate Mid-Stop | 3-way, 2-position |
Specs from datasheet p.8 (RR-36). :contentReference[oaicite:1]{index=1}
