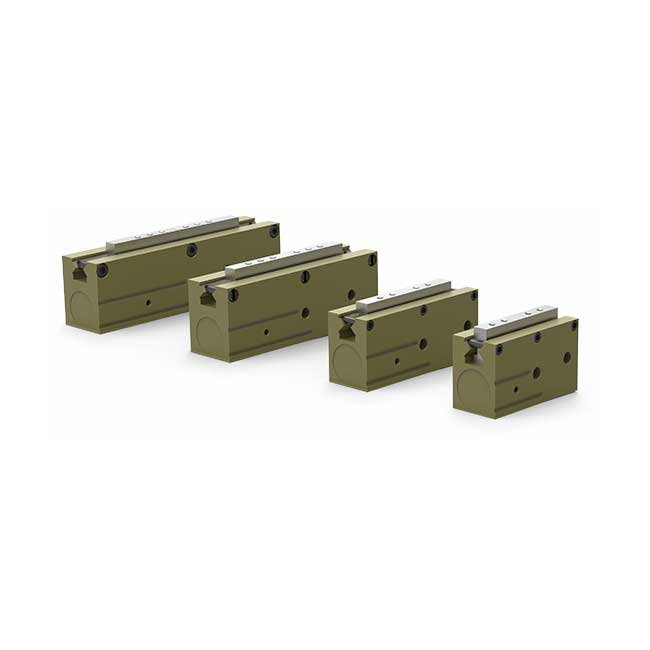

RPLC-1M 2 Jaw Clean Room Parallel Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$438.00
Couldn't load pickup availability
RPL-1 / RPLC-1 — Technical Specifications
| Specification | Value |
|---|---|
| Total Rated Grip Force F @ 100 psi [7 bar] | 116 N [26 lbf] |
| Total Stroke | 6.4 mm [0.25 in] |
| Weight | 0.07 kg [0.16 lb] |
| Pressure Range | 0.3–7 bar [5–100 psi] |
| Ingress Protection Class (IP) | IP33 (RPL) / IP64 (RPLC) |
| Displacement | 0.6 cm³ [0.038 in³] |
| Temperature Range (Buna-N seals) | −35° to +80° C [−30° to +180° F] |
| Temperature Range (Viton® seals) | −30° to +120° C [−20° to +250° F] |
| Actuation (open/close) | 0.10 s |
| Accuracy | ±0.05 mm [±0.002 in] |
| Repeatability | ±0.03 mm [±0.001 in] |
| Valve to Actuate | 4-way, 2-position |
RPL-1 — Loading Information
| Load | Static Capacity | Dynamic Capacity |
|---|---|---|
| Maximum Tensile (T) | 222 N [50 lbf] | 67 N [15 lbf] |
| Maximum Compressive (C) | 222 N [50 lbf] | 67 N [15 lbf] |
| Maximum Moment (Mx) | 3.4 Nm [30 in-lbs] | 1.1 Nm [10 in-lbs] |
| Maximum Moment (My) | 4.5 Nm [40 in-lbs] | 1.4 Nm [12 in-lbs] |
| Maximum Moment (Mz) | 3.4 Nm [30 in-lbs] | 1.1 Nm [10 in-lbs] |
